Toyota SPRINTER TRUENO — ARMREST & VISOR

67797RETAINER, DOOR TRIM ORNAMENT

main67797-12010×2i198905-199106

74215ABASE, DOOR ARMREST RH

main74215-12030i198705-198905

74216ABASE, DOOR ARMREST, LH

main74215-12030i198705-198905

74237BCAP, DOOR ARMREST BASE

main74237-12020-03×2i198905-199106

SHADOW GRAY,TRIM1#

main74237-12020-04×2i198705-198905

DARK BLUE,TRIM8#

74630CGRIP ASSY, DOOR ASSIST, RH

main74630-12020-03i198705-198905

SHADOW GRAY,TRIM1#

main74630-12020-04i198905-199106

DARK BLUE,TRIM8#

main74630-12040-03i198905-199106

main74630-12040-04i198905-199106

74640CGRIP ASSY, DOOR ASSIST, LH

main74640-12020-03i198705-198905

SHADOW GRAY,TRIM1#

main74640-12020-04i198705-198905

DARK BLUE,TRIM8#

main74640-12040-03i198905-199106

main74640-12040-04i198905-199106

74811BHANDLE, DOOR PULL

main74811-12050-03×2i198705-198905

SHADOW GRAY,TRIM1#

main74811-12050-04×2i198705-198905

DARK BLUE,TRIM8#

9015960227

main90159-60227

9016460018

main90164-60018

9016840048

main90168-40048

9018906010

main90189-06010

9018906018

main90189-06018

9356015020

main93560-15020

9356054016

main93560-54016

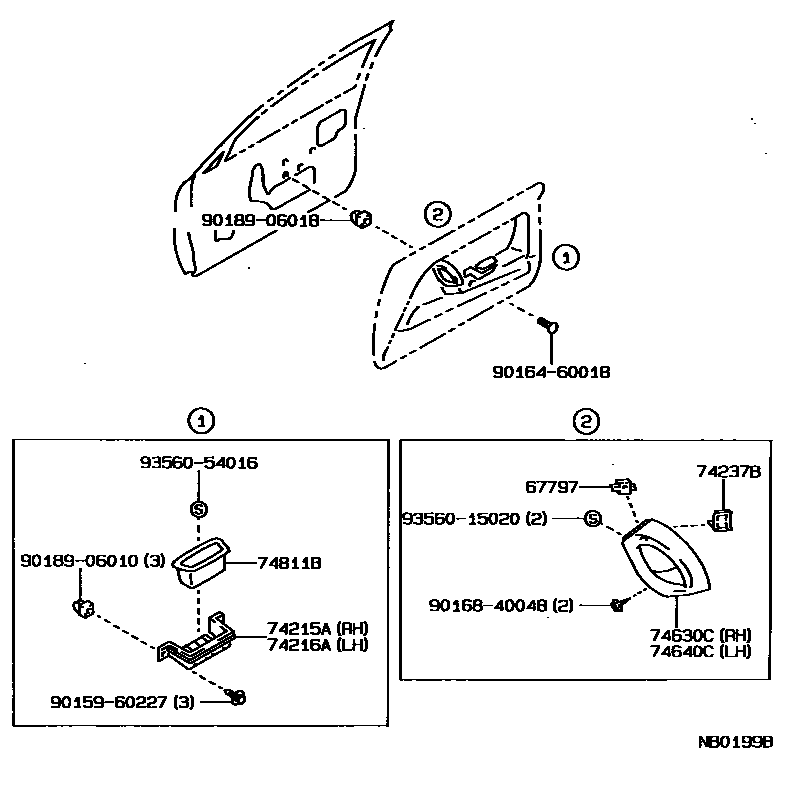

14 parts on this diagram · 3 diagrams in section

ARMREST & VISOR for Toyota SPRINTER TRUENO

This section contains 32 genuine Toyota parts for the ARMREST & VISOR system of the Toyota SPRINTER TRUENO. Key components include: RETAINER, DOOR TRIM ORNAMENT, BASE, DOOR ARMREST RH, BASE, DOOR ARMREST, LH, PANEL, FRONT ARMREST BASE, UPPER RH, PANEL, FRONT ARMREST BASE, UPPER LH.
