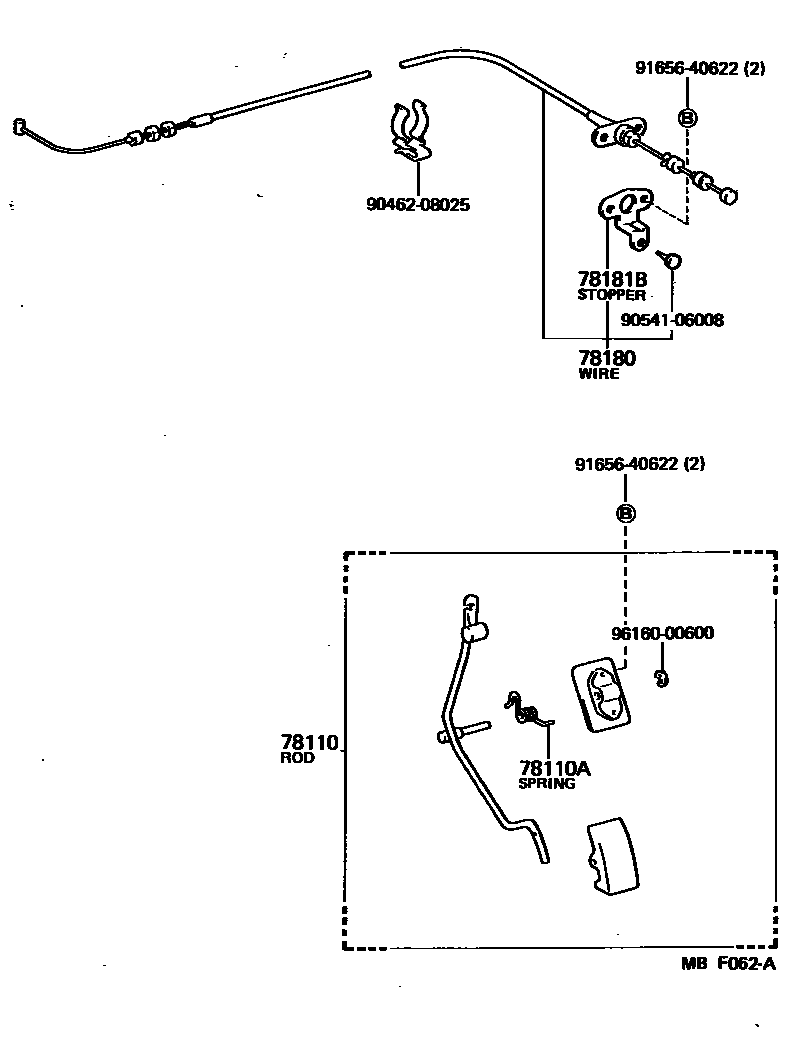

Toyota SPRINTER TRUENO — ACCELERATOR LINK
78110ROD ASSY, ACCELERATOR PEDAL
78110ASPRING (FOR ACCELERATOR PEDAL ROD)
78180WIRE ASSY, ACCELERATOR
78181BSTOPPER, ACCELERATOR IDLE ADJUSTING
9046208025
main90462-08025
9054106008
main90541-06008
9165640622
main91656-40622
9616000600
main96160-00600
8 parts on this diagram · 2 diagrams in section
ACCELERATOR LINK for Toyota SPRINTER TRUENO
This section contains 11 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota SPRINTER TRUENO. Key components include: ROD ASSY, ACCELERATOR PEDAL, SPRING (FOR ACCELERATOR PEDAL ROD), WIRE ASSY, ACCELERATOR, SPRING, TENSION (FOR ACCELERATOR WIRE), STOPPER, ACCELERATOR IDLE ADJUSTING.
