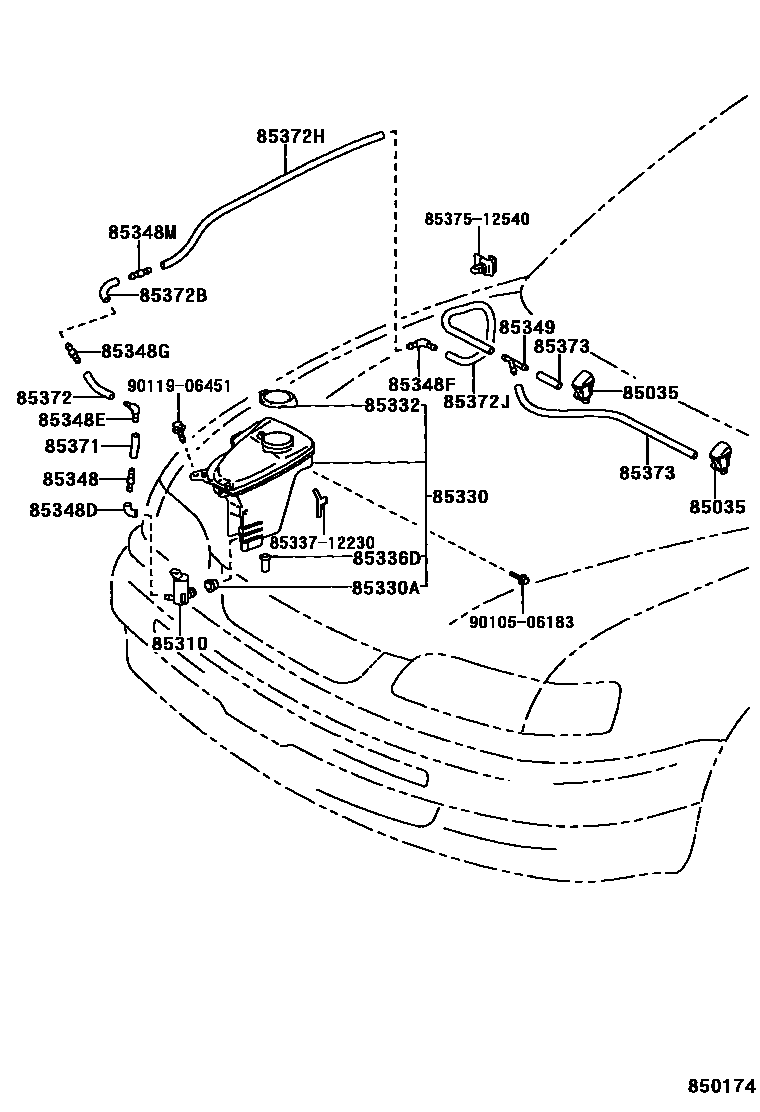

Toyota SPRINTER CARIB — WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330JAR ASSY, WINDSHIELD WASHER
85330ABUSH, WINDSHIELD WASHER JAR
85336DPACKING, WINDSHIELD WASHER JAR
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2
85348FJOINT, WINDSHIELD WASHER ELBOW, NO.3
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85348MJOINT, WINDSHIELD WASHER HOSE, NO.3
85349JOINT, WINDSHIELD WASHER HOSE, NO.1
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
8533712230CASE, LEVEL WARNING SWITCH
main85337-12230
8537512540HOSE, WINDSHIELD WASHER, NO.1(FOR LEVEL GAGE)
main85375-12540
9010506183
main90105-06183
9011906451
main90119-06451
23 parts on this diagram · 2 diagrams in section
WINDSHIELD WASHER for Toyota SPRINTER CARIB
This section contains 24 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota SPRINTER CARIB. Key components include: NOZZLE SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR, CAP, WINDSHIELD WASHER JAR.
