Toyota SPRINTER CARIB — WINDSHIELD WASHER

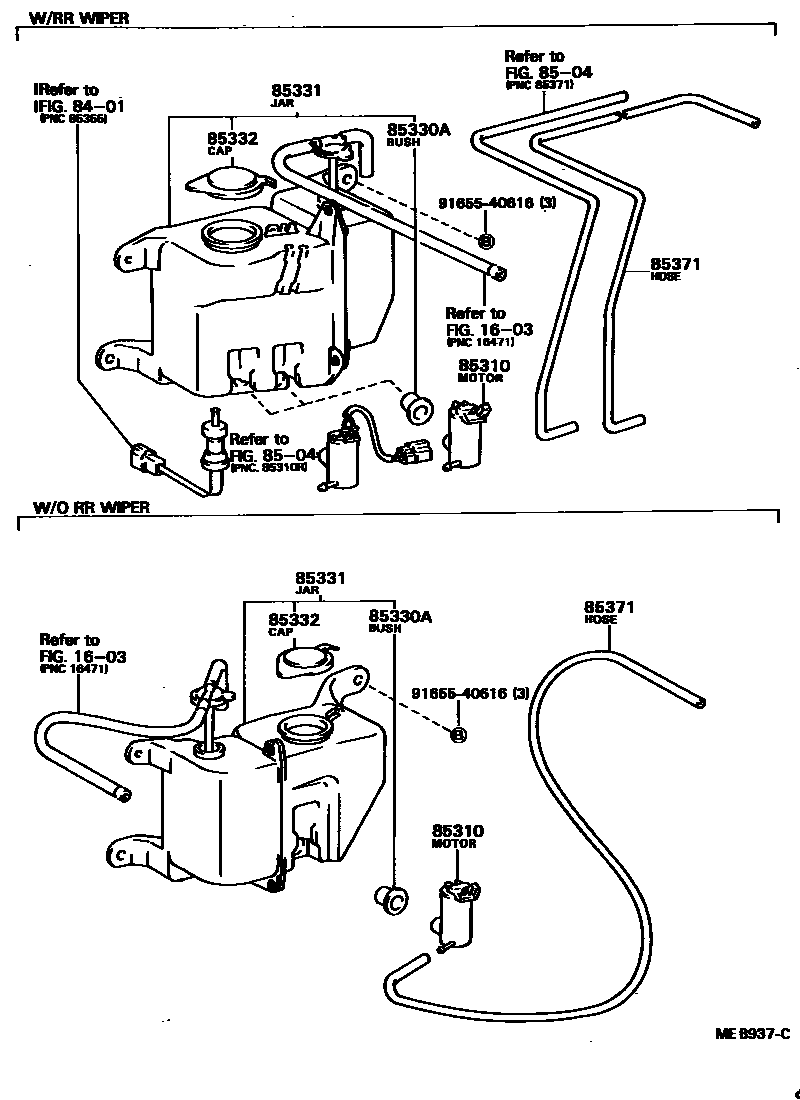

Parts diagram

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8504REAR WASHER

→ Go to FIG 85-04

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-22080i198208-198801

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089i198208-198801

85331JAR SUB-ASSY, WINDSHIELD WASHER

main85330-16100i198208-198605

main85330-16130i198208-198408

W/RR WIPER

main85331-16020i198208-198408

main85331-16151i198408-198801

main85331-16161i198408-198801

W/RR WIPER

main85331-16220i198408-198801

85332CAP, WINDSHIELD WASHER JAR

main85332-12320i198408-198801

W/RR WIPER

main85332-16010i198208-198408

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90446-06013i198208-198801

9165540616

main91655-40616

9 parts on this diagram · 3 diagrams in section

WINDSHIELD WASHER for Toyota SPRINTER CARIB

This section contains 15 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota SPRINTER CARIB. Key components include: RADIATOR & WATER OUTLET, SWITCH & RELAY & COMPUTER, REAR WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR.
