Toyota SPRINTER CARIB — SWITCH & RELAY & COMPUTER

0001 1����� & ��������� 0002 1����� & ��������� 0003 1�������� 0004 1������������ ���� 0005 1������������ ���� 0006 1������������ ���� 0007 1��� 0008 1��� 0009 1������������� 0010 1�������������-��(SRS�������) 0011 1���,���,��� & �������

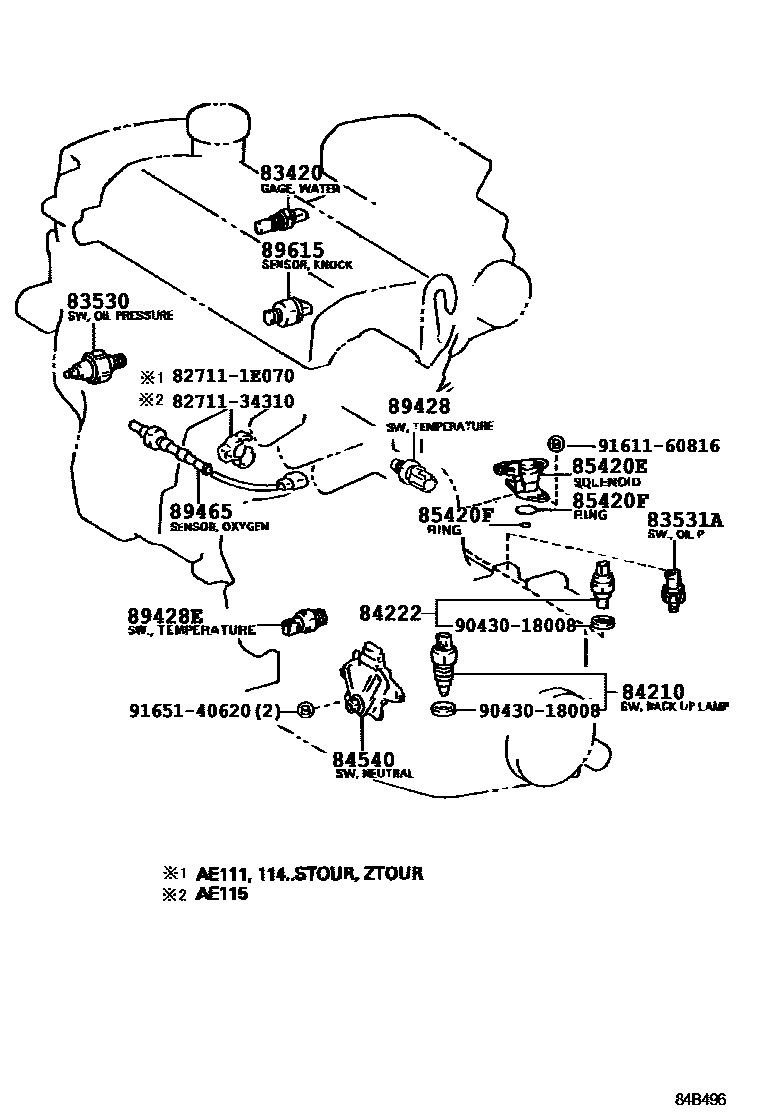

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-20040iAE11#199508-199704

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iAE11#..ROSSO,STOUR,VTOUR,ZTOUR199803-200207

main83530-28040iAE111..BZT199803-200207

main83530-30080iAE111..BZT199704-199803

main83530-30090iAE11#..STOUR,VTOUR,ZTOUR199704-199803

main83530-60020iAE11#..ROSSO,STOUR,VTOUR,ZTOUR199803-200207

main83530-60040iAE111..BZT199803-200207

83531ASWITCH, OIL PRESSURE

main83531-12010iAE114..4FC199508-199704

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iAE11#..5F199508-199704

sub84210-52050

84222SWITCH, TRANSFER INDICATOR, NO.1

main84222-12010iAE11#..5F199508-199605

84540SWITCH ASSY, NEUTRAL START

main84540-12200iAE111..4FC199605-199704

main84540-12210iAE111..4FC199704-200207

main84540-16050iAE114,115..4FC199508-199704

85420ESOLENOID ASSY, TRANSMISSION

main85420-12090iAE114,115..4FC199508-199704

85420FRING, O(FOR TRANSMISSION SOLENOID)

main90301-11001iAE114,115..4FC199704-200207

main90301-23001iAE114,115..4FC199508-199704

ID=23.5

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-12160iAE11#199508-199704

89428ESWITCH, TEMPERATURE, NO.2 (FOR TRANSMISSION)

main89428-12140iAE114,115..4FC199704-200207

89465SENSOR, OXYGEN

main89465-12280iAE111,114..STOUR,ZTOUR199508-199704

main89465-12400iAE115199508-199511

main89465-12490iAE115199511-199704

main89465-13020iAE111,114..ROSSO,STOUR,ZTOUR199704-200207

main89465-19685iAE111..BZT199704-200207

89615SENSOR, KNOCK CONTROL

main89615-12030iAE11#199704-199809

main89615-22030iAE11#199704-199909

main89615-22040iAE111..BZT199605-199704

main89615-22050iAE11#199809-200207

main89615-52010iAE11#199909-200207

827111E070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E070

8271134310WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-34310

9043018008

main90430-18008

9161160816

main91611-60816

9165140620

main91651-40620

17 parts on this diagram · 11 diagrams in section
