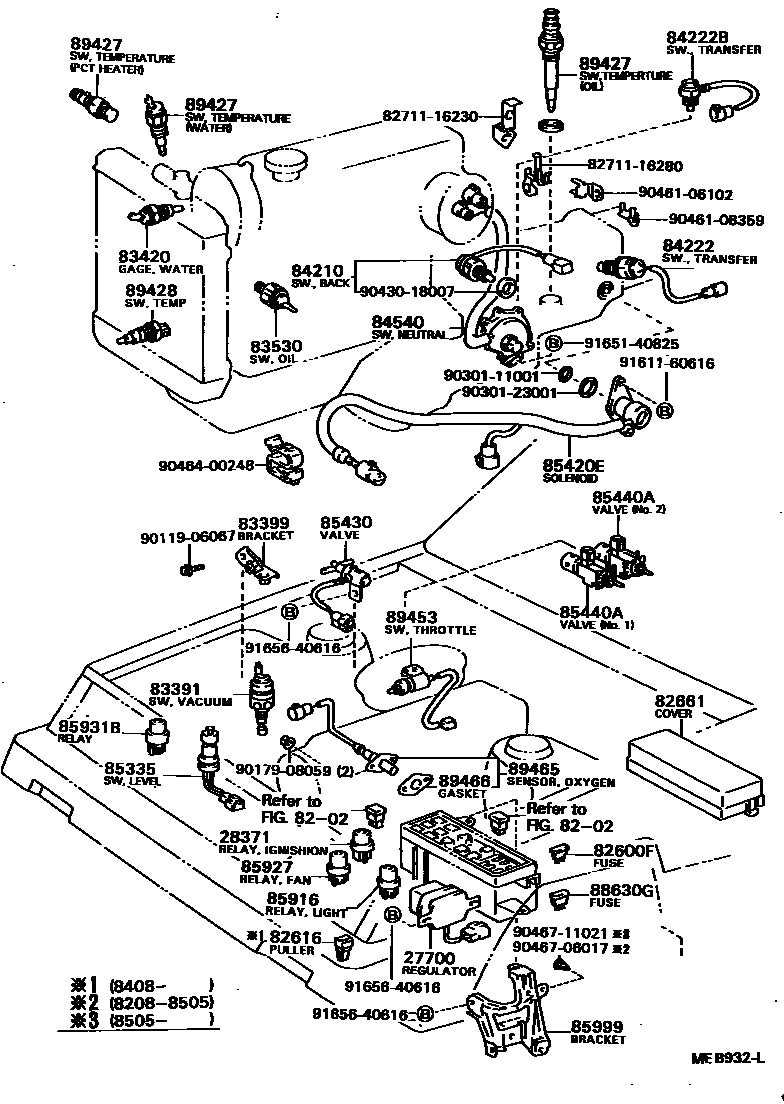

Toyota SPRINTER CARIB — SWITCH & RELAY & COMPUTER
27700REGULATOR ASSY, GENERATOR
28371RELAY, IGNITION, NO.1
8202
82600FFUSE, FUSE BLOCK
82616PULLER, FUSE
83391SWITCH, VACUUM
83399BRACKET, VACUUM SWITCH
83420GAGE ASSY, WATER TEMPERATURE SENDER
84210SWITCH ASSY, BACK-UP LAMP
84222SWITCH, TRANSFER INDICATOR, NO.1
84222BSWITCH, TRANSFER INDICATOR, NO.2
EL
84540SWITCH ASSY, NEUTRAL START
85335SWITCH ASSY, WASHER LEVEL WARNING
85420ESOLENOID ASSY, TRANSMISSION
85430VALVE, OUTER VENT CONTROL
85440ASOLENOID ASSY, FOUR WHEEL DRIVE CONTROL
NO.1
NO.2
85916RELAY, LIGHT CONTROL
TAIL LAMP
HEAD LAMP
85927RELAY, COOLING FAN
85931BRELAY, FUEL HEATER
85999BRACKET, COMBINATION RELAY
89427SWITCH, TEMPERATURE DETECT
WATER TEMPERATURE
PTC HEATER TEMPERATURE
OIL TEMPERATURE
89428SWITCH, TEMPERATURE DETECT, NO.2
89453SWITCH, THROTTLE POSITION (FOR T.C.S.)
8271116230WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-16230
8271116280WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-16280
9011906067
main90119-06067
9017908059
main90179-08059
9030111001
main90301-11001
9030123001
main90301-23001
9043018007
main90430-18007
9046106102
main90461-06102
9046108359
main90461-08359
9046400248
main90464-00248
9046706017
main90467-06017
9046711021
main90467-11021
9161160616
main91611-60616
9165140825
main91651-40825
9165640616
main91656-40616
43 parts on this diagram · 4 diagrams in section
