Toyota SPRINTER CARIB — STANDARD TOOL

09110JACK ASSY

main09111-12100i199009-199107

main09111-12130i199107-199402

09115ROD SUB-ASSY, JACK HANDLE

main09115-16030i199009-199508

09116LEVER, JACK HANDLE

main09116-16010i199009-199508

09120BAG, TOOL

main09120-12011i199009-199508

09130PLIERS

main99913-11500i199009-199508

09135DRIVER, SCREW

main99915-10700i199009-199508

09135ABIT, SCREW DRIVER

main09135-00012i199009-199508

09141SPANNER

main99914-10810i199009-199508

main99914-11214i199009-199508

09183WRENCH, WHEEL CAP

main09183-00010i199009-199508

09184STOPPER, WHEEL

main09184-00010i199009-199508

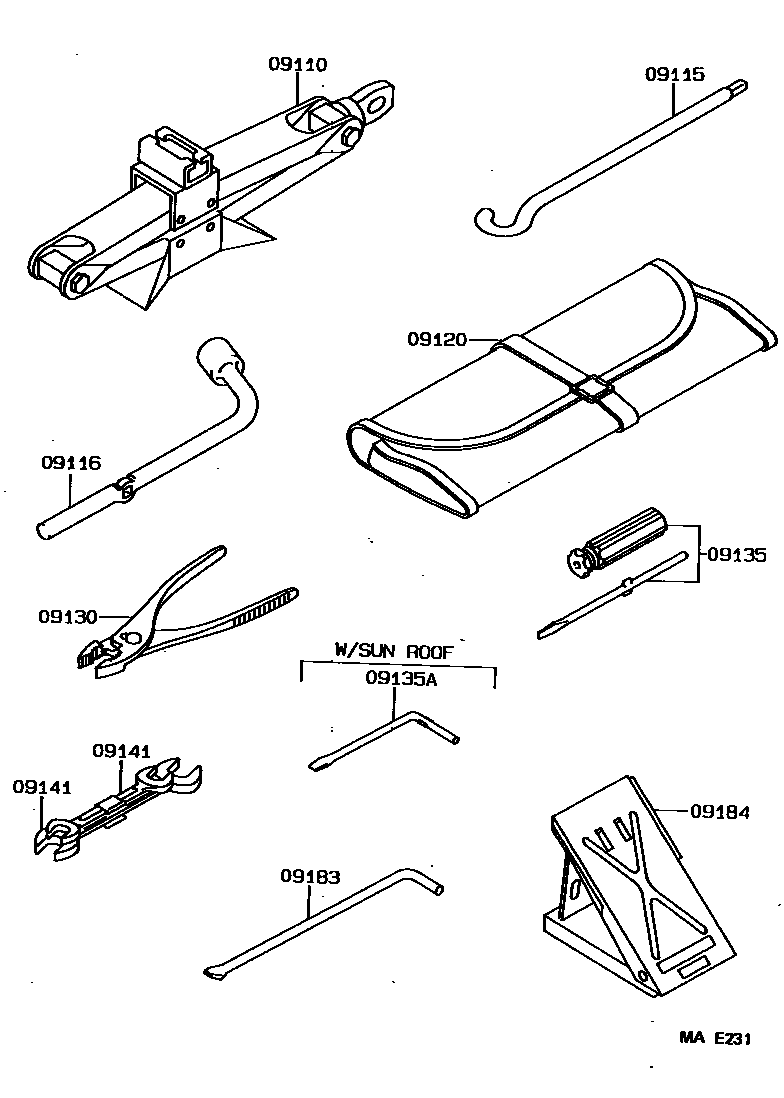

10 parts on this diagram · 1 diagram in section

STANDARD TOOL for Toyota SPRINTER CARIB

This section contains 10 genuine Toyota parts for the STANDARD TOOL system of the Toyota SPRINTER CARIB. Key components include: JACK ASSY, ROD SUB-ASSY, JACK HANDLE, LEVER, JACK HANDLE, BAG, TOOL, PLIERS.
