Toyota SPRINTER CARIB — STANDARD TOOL

09101TOOL SET, STANDARD W/O JACK

main09102-12074i198208-198605

09110JACK ASSY

main09111-16010i198507-198801

main09118-16010i198208-198507

09115ROD SUB-ASSY, JACK HANDLE

main09115-16020i198208-198801

09116LEVER, JACK HANDLE

main09116-16010i198208-198801

09120BAG, TOOL

main09120-10030i198605-198801

main09120-12011i198208-198605

09130PLIERS

main99913-11500i198208-198801

09135DRIVER, SCREW

main99915-10700i198208-198801

09135ABIT, SCREW DRIVER

main09135-00011i198208-198304

W/SUN ROOF

main09135-00012i198304-198801

W/SUN ROOF

09140SPANNER SET

main09140-12011i198208-198605

09141SPANNER

main99914-10810i198208-198801

main99914-11012i198208-198605

main99914-11214i198605-198801

main99914-11417i198208-198605

09155WRENCH, SPARK PLUG

main09155-44020i198208-198605

09183WRENCH, WHEEL CAP

main09183-00010i198605-198801

09184STOPPER, WHEEL

main09184-00010×2i198208-198801

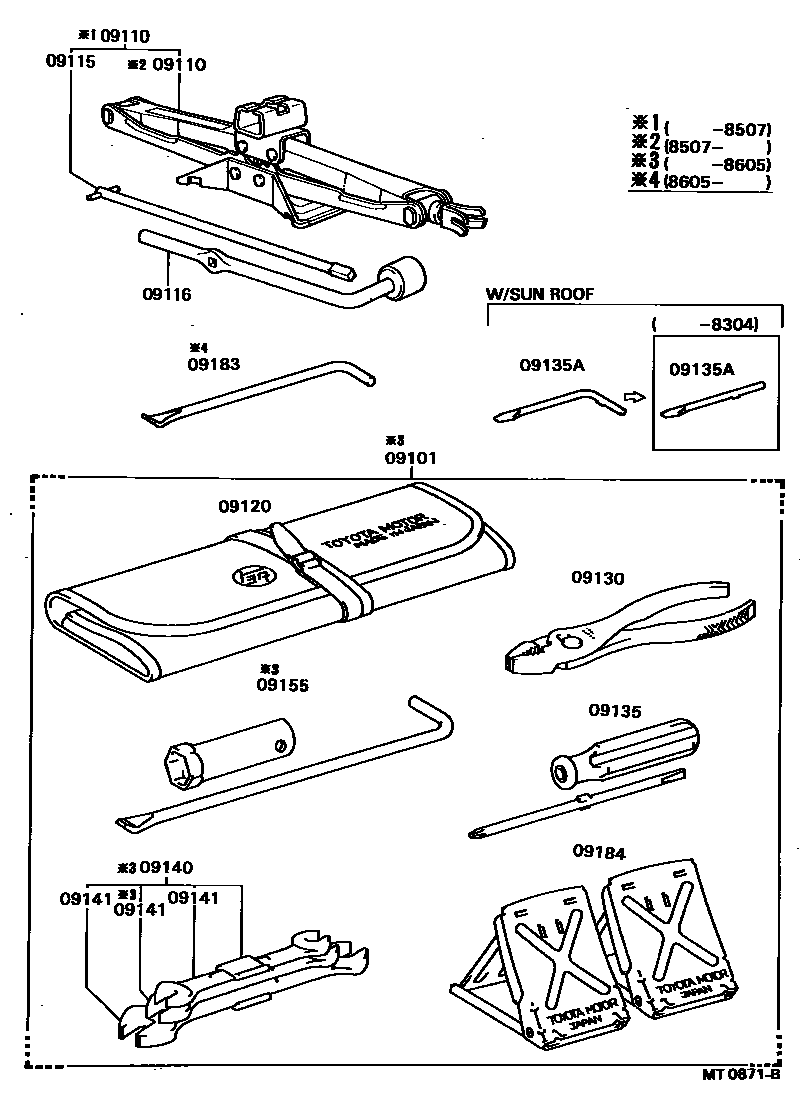

13 parts on this diagram · 1 diagram in section

STANDARD TOOL for Toyota SPRINTER CARIB

This section contains 13 genuine Toyota parts for the STANDARD TOOL system of the Toyota SPRINTER CARIB. Key components include: TOOL SET, STANDARD W/O JACK, JACK ASSY, ROD SUB-ASSY, JACK HANDLE, LEVER, JACK HANDLE, BAG, TOOL.
