EPC Data

Toyota SPRINTER CARIBSPEAKER

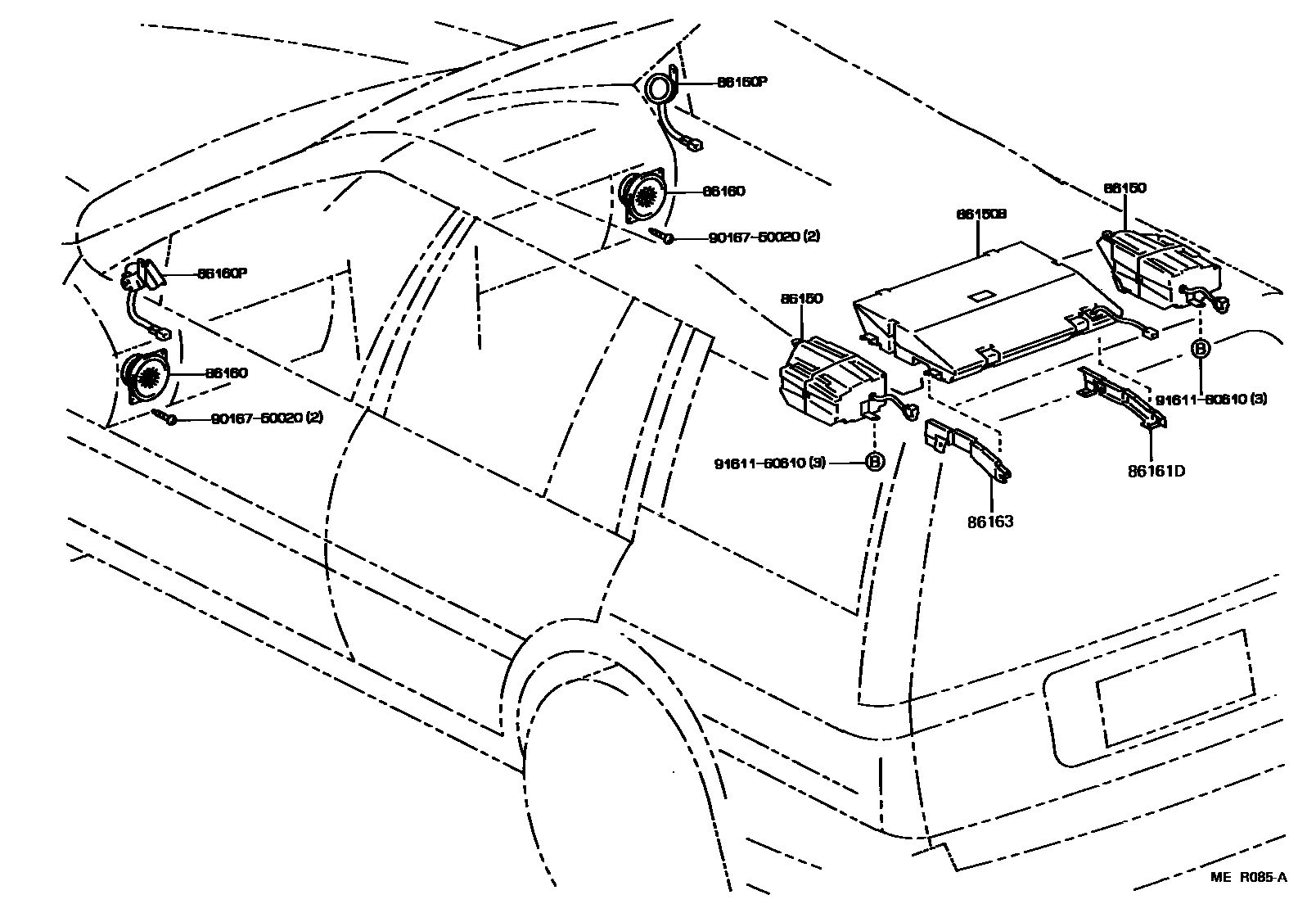

Parts diagram
86150SPEAKER ASSY, W/BOX, NO.1
main86150-12101i199009-199508
RR-RH
main86150-12111i199009-199508
RR-LH
86150BSPEAKER ASSY, W/BOX, NO.2
main86150-13050i199009-199508
86160SPEAKER ASSY, FRONT NO.1
main86160-12280i199009-199508
main86160-12290i199009-199508
main86160-13030×2i199009-199508
86160PSPEAKER ASSY, FRONT NO.2
main86160-13040i199009-199508
main86160-13050i199009-199508
86161DBRACKET, SPEAKER MOUNTING, NO.1
main86161-13010i199009-199508
86163BRACKET, SPEAKER, NO.2
main86163-13010i199009-199508
9016750020
9161160610

8 parts on this diagram · 1 diagram in section

SPEAKER for Toyota SPRINTER CARIB

This section contains 8 genuine Toyota parts for the SPEAKER system of the Toyota SPRINTER CARIB. Key components include: SPEAKER ASSY, W/BOX, NO.1, SPEAKER ASSY, W/BOX, NO.2, SPEAKER ASSY, FRONT NO.1, SPEAKER ASSY, FRONT NO.2, BRACKET, SPEAKER MOUNTING, NO.1.
