Toyota SPRINTER CARIB — SPEAKER

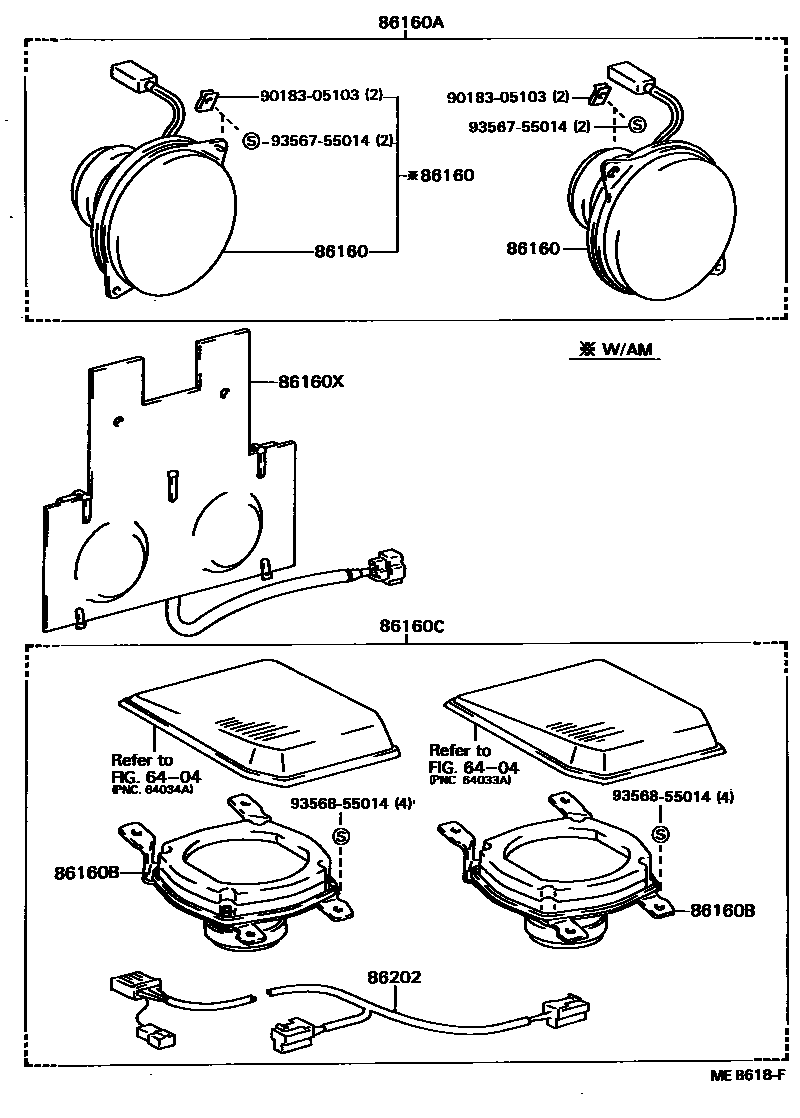

Parts diagram
6404DECK BOARD & DECK TRIM COVER
→ Go to FIG 64-04
86160SPEAKER ASSY, FRONT NO.1
main86160-19565i198208-198801
W/AM
main86160-32070×2i198208-198801
W/*18,*19,*20,TEN
main86160-32080×2i198208-198801
W/*18,*19,*20,MATSUSHITA
86160ASPEAKER SET, FRONT
main86160-39075i198208-198801
W/*18,*19,*20,MATSUSHITA
main86160-39085i198208-198801
W/*18,*19,*20,TEN
86160BSPEAKER ASSY, REAR
main86160-16040×2i198408-198511
main86160-16041×2i198511-198801
86160CSPEAKER SET, REAR
main86160-19525i198408-198605
DARK WINE
main86160-19815i198408-198605
GRAY
main86160-19825i198408-198605
BROWN
86160XTRANSDUCER, BODYSONIC
main86160-16110i198408-198801
86202WIRE, SPEAKER, NO.1
main86203-12150i198408-198605
9018305103
main90183-05103
9356755014
main93567-55014
9356855014
main93568-55014

10 parts on this diagram · 1 diagram in section

SPEAKER for Toyota SPRINTER CARIB

This section contains 10 genuine Toyota parts for the SPEAKER system of the Toyota SPRINTER CARIB. Key components include: DECK BOARD & DECK TRIM COVER, SPEAKER ASSY, FRONT NO.1, SPEAKER SET, FRONT, SPEAKER ASSY, REAR, SPEAKER SET, REAR.
