Toyota SPRINTER CARIB — MOUNTING

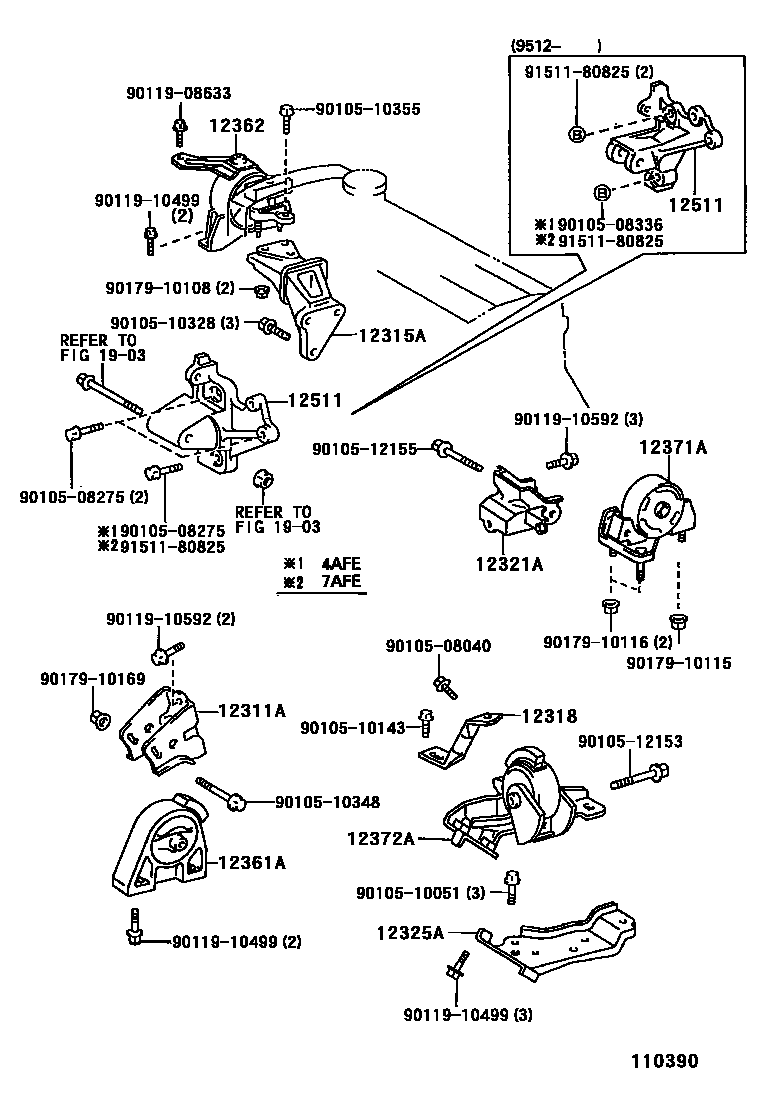

Parts diagram

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-15130i199605-199704

main12311-16090i199704-200207

main12311-16110i199508-199704

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-15070i199508-199704

main12315-15081i199704-200207

main12315-16070i199704-200207

12318STAY, ENGINE MOUNTING, LH

main12318-11050i199704-200207

main12318-15050i199605-199704

main12318-15080i199704-200207

main12318-16010i199605-199704

main12318-16040i199508-199704

main12318-16070i199508-199704

main12318-16110i199605-199704

12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)

main12321-15120i199704-200207

main12321-15140i199704-200207

main12321-16210i199605-199704

main12321-16220i199605-199704

main12321-16240i199508-199704

main12321-16250i199508-199704

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-15080i199704-200207

main12325-15100i199704-200207

main12325-16120i199605-199704

main12325-16140i199508-199704

main12325-16160i199508-199704

main12325-16170i199605-199704

main12325-16240i199704-200207

main12325-16250i199704-200207

main12325-16270i199704-200207

main12325-16280i199704-200207

12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12361-15170i199704-199801

main12361-15171i199801-200207

main12361-15180i199605-199704

main12361-15181i199801-200207

main12361-16270i199508-199704

12362INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12305-15040i199704-200207

main12305-16100i199605-199704

main12305-16110i199508-199704

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-15240i199605-199612

main12371-15241i199612-199704

main12371-16250i199508-199704

main12371-64210i199704-200207

main12371-64220i199508-199704

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-15171i199605-199704

main12372-15181i199605-199704

main12372-15200i199704-200207

main12372-15220i199704-200207

main12372-15230i199704-200207

main12372-16210i199605-199704

main12372-16230i199605-199704

main12372-16251i199508-199704

main12372-16260i199508-199704

main12372-16430i199704-200207

12511BRACKET, ALTERNATOR, NO.1

main12511-15050i199508-199512

main12511-15060i199704-200207

main12511-16080i199605-199704

main12511-16100i199508-199512

main12511-16110i199512-199704

1903ALTERNATOR

→ Go to FIG 19-03

9010508040

main90105-08040

9010508275

main90105-08275

9010508336

main90105-08336

9010510051

main90105-10051

9010510143

main90105-10143

9010510328

main90105-10328

9010510348

main90105-10348

9010510355

main90105-10355

9010512153

main90105-12153

9010512155

main90105-12155

9011908633

main90119-08633

9011910499

main90119-10499

9011910592

main90119-10592

9017910108

main90179-10108

9017910115

main90179-10115

9017910116

main90179-10116

9017910169

main90179-10169

9151180825

main91511-80825

29 parts on this diagram · 7 diagrams in section

MOUNTING for Toyota SPRINTER CARIB

This section contains 48 genuine Toyota parts for the MOUNTING system of the Toyota SPRINTER CARIB. Key components include: BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE), BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE), STAY, ENGINE MOUNTING, RH, STAY, ENGINE MOUNTING, LH, BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE).
