Toyota SPRINTER CARIB — MOUNTING

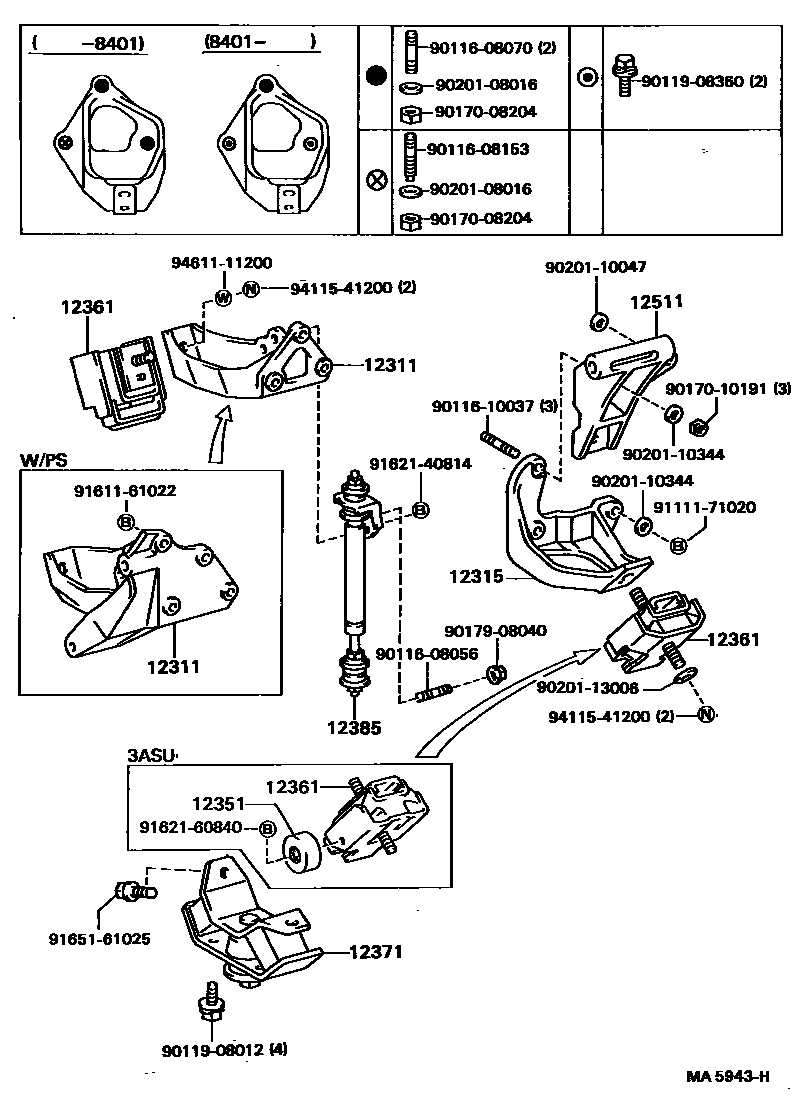

Parts diagram

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-15050i198208-198605

main12311-15060i198208-198801

W/POWER STEERING

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-15030i198208-198801

12351DAMPER, ENGINE MOUNTING

main12351-15010×2i198408-198801

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-15050×2i198208-198801

main12361-15130×2i198408-198801

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-15050i198310-198801

main12371-15070i198208-198801

12385ABSORBER, ENGINE MOUNTING, NO.1

main12307-15010i198208-198801

12511BRACKET, ALTERNATOR, NO.1

main12511-15011i198208-198801

9011608056

main90116-08056

9011608070

main90116-08070

9011608153

main90116-08153

9011610037

main90116-10037

9011908012

main90119-08012

9011908360

main90119-08360

9017008204

main90170-08204

9017010191

main90170-10191

9017908040

main90179-08040

9020108016

main90201-08016

9020110047

main90201-10047

9020110344

main90201-10344

9020113006

main90201-13006

9111171020

main91111-71020

9161161022

main91611-61022

9162140814

main91621-40814

9162160840

main91621-60840

9165161025

main91651-61025

9411541200

main94115-41200

9461111200

main94611-11200

27 parts on this diagram · 1 diagram in section

MOUNTING for Toyota SPRINTER CARIB

This section contains 27 genuine Toyota parts for the MOUNTING system of the Toyota SPRINTER CARIB. Key components include: BRACKET, ENGINE MOUNTING, FRONT NO.1 RH, BRACKET, ENGINE MOUNTING, FRONT NO.1 LH, DAMPER, ENGINE MOUNTING, INSULATOR, ENGINE MOUNTING, FRONT, INSULATOR, ENGINE MOUNTING, REAR NO.1.
