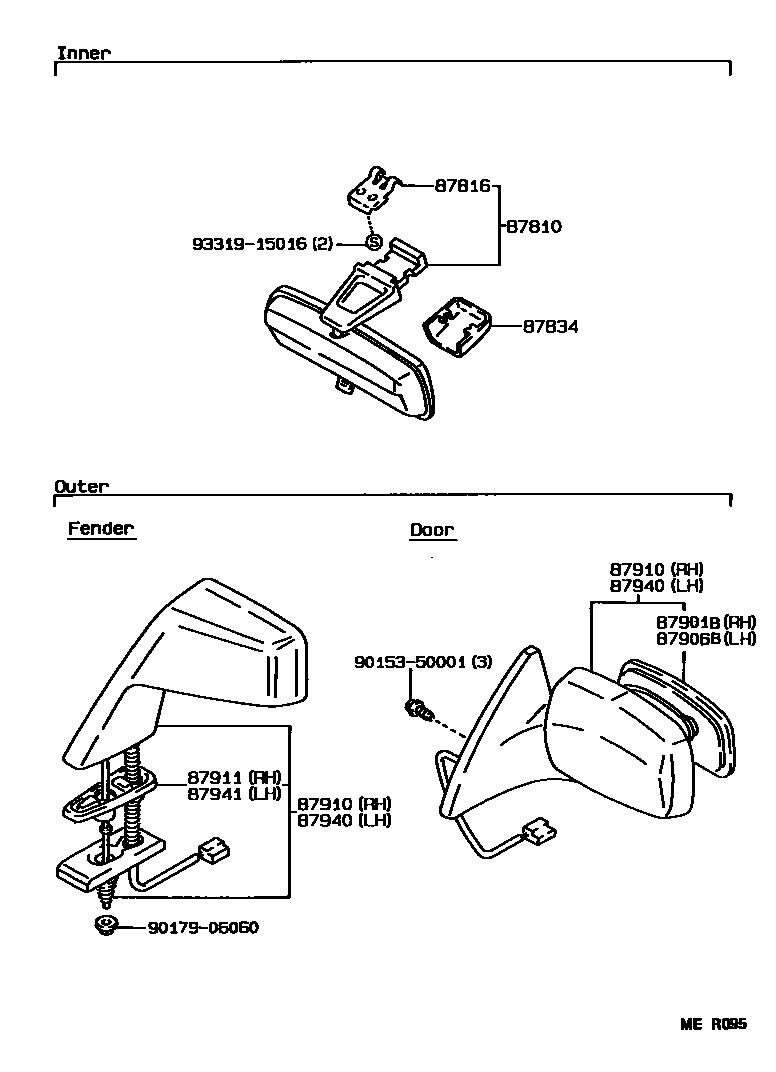

Toyota SPRINTER CARIB — MIRROR
87810MIRROR ASSY, INNER REAR VIEW
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
SHADOW GRAY,TRIM1#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
87816SPRING, INNER REAR VIEW MIRROR
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
87910MIRROR ASSY, OUTER REAR VIEW, RH
10TH ANNIVERSARY,DEEP TURQUOISE M.,25W
SUPER WHITE,040
BLACK METALLIC,22S
RED MICA,20G
GOLD METALLIC,23S
GRAYISH GREEN M.,6K6
LIGHT BLUE METALLIC,26T
RED MICA M.,27T
GRAYISH GREEN M.,6M3
DARK GREEN M.,20W
DEEP TURQUOISE M.,21W
87911GASKET, OUTER REAR VIEW MIRROR, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
SUPER WHITE,040
BLACK METALLIC,22S
RED MICA,20G
GOLD METALLIC,23S
GRAYIS GREEN M.,6K6
LIGHT BLUE METALLIC,25M
RED MICA M.,27T
GRAYISH GREEN M.,6M3
DARK GREEN M.,20W
DEEP TURQUOISE M.,21W
87941GASKET, OUTER REAR VIEW MIRROR, LH
9015350001
main90153-50001
9017906060
main90179-06060
9331915016
main93319-15016
12 parts on this diagram · 1 diagram in section
MIRROR for Toyota SPRINTER CARIB
This section contains 12 genuine Toyota parts for the MIRROR system of the Toyota SPRINTER CARIB. Key components include: MIRROR ASSY, INNER REAR VIEW, SPRING, INNER REAR VIEW MIRROR, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR SUB-ASSY, OUTER REAR VIEW, RH, MIRROR SUB-ASSY, OUTER REAR VIEW, LH.
