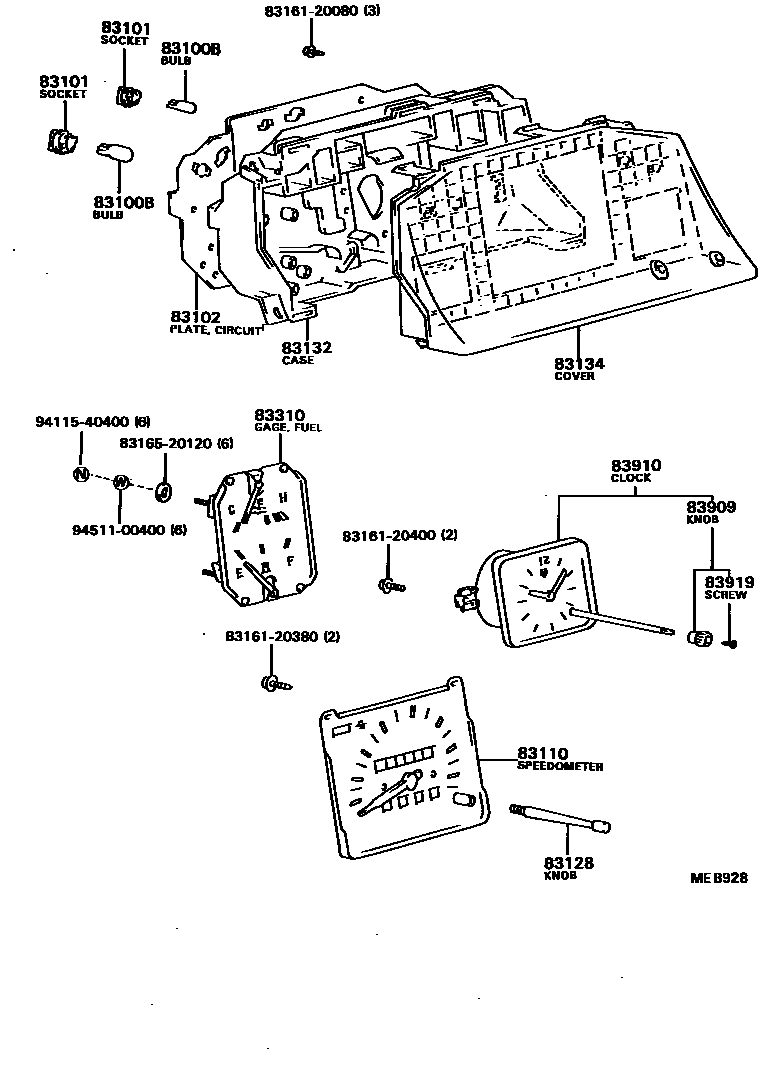

Toyota SPRINTER CARIB — METER

83100BBULB, COMBINATION METER, NO.1

main83109-14030×3i198309-198408

main83109-24030×3i198310-198408

main83109-28010×3i198408-198801

main90981-11018×4i198208-198801

main99132-12034×8i198208-198801

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030×3i198208-198801

12V 3.4W

main83101-14040×4i198208-198801

12V 1.4W

main83101-20040×8i198208-198801

12V 3.4W

main83101-28010×3i198408-198605

12V 3.4W,W/GREEN CAP

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83247-16320i198208-198408

main83247-16360i198408-198801

main83247-16380i198408-198801

main83247-16570i198301-198408

W/TACHOMETER

main83247-1G070i198208-198301

main83247-1G130i198310-198408

W/TACHOMETER

main83247-1G390i198408-198605

W/TACHOMETER

main83247-1G410i198408-198605

W/TACHOMETER

main83247-1G590i198605-198801

W/TACHOMETER

main83247-1G610i198605-198801

W/TACHOMETER

main83247-1G630i198605-198801

TORURING SPECIAL

main83247-1G650i198605-198801

TORURING SPECIAL

83110SPEEDOMETER ASSY

main83110-16520i198310-198408

W/TACHOMETER

main83110-16530i198208-198408

main83110-16550i198208-198408

W/TACHOMETER

main83110-16600i198310-198408

main83110-16660i198408-198605

W/TACHOMETER

main83110-16680i198408-198605

main83110-16681i198605-198801

main83110-16700i198408-198801

main83110-16711i198605-198801

W/TACHOMETER

main83110-1G090i198605-198801

TORURING SPECIAL

83128KNOB, TRIP COUNTER

main83128-16080i198408-198801

main83128-16090i198208-198801

W/TACHOMETER

main83128-20710i198208-198408

83132CASE, COMBINATION METER

main83132-16180i198208-198801

main83132-16470i198301-198408

W/TACHOMETER

main83132-16610i198208-198301

main83132-16650i198310-198605

W/TACHOMETER

main83132-16710i198408-198605

W/TACHOMETER

main83132-1G050i198605-198801

TORURING SPECIAL

main83132-1G070i198605-198801

TORURING SPECIAL

83134COVER, COMBINATION METER, NO.1

main83133-16450i198301-198309

main83133-16490i198208-198301

main83133-16590i198310-198408

W/TACHOMETER

main83133-16650i198309-198408

W/TACHOMETER

main83133-16770i198408-198605

W/TACHOMETER

main83133-16790i198408-198605

W/TACHOMETER

main83133-16830i198605-198801

W/TACHOMETER

main83134-16100i198208-198408

main83134-16160i198310-198408

main83134-16200i198408-198801

main83134-16240i198408-198801

83310GAGE ASSY, FUEL RECEIVER

main83243-16080i198208-198801

main83243-16430i198208-198408

W/TACHOMETER

main83243-16470i198408-198605

W/TACHOMETER

main83243-16490i198408-198605

main83243-16630i198605-198801

RV SPECIAL

main83243-16650i198605-198801

83909KNOB, CLOCK

main83909-14012i198208-198801

ANALOGUE CLOCK

main83909-16050i198208-198801

DIGITAL CLOCK

83910CLOCK ASSY

main83910-16060i198208-198801

ANALOGUE CLOCK

main83910-16101i198408-198801

DIGITAL CLOCK

main83910-16110i198208-198301

DIGITAL CLOCK

main83910-16111i198408-198801

DIGITAL CLOCK

83919SCREW, CLOCK

main83919-12230i198208-198801

DIGITAL CLOCK

main83919-14012i198208-198801

ANALOGUE CLOCK

8316120080CASE, COMBINATION METER MIRROR, NO.1

main83161-20080

8316120380CASE, COMBINATION METER MIRROR, NO.1

main83161-20380

8316120400CASE, COMBINATION METER MIRROR, NO.1

main83161-20400

8316520120MIRROR, COMBINATION METER, NO.2

main83165-20120

9411540400

main94115-40400

9451100400

main94511-00400

17 parts on this diagram · 4 diagrams in section

METER for Toyota SPRINTER CARIB

This section contains 40 genuine Toyota parts for the METER system of the Toyota SPRINTER CARIB. Key components include: INSTRUMENT PANEL & GLOVE COMPARTMENT, BULB, COMBINATION METER, NO.1, SOCKET SUB-ASSY, COMBINATION METER BULB, PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1, SPEEDOMETER ASSY.
