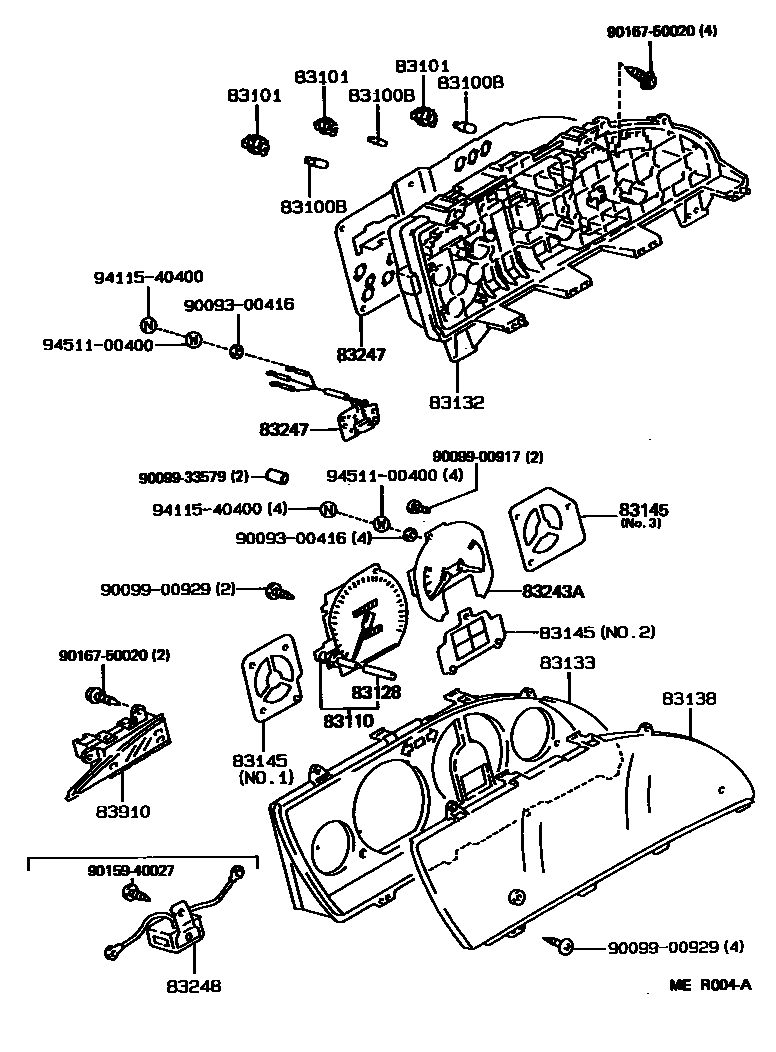

Toyota SPRINTER CARIB — METER
83100BBULB, COMBINATION METER, NO.1
83101SOCKET SUB-ASSY, COMBINATION METER BULB
12V 3.4W BULB
12V 1.4W BULB
83110SPEEDOMETER ASSY
83128KNOB, TRIP COUNTER
83132CASE, COMBINATION METER
83133PLATE, COMBINATION METER, NO.1
83138GLASS, SPEEDOMETER
83145LENS, METER, NO.1
83243AGAUGE SUB-ASSY, FUEL RECEIVER
83247PLATE, METER CIRCUIT
AT OIL TEMP
AT OIL TEMP
DIFF LOCK
AT OIL TEMP
83248CHIME, SPEED WARNING
83910CLOCK ASSY
JECO
RHYTHM
9009300416
main90093-00416
9009900917
main90099-00917
9009900929
main90099-00929
9009933579
main90099-33579
9015940027
main90159-40027
9016750020
main90167-50020
9411540400
main94115-40400
9451100400
main94511-00400
20 parts on this diagram · 3 diagrams in section
METER for Toyota SPRINTER CARIB
This section contains 37 genuine Toyota parts for the METER system of the Toyota SPRINTER CARIB. Key components include: BULB, COMBINATION METER, NO.1, SOCKET SUB-ASSY, COMBINATION METER BULB, SPEEDOMETER ASSY, KNOB, TRIP COUNTER, WIRE, METER.
