Toyota SPRINTER CARIB — LOCK CYLINDER SET

69503CYLINDER SET, LOCK

main69005-13300i199704-199804

main69005-13350i199704-199804

main69005-13430i199804-200207

main69005-13440i199804-200207

69503AKEY, BLANK

main90999-00185i199508-199704

main90999-00186×2i199704-200207

69510CYLINDER ASSY, FRONT DOOR LOCK, RH

main69510-12250i199508-199704

69520CYLINDER ASSY, FRONT DOOR LOCK, LH

main69520-12250i199704-200207

69560CYLINDER ASSY, BACK DOOR LOCK

main69560-13090i199508-199704

69563PAD, BACK DOOR LOCK CYLINDER

main69563-12070i199508-199704

69570CYLINDER ASSY, IGNITION SWITCH LOCK

main69570-12150i199704-200207

main69570-20220i199704-200207

69759CSNAP, BACK DOOR LOCK CYLINDER

main69759-20090i199508-199704

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-12080i199508-199704

main69759-12090i199508-199704

9017905076

main90179-05076

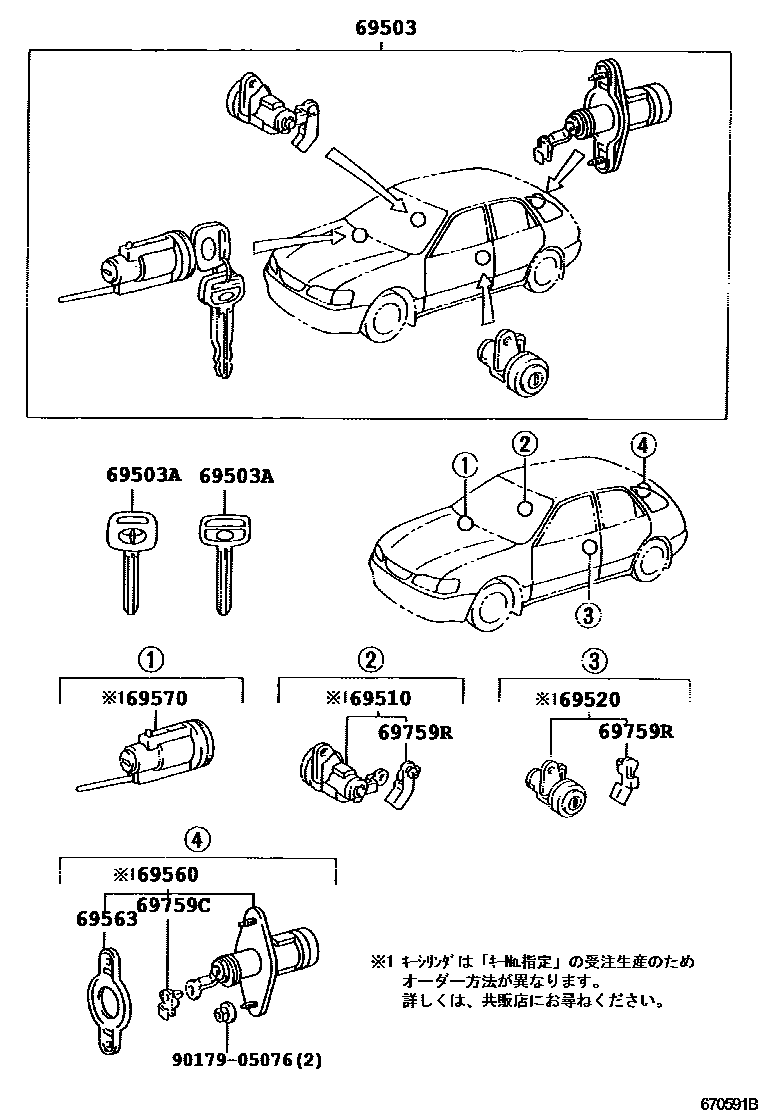

10 parts on this diagram · 1 diagram in section

LOCK CYLINDER SET for Toyota SPRINTER CARIB

This section contains 10 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota SPRINTER CARIB. Key components include: CYLINDER SET, LOCK, KEY, BLANK, CYLINDER ASSY, FRONT DOOR LOCK, RH, CYLINDER ASSY, FRONT DOOR LOCK, LH, CYLINDER ASSY, BACK DOOR LOCK.
