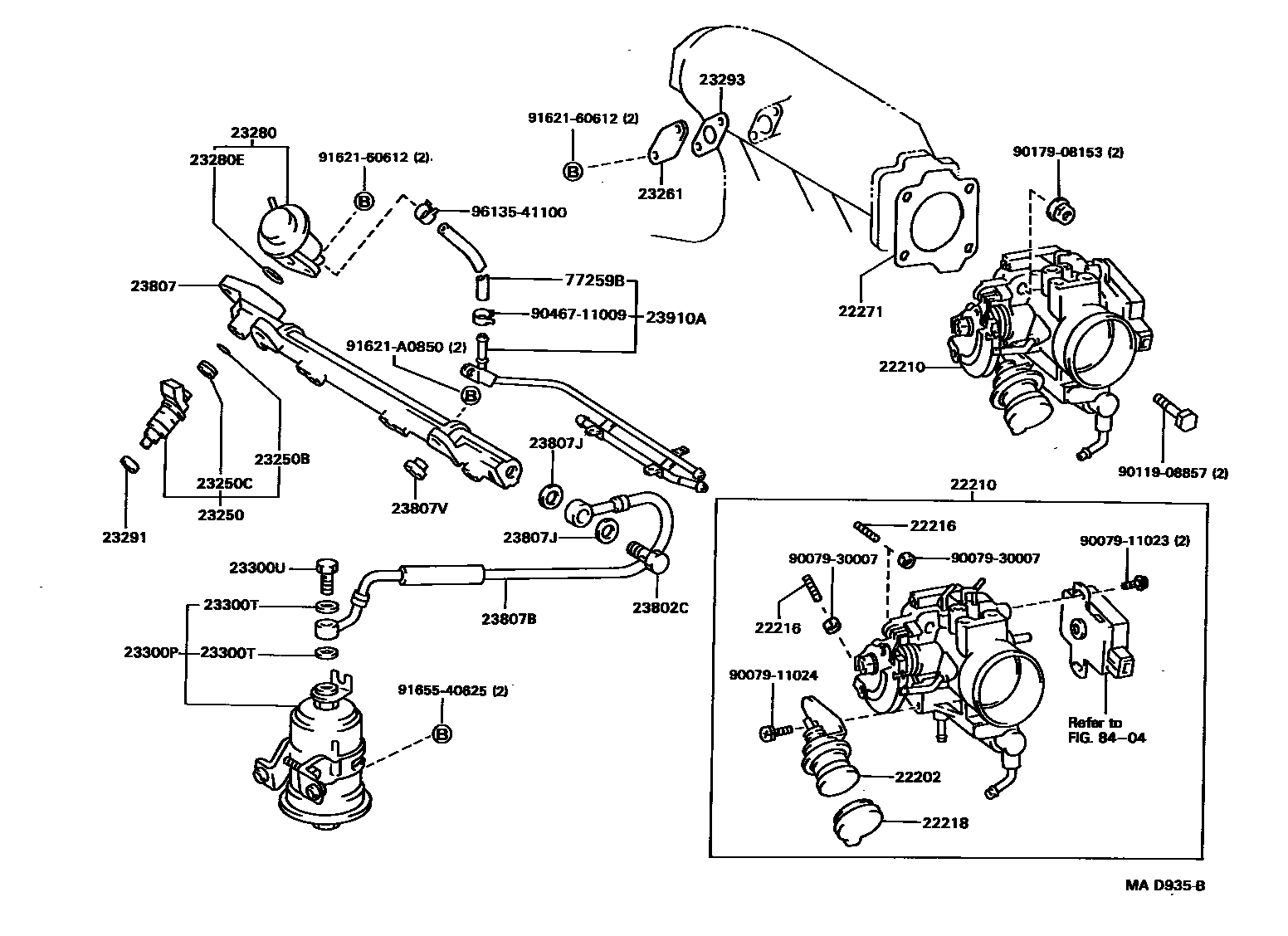

Toyota SPRINTER CARIB — FUEL INJECTION SYSTEM
22202DASH POT SUB-ASSY
22210BODY ASSY, THROTTLE
22216SCREW, DASH POT ADJUSTING
22218COVER(FOR THROTTLE BODY)
22271GASKET, THROTTLE BODY
23250INJECTOR ASSY, FUEL
23250BRING, O(FOR FUEL INJECTOR)
23250CGROMMET(FOR FUEL INJECTOR)
23261COVER, INJECTOR
23280REGULATOR ASSY, FUEL PRESSURE
23280ERING, O(FOR FUEL PRESSURE REGULATOR)
23291INSULATOR, INJECTOR VIBRATION
23293GASKET, COLD START INJECTOR
23300PFILTER, FUEL(FOR EFI)
23300TGASKET(FOR FUEL FILTER)
23300UBOLT, UNION(FOR FUEL FILTER)
23802CBOLT, UNION(FOR FUEL PIPE NO.2)
23807PIPE SUB-ASSY, FUEL DELIVERY
23807BHOSE, FUEL DELIVERY PIPE
23807JGASKET, PIPE FUEL DELIVARY INLET
23807VSPACER, NO.1(FOR DELIVERY PIPE)
23910ATUBE SUB-ASSY, FUEL
77259BHOSE, FUEL
8404ELECTRONIC FUEL INJECTION SYSTEM
9007911023
main90079-11023
9007911024
main90079-11024
9007930007
main90079-30007
9011908857
main90119-08857
9017908153
main90179-08153
9046711009
main90467-11009
9162160612
main91621-60612
91621A0850
main91621-A0850
9165540625
main91655-40625
9613541100
main96135-41100
34 parts on this diagram · 2 diagrams in section
FUEL INJECTION SYSTEM for Toyota SPRINTER CARIB
This section contains 48 genuine Toyota parts for the FUEL INJECTION SYSTEM system of the Toyota SPRINTER CARIB. Key components include: DASH POT SUB-ASSY, BODY ASSY, THROTTLE, SCREW, DASH POT ADJUSTING, COVER(FOR THROTTLE BODY), GASKET, THROTTLE BODY.
