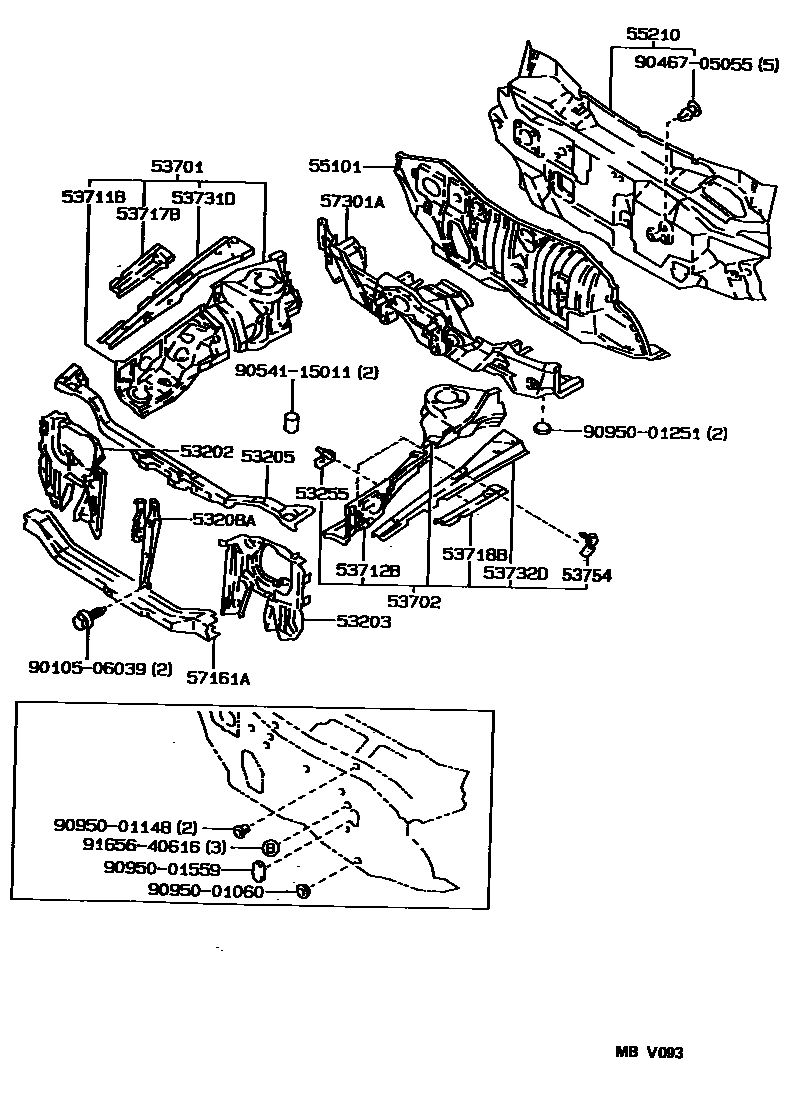

Toyota SPRINTER CARIB — FRONT FENDER APRON & DASH PANEL

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-12290i199009-199508

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-12250i199009-199508

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53216-12928i199009-199508

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-12390i199009-199508

53255BRACKET, RELAY BOX MOUNTING

main53255-12010i199009-199508

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-1A010i199009-199508

main53701-1A030i199009-199508

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-1A030i199009-199508

53711BAPRON, FRONT FENDER, FRONT RH

main53711-12210i199009-199508

main53711-12250i199009-199508

53712BAPRON, FRONT FENDER, FRONT LH

main53712-12170i199009-199508

53717BGUSSET, FENDER APRON, RH

main53717-12040i199009-199508

53718BGUSSET, FENDER APRON, LH

main53718-12040i199009-199508

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-12140i199009-199508

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-12120i199009-199508

53754BRACKET, RELAY BOX MOUNTING, NO.2

main53754-12010i199009-199508

55101PANEL SUB-ASSY, DASH

main55101-1A070i199009-199508

main55101-1A370i199009-199508

55210INSULATOR ASSY, DASH PANEL

main55210-12350i199009-199508

57161AMEMBER, FRONT CROSS, FRONT W/REAR

main57161-12911i199009-199508

57301AMEMBER SUB-ASSY, STEERING GEAR BOX SUPPORT

main57301-12100i199009-199508

9010506039

main90105-06039

9046705055

main90467-05055

9054115011

main90541-15011

9095001060

main90950-01060

9095001148

main90950-01148

9095001251

main90950-01251

9095001559

main90950-01559

9165640616

main91656-40616

26 parts on this diagram · 1 diagram in section

FRONT FENDER APRON & DASH PANEL for Toyota SPRINTER CARIB

This section contains 26 genuine Toyota parts for the FRONT FENDER APRON & DASH PANEL system of the Toyota SPRINTER CARIB. Key components include: SUPPORT SUB-ASSY, RADIATOR, RH, SUPPORT SUB-ASSY, RADIATOR, LH, SUPPORT SUB-ASSY, RADIATOR, UPPER, SUPPORT SUB-ASSY, HOOD LOCK, BRACKET, RELAY BOX MOUNTING.
