Toyota SPRINTER CARIB — FRONT CLEARANCE LAMP

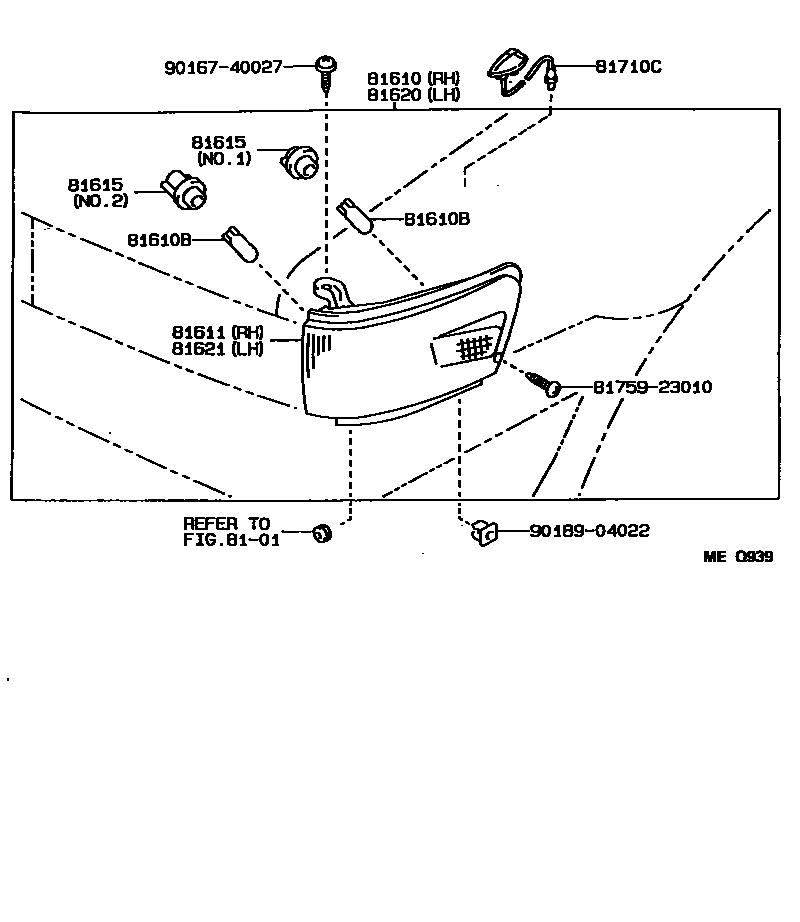

Parts diagram

8101HEADLAMP

→ Go to FIG 81-01

81610LAMP ASSY, PARKING & CLEARANCE, RH

main81610-12510i199009-199508

main81610-12520i199009-199508

81610BBULB(FOR PARKING & CLEARANCE LAMP)

main99132-12050×4i199009-199508

81611LENS, PARKING & CLEARANCE LAMP, RH

main81611-12510i199009-199508

main81611-12520i199009-199508

81615SOCKET AND WIRE, CLEARANCE LAMP

main90075-99006×2i199009-199508

main90075-99007×2i199009-199508

81620LAMP ASSY, PARKING & CLEARANCE, LH

main81620-12510i199009-199508

main81620-12520i199009-199508

81621LENS, PARKING & CLEARANCE LAMP, LH

main81621-12510i199009-199508

main81621-12520i199009-199508

81710CMARKER ASSY, FENDER

main81710-12010×2i199009-199508

8175923010RETAINER, REAR SIDE MARKER LAMP, RH

main81759-23010

9016740027

main90167-40027

9018904022

main90189-04022

11 parts on this diagram · 1 diagram in section

FRONT CLEARANCE LAMP for Toyota SPRINTER CARIB

This section contains 11 genuine Toyota parts for the FRONT CLEARANCE LAMP system of the Toyota SPRINTER CARIB. Key components include: HEADLAMP, LAMP ASSY, PARKING & CLEARANCE, RH, BULB(FOR PARKING & CLEARANCE LAMP), LENS, PARKING & CLEARANCE LAMP, RH, SOCKET AND WIRE, CLEARANCE LAMP.
