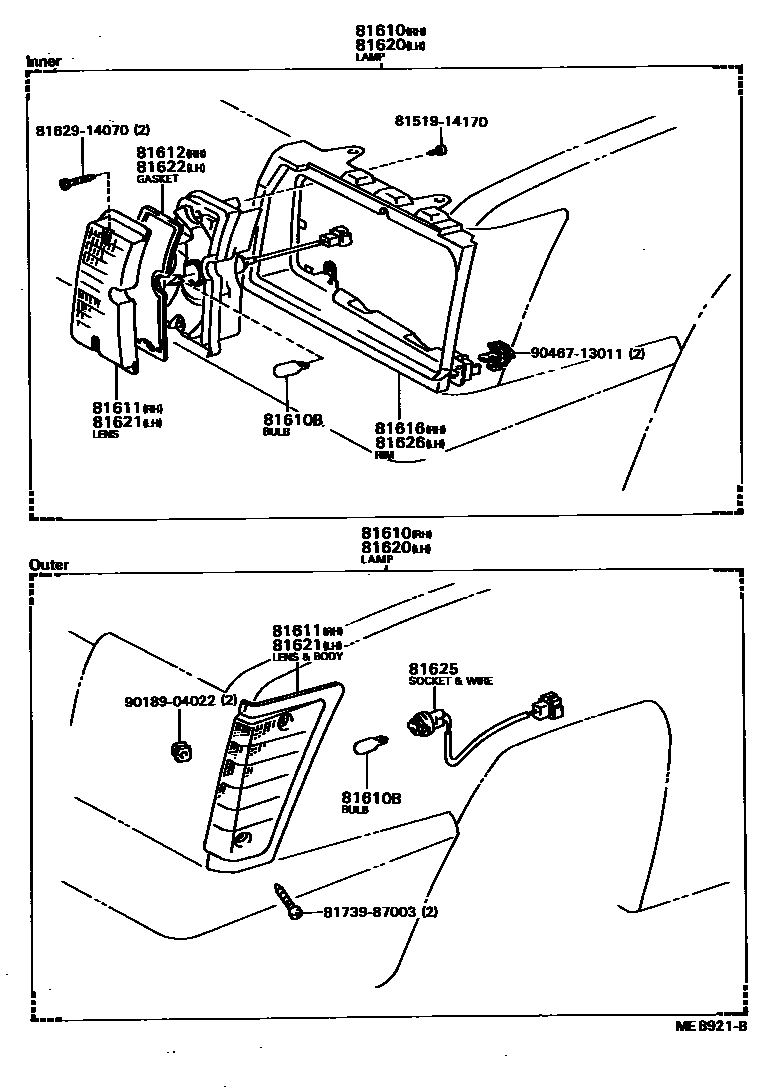

Toyota SPRINTER CARIB — FRONT CLEARANCE LAMP

81610LAMP ASSY, PARKING & CLEARANCE, RH

main81610-16051i198605-198801

main81610-16100i198208-198605

INNER

main81610-19405i198208-198605

OUTER

81610BBULB(FOR PARKING & CLEARANCE LAMP)

main99132-12050×4i198208-198801

81611LENS, PARKING & CLEARANCE LAMP, RH

main81611-16051i198605-198801

main81611-16080i198208-198605

OUTER

main81611-16100i198208-198605

INNER

81612GASKET, PARKING AND CLEARANCE LAMP LENS, RH

main81612-16100i198208-198605

INNER

81616RIM, PARKING AND CLEARANCE LAMP, RH

main81616-16100i198208-198605

INNER

81620LAMP ASSY, PARKING & CLEARANCE, LH

main81620-16051i198605-198801

main81620-16100i198208-198605

INNER

main81620-19405i198208-198605

OUTER

81621LENS, PARKING & CLEARANCE LAMP, LH

main81621-16051i198605-198801

main81621-16080i198208-198605

OUTER

main81621-16100i198208-198605

INNER

81622GASKET, PARKING AND CLEARANCE LAMP LENS, LH

main81612-16100i198208-198605

INNER

81625SOCKET AND WIRE, PARKING AND CLEARANCE LAMP

main81615-16040i198208-198605

OUTER

81626RIM, PARKING AND CLEARANCE LAMP, LH

main81626-16100i198208-198605

INNER

8151914170BRACKET, FRONT TURN SIGNAL LAMP, RH

main81519-14170

8162914070

main81629-14070

8173987003

main81739-87003

9018904022

main90189-04022

9046713011

main90467-13011

15 parts on this diagram · 2 diagrams in section

FRONT CLEARANCE LAMP for Toyota SPRINTER CARIB

This section contains 16 genuine Toyota parts for the FRONT CLEARANCE LAMP system of the Toyota SPRINTER CARIB. Key components include: LAMP ASSY, PARKING & CLEARANCE, RH, BULB(FOR PARKING & CLEARANCE LAMP), LENS, PARKING & CLEARANCE LAMP, RH, GASKET, PARKING AND CLEARANCE LAMP LENS, RH, RIM, PARKING AND CLEARANCE LAMP, RH.
