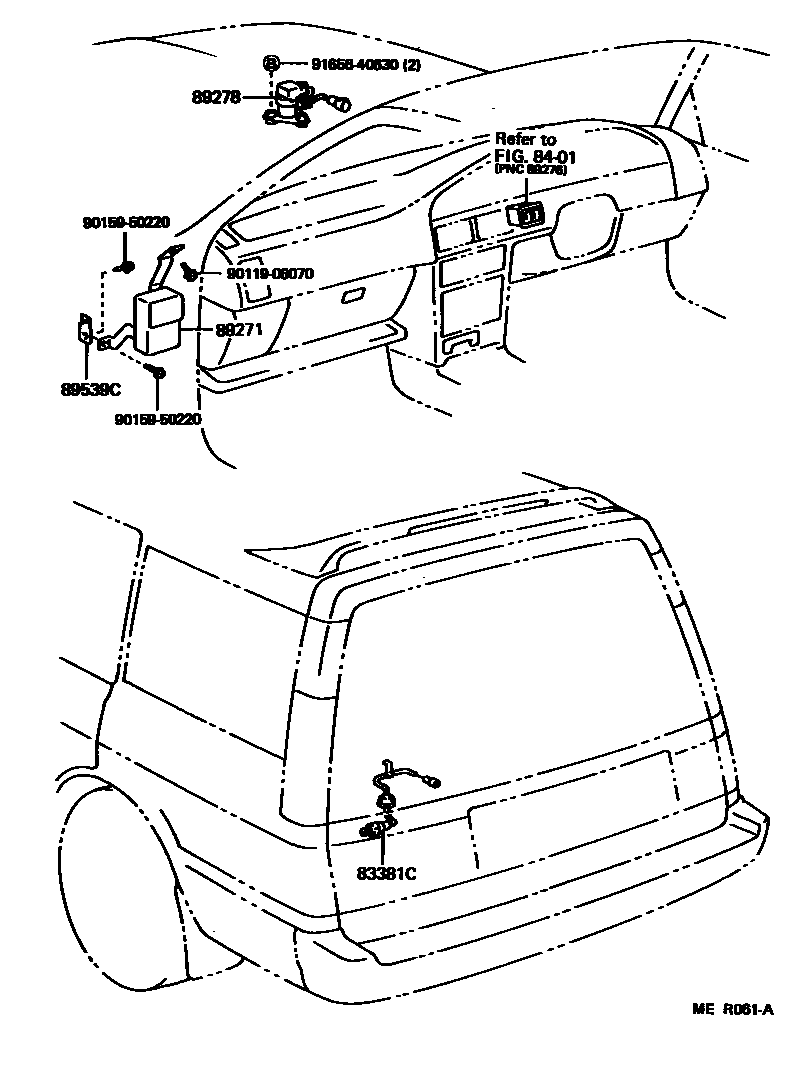

Toyota SPRINTER CARIB — ELECTRONIC HEIGHT CONTROL

83381CSWITCH, PRESSURE

main83381-13010i199009-199508

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89271COMPUTER, HEIGHT CONTROL

main89271-13010i199009-199508

89278RELAY, HEIGHT CONTROL

main89278-12010i199009-199508

89539CBRACKET, COMPUTER

main89539-12030i199009-199508

9011906070

main90119-06070

9015950220

main90159-50220

9165640630

main91656-40630

8 parts on this diagram · 1 diagram in section

ELECTRONIC HEIGHT CONTROL for Toyota SPRINTER CARIB

This section contains 8 genuine Toyota parts for the ELECTRONIC HEIGHT CONTROL system of the Toyota SPRINTER CARIB. Key components include: SWITCH, PRESSURE, SWITCH & RELAY & COMPUTER, COMPUTER, HEIGHT CONTROL, RELAY, HEIGHT CONTROL, BRACKET, COMPUTER.
