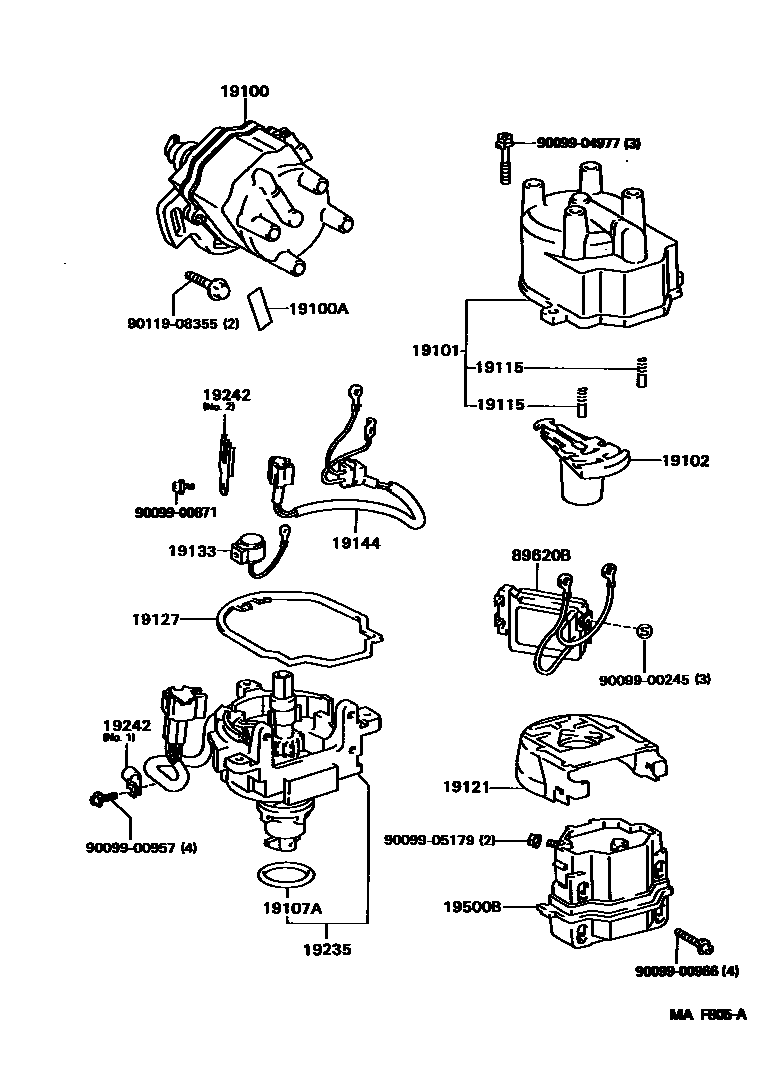

Toyota SPRINTER CARIB — DISTRIBUTOR

19100DISTRIBUTOR ASSY

main19020-16240i199009-199508

19100ATAPE, SEALING

main90919-24004i199009-199508

19101CAP SUB-ASSY, DISTRIBUTOR

main19101-15120i199009-199508

19102ROTOR SUB-ASSY, DISTRIBUTOR

main19102-11031i199009-199508

19107ARING, O, DISTRIBUTOR HOUSING

main90099-14091i199009-199410

main90099-14127i199410-199508

19115PIECE, DISTRIBUTOR CAP, CENTER

main19115-63010×2i199009-199508

19121COVER, DUST PROOF

main19121-11080i199009-199508

19127PACKING, DUST PROOF

main19127-15120i199009-199508

19133CONDENSER, DISTRIBUTOR

main19133-16240i199009-199508

19144LEAD, DISTRIBUTOR BREAKER

main19144-16240i199009-199103

main19144-16250i199103-199508

19235HOUSING, DISTRIBUTOR

main19235-16240i199009-199508

19242CLAMP, CORD

main19242-11190i199009-199508

main19242-16240i199009-199103

main19242-16250i199103-199508

19500BCOIL ASSY, IGNITION

main90919-02164i199009-199508

89620BIGNITER ASSY

main89620-12410i199009-199201

main89620-12440i199201-199508

9009004977

main90090-04977

9009900245

main90099-00245

9009900871

main90099-00871

9009900957

main90099-00957

9009900966

main90099-00966

9009905179

main90099-05179

9011908355

main90119-08355

21 parts on this diagram · 1 diagram in section

DISTRIBUTOR for Toyota SPRINTER CARIB

This section contains 21 genuine Toyota parts for the DISTRIBUTOR system of the Toyota SPRINTER CARIB. Key components include: DISTRIBUTOR ASSY, TAPE, SEALING, CAP SUB-ASSY, DISTRIBUTOR, ROTOR SUB-ASSY, DISTRIBUTOR, RING, O, DISTRIBUTOR HOUSING.
