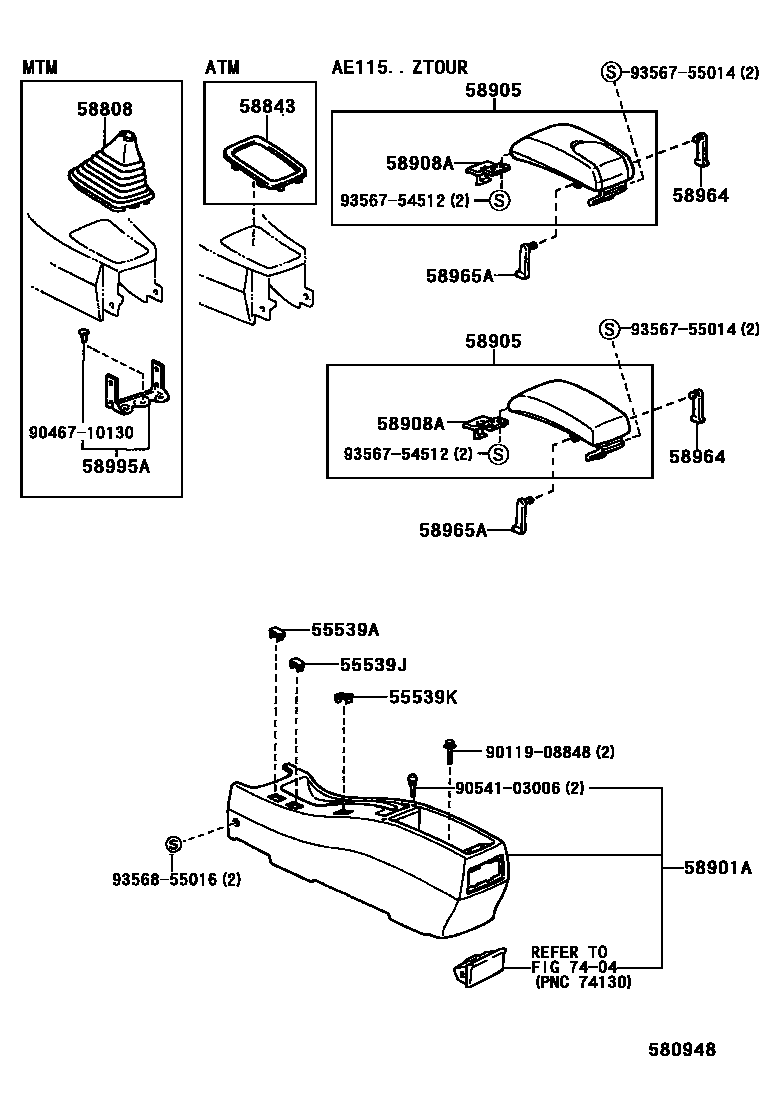

Toyota SPRINTER CARIB — CONSOLE BOX & BRACKET

55539ACOVER, SPARE SWITCH HOLE

main55539-20020-B4iAE114..ROSSO;AE111..ROSSO..5F199804-200207

MD.CHARCOAL,TRIM1#

main55539-20020-P0iAE114;AE111,115..(BZT,STOUR,VTOUR)..5F199605-199704

SHADOW GRAY,TRIM1#

55539JCOVER, SPARE SWITCH HOLE

main55539-12120-B0iAE114..STOUR;AE111,115..MTM..(BZT,STOUR,VTOUR,ZTOUR)199704-200207

SHADOW GRAY,TRIM1#

sub55539-32010

main55539-12120-B2iAE114..ROSSO;AE111..ROSSO..5F199804-200207

MD.CHARCOAL,TRIM1#

sub55539-32010

main55539-20020-B4iAE111..ROSSO..4FC199804-200207

MD.CHARCOAL,TRIM1#

main55539-20020-P0iAE111,115..(BZT,STOUR,VTOUR)..4FC199605-199704

SHADOW GRAY,TRIM1#

55539KCOVER, SPARE SWITCH HOLE

main55539-12120-B0iAE11#199508-199605

SHADOW GRAY,TRIM1#

sub55539-32010

main55539-12120-B2iAE111,114..ROSSO199804-200207

MD.CHARCOAL,TRIM1#

sub55539-32010

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-12112-B1iAE111,114..ROSSO..5F199804-200207

DK.CHARCOAL,TRIM1#

main58808-12112-P0iAE11#..5F199508-199605

SHADOW GRAY,TRIM1#

main58808-12140-C0iAE111..6F199704-199804

BLACK,TRIM1#

main58808-12160-C0iAE111..6F199804-200207

BLACK,TRIM1#

58843BEZEL, SHIFTING HOLE

main58843-12080-B0iAE11#..(BZT,STOUR,VTOUR)..4FC199605-199704

SHADOW GRAY,TRIM1#

main58843-12090-B0iAE11#..(BZT,STOUR,VTOUR,ZTOUR)..4FC199704-200207

SHADOW GRAY,TRIM1#

main58843-12090-B3iAE111,114..ROSSO..4FC199804-200207

DK.CHARCOAL,TRIM1#

main58843-12100iAE111..6F199704-200207

58901ABOX SUB-ASSY, CONSOLE, REAR

main58901-12220-B0iAE111..BZT,STOUR199605-199704

SHADOW GRAY,TRIM1#

main58901-12220-B1iAE111..ROSSO199804-200207

MD.CHARCOAL,TRIM1#

main58901-12250-B0iAE115..ZTOUR199605-199704

SHADOW GRAY,TRIM1#

main58901-12250-B1iAE114..ROSSO199804-200207

MD.CHARCOAL,TRIM1#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-12160-B0iAE11#..STOUR,VTOUR199508-199704

SHADOW GRAY,TRIM1#

main58905-12160-B1iAE111,114..ROSSO199804-200207

MD.CHARCOAL,TRIM1#

main58905-13010-B0iAE111..BZT199605-199704

SHADOW GRAY,TRIM1#

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-32040iAE11#199508-199605

main58908-32050iAE11#199605-199704

58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1

main58964-12040iAE11#199704-200207

58965ASTOPPER, CONSOLE COMPARTMENT DOOR, NO.2

main58965-12040iAE11#199508-199704

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-12080iAE11#..5F199508-199704

7404

9011908848

main90119-08848

9046710130

main90467-10130

9054103006

main90541-03006

9356754512

main93567-54512

9356755014

main93567-55014

9356855016

main93568-55016

18 parts on this diagram · 1 diagram in section
