Toyota SPRINTER CARIB — CONSOLE BOX & BRACKET

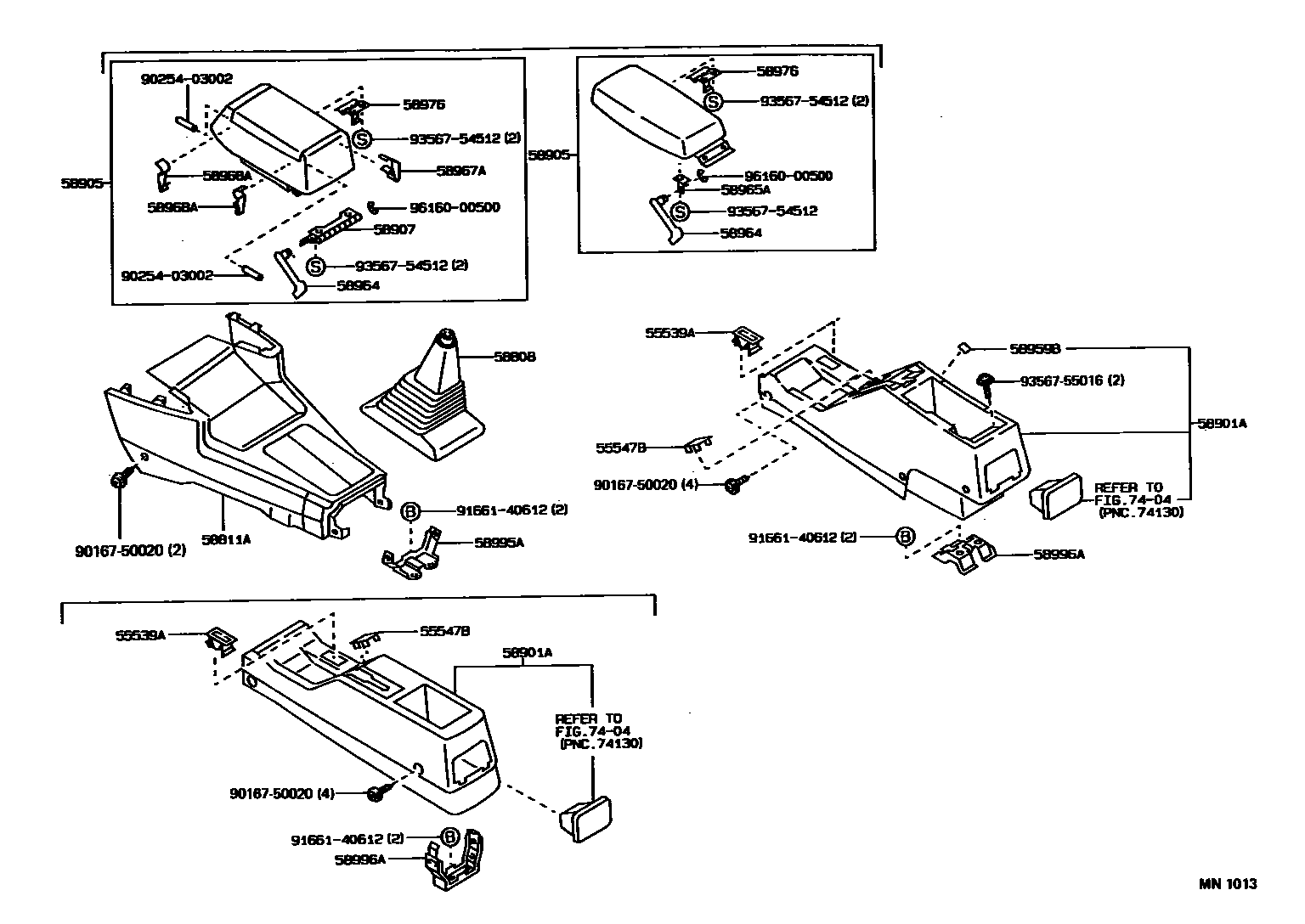

Parts diagram

55539ACOVER, SPARE SWITCH HOLE

main55539-20020-03i199009-199208

SHADOW GRAY,TRIM1#

main55539-20020-J0i199009-199308

DARK BLUE,TRIM8#

main55539-20020-P0i199208-199508

SHADOW GRAY,TRIM1#

55547BCOVER, REMOTE CONTROL MIRROR HOLE

main55547-20020-03i199009-199508

SHADOW GRAY,TRIM1#

main55547-20020-14i199009-199308

DARK BLUE,TRIM8#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-12100-01i199009-199109

BLACK,TRIM1#,8#

main58808-12100-03i199009-199109

SHADOW GRAY,TRIM1#

main58808-12100-04i199009-199109

DARK BLUE,TRIM8#

main58808-12101-22i199109-199308

BLACK,TRIM1#,8#

main58808-12101-P0i199109-199508

SHADOW GRAY,TRIM1#

main58808-12101-R8i199109-199308

DARK BLUE,TRIM8#

58811ABOX, CONSOLE, FRONT

main58811-12430-03i199009-199508

SHADOW GRAY,TRIM1#

main58811-12430-04i199009-199308

DARK BLUE,TRIM8#

main58811-12430-13i199009-199508

main58811-12430-14i199009-199308

main58811-13010-03i199009-199508

main58811-13010-04i199009-199308

main58811-13010-13i199009-199508

main58811-13010-14i199009-199308

58901ABOX SUB-ASSY, CONSOLE, REAR

main58901-12170-03i199009-199508

SHADOW GRAY,TRIM1#

main58901-12170-04i199009-199308

DARK BLUE,TRIM8#

main58901-12180-03i199009-199508

SHADOW GRAY,TRIM1#

main58901-12180-04i199009-199308

DARK BLUE,TRIM8#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-12070-03i199009-199508

SHADOW GRAY,TRIM1#

main58905-12070-04i199009-199308

DARK BLUE,TRIM8#

main58905-12080-03i199009-199508

main58905-12080-04i199009-199308

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-12020i199009-199508

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-16010×2i199009-199508

58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1

main58964-20020i199009-199508

58965ASTOPPER, CONSOLE COMPARTMENT DOOR, NO.2

main58965-12010i199009-199508

58967ASPRING, CONSOLE DOOR STOPPER

main58967-12010i199009-199508

58968ABRACKET, CONSOLE DOOR STOPPER

main58968-12010×2i199009-199508

58976STRIKER, CONSOLE COMPARTMENT DOOR LOCK

main58976-22020i199009-199508

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-12071i199009-199508

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-12060i199009-199508

main58996-12070i199009-199508

7404

9016750020

main90167-50020

9025403002

main90254-03002

9166140612

main91661-40612

9356754512

main93567-54512

9356755016

main93567-55016

9616000500

main96160-00500

22 parts on this diagram · 1 diagram in section
