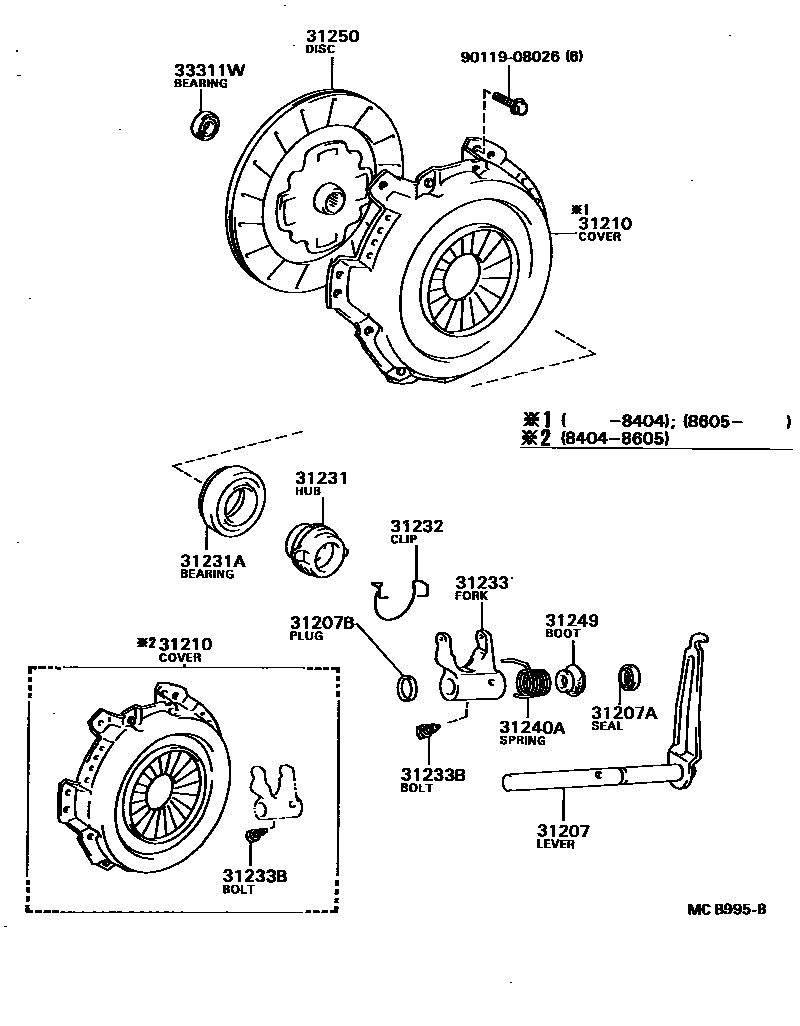

Toyota SPRINTER CARIB — CLUTCH & RELEASE FORK

31207LEVER SUB-ASSY, CLUTCH RELEASE FORK

main31207-16030i198208-198801

31207ASEAL, OIL(FOR CLUTCH RELEASE FORK LEVER)

main90313-18001i198208-198801

31207BPLUG(FOR CLUTCH RELEASE FORK LEVER)

main96411-12500i198208-198612

main96411-42500i198612-198801

31210COVER ASSY, CLUTCH

main31210-16030i198208-198211

main31210-16040i198211-198404

main31210-16110i198605-198801

main31210-19015i198404-198605

31231HUB, CLUTCH RELEASE BEARING

main31231-16030i198208-198801

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-40022i198208-198801

31232CLIP OR SPRING, RELEASE BEARING HUB

main31232-16020i198208-198801

31233FORK, CLUTCH RELEASE

main31233-16011i198208-198801

31233BBOLT(FOR RELEASE FORK & RELEASE LEVER SETTING)

main90109-10026i198208-198404

main90109-10079i198404-198801

31240ASPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN)

main90508-32004i198208-198801

31249BOOT, CLUTCH RELEASE FORK SHAFT

main31249-16010i198208-198801

31250DISC ASSY, CLUTCH

main31250-16020i198208-198304

main31250-16030i198304-198408

main31250-16040i198408-198801

33311WBEARING (FOR INPUT SHAFT)

main90363-12003i198208-198801

9011908026

main90119-08026

14 parts on this diagram · 1 diagram in section

CLUTCH & RELEASE FORK for Toyota SPRINTER CARIB

This section contains 14 genuine Toyota parts for the CLUTCH & RELEASE FORK system of the Toyota SPRINTER CARIB. Key components include: LEVER SUB-ASSY, CLUTCH RELEASE FORK, SEAL, OIL(FOR CLUTCH RELEASE FORK LEVER), PLUG(FOR CLUTCH RELEASE FORK LEVER), COVER ASSY, CLUTCH, HUB, CLUTCH RELEASE BEARING.
