Toyota SPRINTER CARIB — ARMREST & VISOR

74210ARMREST ASSY, FRONT, RH

main74210-12160-B0i199508-199605

SHADOW GRAY,TRIM1#

main74210-12180-B0i199704-200207

main74210-12180-B2i199804-200207

main74210-16120-B1i199508-199704

SHADOW GRAY,TRIM1#

74220ARMREST ASSY, FRONT, LH

main74220-12100-B0i199605-199704

SHADOW GRAY,TRIM1#; SHADOW GRAY,TRIM16,17

main74220-12160-B0i199704-200207

SHADOW GRAY,TRIM1#

main74220-12160-B2i199804-200207

MD.CHARCOAL,TRIM1#

main74220-16100-B1i199508-199704

SHADOW GRAY,TRIM1#

74230ARMREST ASSY, REAR, RH

main74210-12160-B0i199605-199704

SHADOW GRAY,TRIM1#; SHADOW GRAY,TRIM16,17

main74210-12180-B0i199704-200207

main74210-12180-B2i199804-200207

main74250-16060-B1i199704-200207

SHADOW GRAY,TRIM1#

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-12140-B0i199605-199704

SHADOW GRAY,TRIM1#; SHADOW GRAY,TRIM16,17

main74231-12240-B0i199704-200207

SHADOW GRAY,TRIM1#

main74231-12350-B0i199804-200207

GRAY,TRIM1#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-12120-B0i199605-199704

SHADOW GRAY,TRIM1#; SHADOW GRAY,TRIM16,17

main74232-12260-B0i199804-200207

74240ARMREST ASSY, REAR, LH

main74220-12100-B0i199508-199605

SHADOW GRAY,TRIM1#

main74220-12160-B0i199704-200207

SHADOW GRAY,TRIM1#

main74220-12160-B2i199804-200207

MD.CHARCOAL,TRIM1#

main74250-16060-B1i199508-199704

SHADOW GRAY,TRIM1#

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main84656-32020-B0i199605-199704

SHADOW GRAY,TRIM1#; SHADOW GRAY,TRIM16,17

main84656-32020-B2i199804-200207

MD.CHARCOAL,TRIM1#

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main84656-32020-B0i199508-199605

SHADOW GRAY,TRIM1#

main84656-32020-B2i199804-200207

MD.CHARCOAL,TRIM1#

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9046804147

main90468-04147

9046805047

main90468-05047

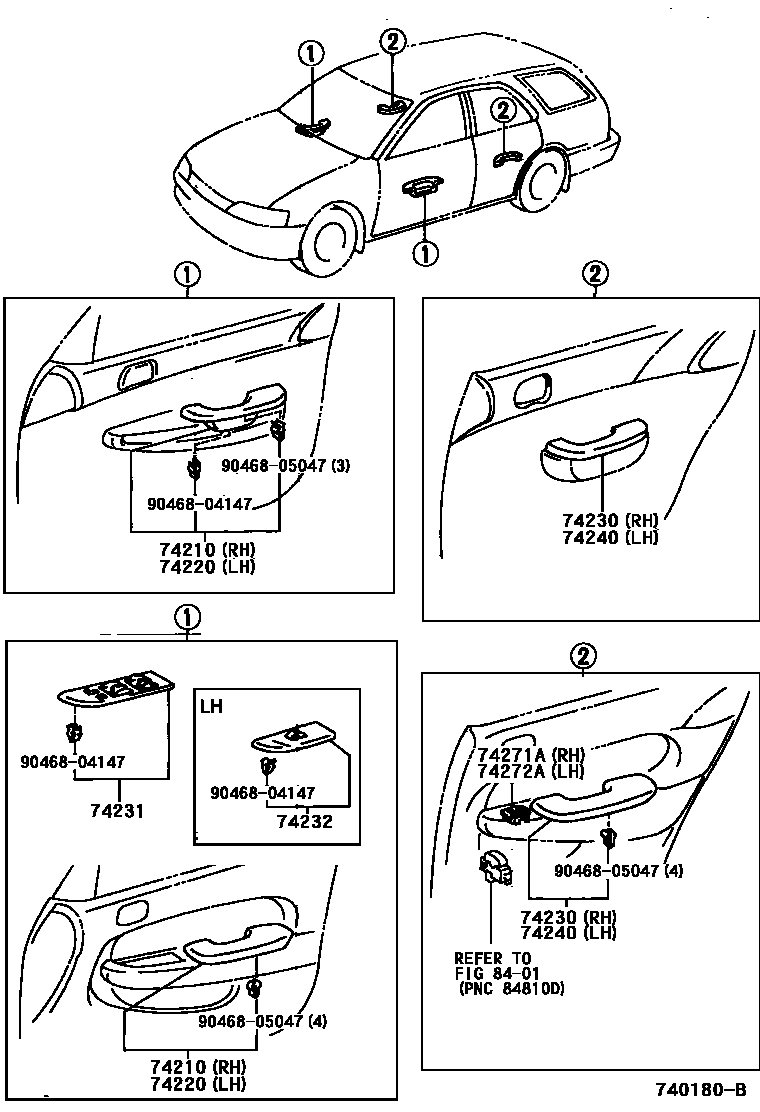

11 parts on this diagram · 2 diagrams in section

ARMREST & VISOR for Toyota SPRINTER CARIB

This section contains 19 genuine Toyota parts for the ARMREST & VISOR system of the Toyota SPRINTER CARIB. Key components include: ARMREST ASSY, FRONT, RH, ARMREST ASSY, FRONT, LH, ARMREST ASSY, REAR, RH, PANEL, FRONT ARMREST BASE, UPPER RH, PANEL, FRONT ARMREST BASE, UPPER LH.
