Toyota SPRINTER CARIB — ARMREST & VISOR

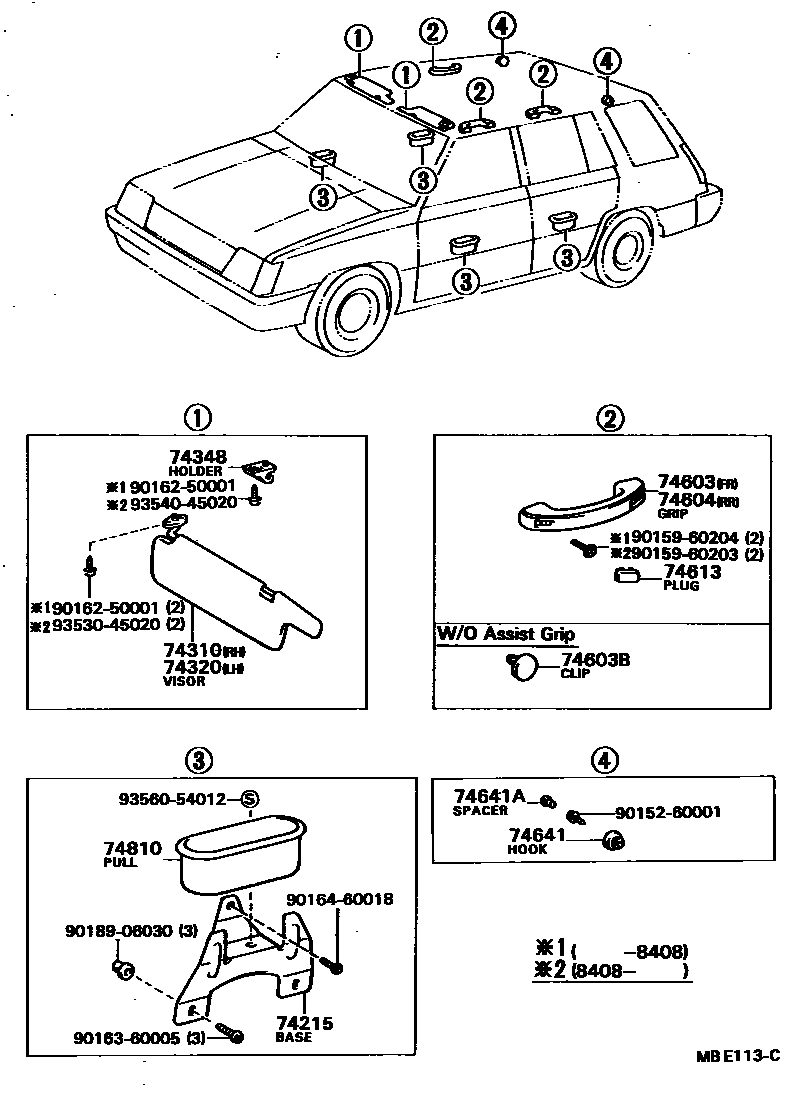

Parts diagram
74215BASE, DOOR ARMREST
main74215-16010×4i198208-198801
74310VISOR ASSY, RH
main74310-16120i198208-198408
IVORY
main74310-16121-08i198408-198605
IVORY,IVORY
main74310-16121-18i198605-198801
IVORY,IVORY
main74310-16150i198208-198408
IVORY
main74310-16151-08i198408-198605
IVORY,IVORY
main74310-16151-18i198702-198801
RV-SPECIAL,W/SUN ROOF,IVORY,IVORY
main74310-16190i198208-198408
W/SUN ROOF,IVORY
main74310-16191-08i198408-198605
W/SUN ROOF,IVORY,IVORY
main74310-16191-18i198605-198702
RV-SPECIAL,W/SUN ROOF,IVORY,IVORY
main74310-16230i198304-198408
RV-SPECIAL,W/SUN ROOF,IVORY
main74310-16231-08i198408-198605
RV-SPECIAL,W/SUN ROOF,IVORY,IVORY
74320VISOR ASSY, LH
main74320-16110i198208-198307
IVORY
main74320-16220i198307-198408
IVORY
main74320-16221-08i198408-198605
IVORY,IVORY
main74320-16221-18i198605-198801
IVORY,IVORY
74348HOLDER, VISOR
main74348-32010-08×2i198208-198605
IVORY,IVORY
main74348-32010-18×2i198605-198801
IVORY,IVORY
74603GRIP SUB-ASSY, ASSIST, FRONT
main74610-10020-18i198208-198408
IVORY,IVORY
main74610-12030-08i198408-198605
IVORY,IVORY
main74610-12030-18i198605-198801
IVORY,IVORY
74603BCLIP (FOR ASSIST GRIP)
main90467-06048-38×2i198605-198801
IVORY,IVORY
main90467-07007-18×2i198208-198605
IVORY,IVORY
74604GRIP SUB-ASSY, ASSIST, REAR
main74610-10020-18×2i198208-198408
IVORY,IVORY
main74610-12030-08×2i198408-198605
IVORY,IVORY
main74610-12030-18×2i198605-198801
IVORY,IVORY
74613PLUG, ASSIST GRIP
main74617-14010-18×6i198208-198408
IVORY,IVORY
main74617-16010-08×6i198408-198605
IVORY,IVORY
main74617-16010-18×6i198605-198801
IVORY,IVORY
74641HOOK, COAT, B
main74631-12060-18×2i198208-198605
IVORY,IVORY
main74631-12060-28×2i198605-198801
IVORY,IVORY
74641ASPACER (FOR COAT HOOK)
main74634-12010×2i198208-198801
74810PULL ASSY, DOOR, INSIDE
main74811-16010-01×4i198605-198801
BLACK,BLACK,TRIM2#
main74811-16010-03×4i198208-198408
GRAY,GRAY,TRIM1#
main74811-16010-05×4i198408-198605
BEIGE,BEIGE,TRIM4#
main74811-16010-06×4i198208-198408
BROWN,BROWN,TRIM4#
main74811-16010-13×4i198408-198605
GRAY,GRAY,TRIM1#
main74811-16010-15×4i198605-198801
BEIGE,DARK BEIGE,TRIM4#
9015260001
main90152-60001
9015960203
main90159-60203
9015960204
main90159-60204
9016250001
main90162-50001
9016360005
main90163-60005
9016460018
main90164-60018
9018906030
main90189-06030
9353045020
main93530-45020
9354045020
main93540-45020
9356054012
main93560-54012

21 parts on this diagram · 1 diagram in section

ARMREST & VISOR for Toyota SPRINTER CARIB

This section contains 21 genuine Toyota parts for the ARMREST & VISOR system of the Toyota SPRINTER CARIB. Key components include: BASE, DOOR ARMREST, VISOR ASSY, RH, VISOR ASSY, LH, HOLDER, VISOR, GRIP SUB-ASSY, ASSIST, FRONT.
