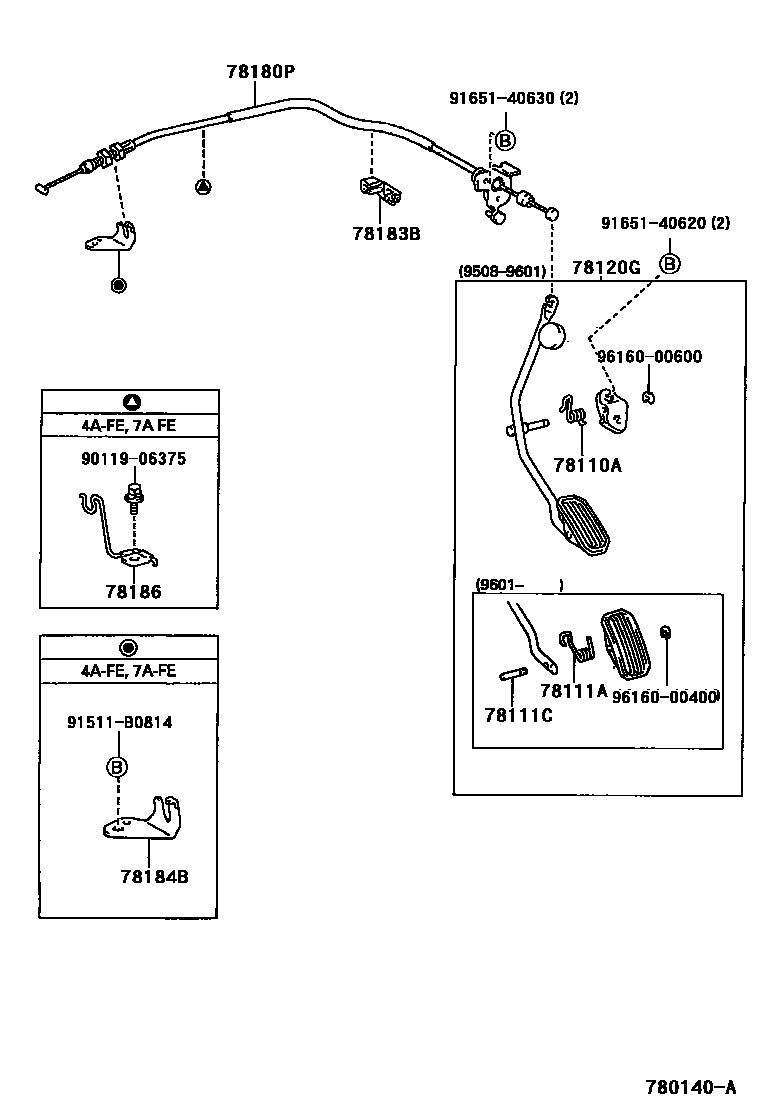

Toyota SPRINTER CARIB — ACCELERATOR LINK

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18025iAE11#..STOUR,VTOUR,ZTOUR199508-199704

main90508-18398iAE111..BZT..4FC199704-200207

main90508-26036iAE111..6F199704-200207

78111ASPRING (FOR ACCELERATOR PEDAL)

main90508-18050iAE11#199601-199704

78111CPIN (FOR ACCELERATOR PEDAL)

main90249-05001iAE11#199601-199704

78120GROD ASSY, ACCELERATOR PEDAL

main78120-12150iAE111..6F199704-200207

main78120-12160iAE11#..STOUR,VTOUR,ZTOUR199601-199704

main78120-12161iAE11#199508-199601

main78120-12170iAE111..BZT..4FC199605-199704

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-1A420iAE11#..ROSSO,STOUR,VTOUR,ZTOUR199704-200207

main78180-1A460iAE111..BZT199704-199804

main78180-1A461iAE111..BZT199804-200207

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-12160iAE11#199508-199704

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78184-12280iAE11#..STOUR,VTOUR,ZTOUR199508-199704

78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1

main78186-12290iAE11#..STOUR,VTOUR,ZTOUR199508-199704

9011906375

main90119-06375

91511B0814

main91511-B0814

9165140620

main91651-40620

9165140630

main91651-40630

9616000400

main96160-00400

9616000600

main96160-00600

14 parts on this diagram · 1 diagram in section
