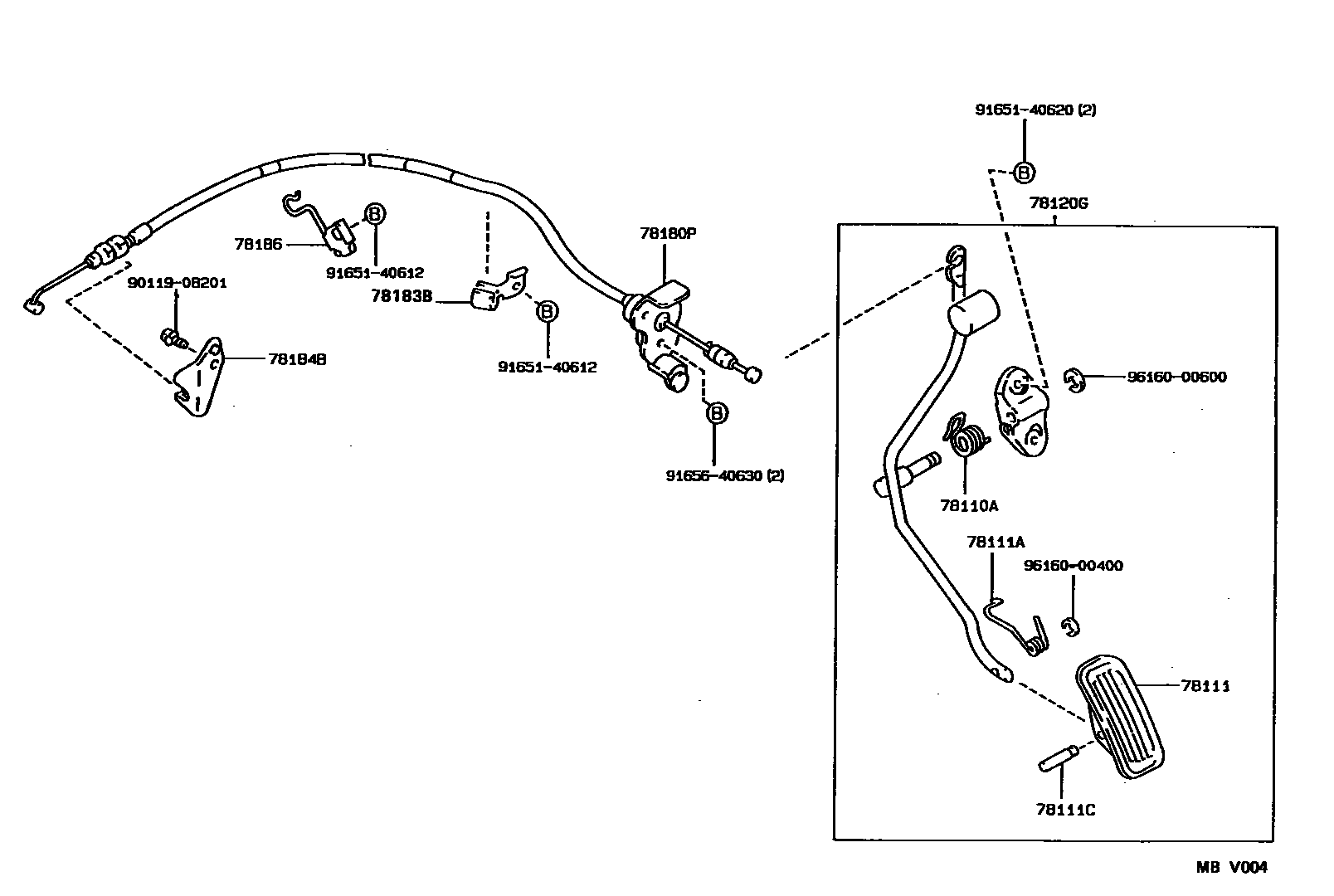

Toyota SPRINTER CARIB — ACCELERATOR LINK

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18025iAE95199009-199508

78111PEDAL, ACCELERATOR

main78111-32010iAE95199009-199508

78111ASPRING (FOR ACCELERATOR PEDAL)

main90508-20056iAE95199009-199508

78111CPIN (FOR ACCELERATOR PEDAL)

main90249-05001iAE95199009-199508

78120GROD ASSY, ACCELERATOR PEDAL

main78120-12080iAE95199009-199508

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-1A081iAE95199009-199508

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-12100iAE95199009-199508

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78184-12240iAE95199009-199508

78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1

main78186-12220iAE95199009-199508

9011908201

main90119-08201

9165140612

main91651-40612

9165140620

main91651-40620

9165640630

main91656-40630

9616000400

main96160-00400

9616000600

main96160-00600

15 parts on this diagram · 1 diagram in section
