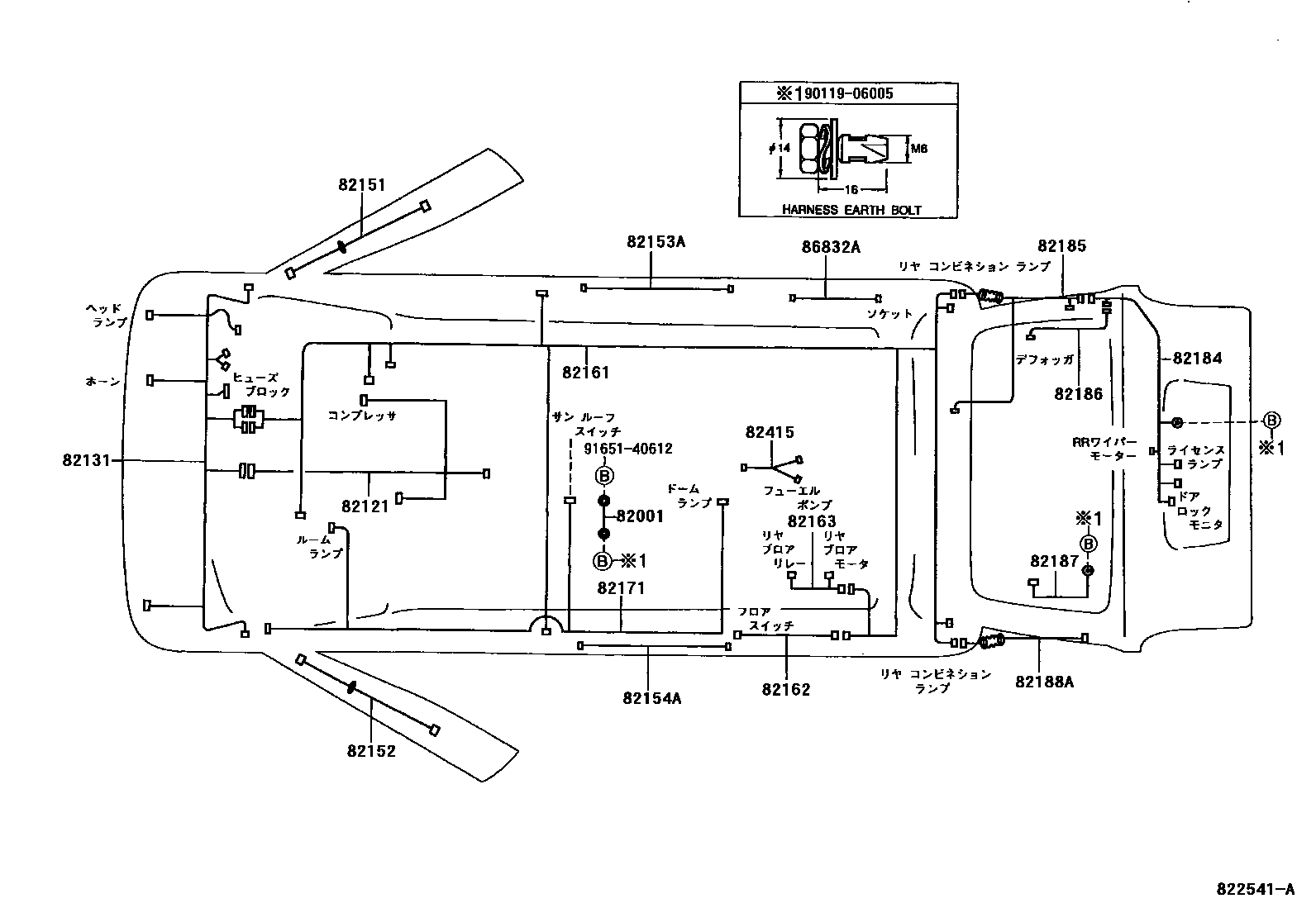

Toyota SPARKY — WIRING & CLAMP
82001CABLE, BOND, NO.1
82121WIRE, ENGINE
82131WIRE, COWL
82151WIRE, FRONT DOOR, RH
82153AWIRE, REAR DOOR, RH
82154AWIRE, REAR DOOR, LH
82161WIRE, FLOOR
82162WIRE, FLOOR, NO.2
82163WIRE, FLOOR, NO.3
82171WIRE, ROOF, NO.1
82184WIRE, BACK DOOR, NO.1
82185WIRE, BACK DOOR, NO.2
82186WIRE, REAR WINDOW, NO.1
82187WIRE, REAR WINDOW, NO.2
82188AWIRE, BACK DOOR, NO.3
82415WIRE, FUEL PUMP
86832AWIRE, ACCESSORY SOCKET
9011906005
main90119-06005
9165140612
main91651-40612
20 parts on this diagram · 3 diagrams in section
WIRING & CLAMP for Toyota SPARKY
This section contains 50 genuine Toyota parts for the WIRING & CLAMP system of the Toyota SPARKY. Key components include: REAR FLOOR PANEL & REAR FLOOR MEMBER, CABLE, BOND, NO.1, WIRE, ENGINE, WIRE, COWL, WIRE, FRONT DOOR, RH.
