Toyota SPARKY — WINDSHIELD WIPER
85150BLINK ASSY, WIPER
85192COVER, WINDSHIELD WIPER ARM
85211BARM, FRONT WIPER, RH
85212ABLADE, FR WIPER, RH
85214ARUBBER, WIPER, RH
85214BRUBBER, WIPER, LH
85221BARM, FRONT WIPER, LH
85222ABLADE, FR WIPER, LH
8112887205NUT, HEADLAMP
main81128-87205
9004119450
main90041-19450
9004119535
main90041-19535
9004179214
main90041-79214
9411040800
main94110-40800

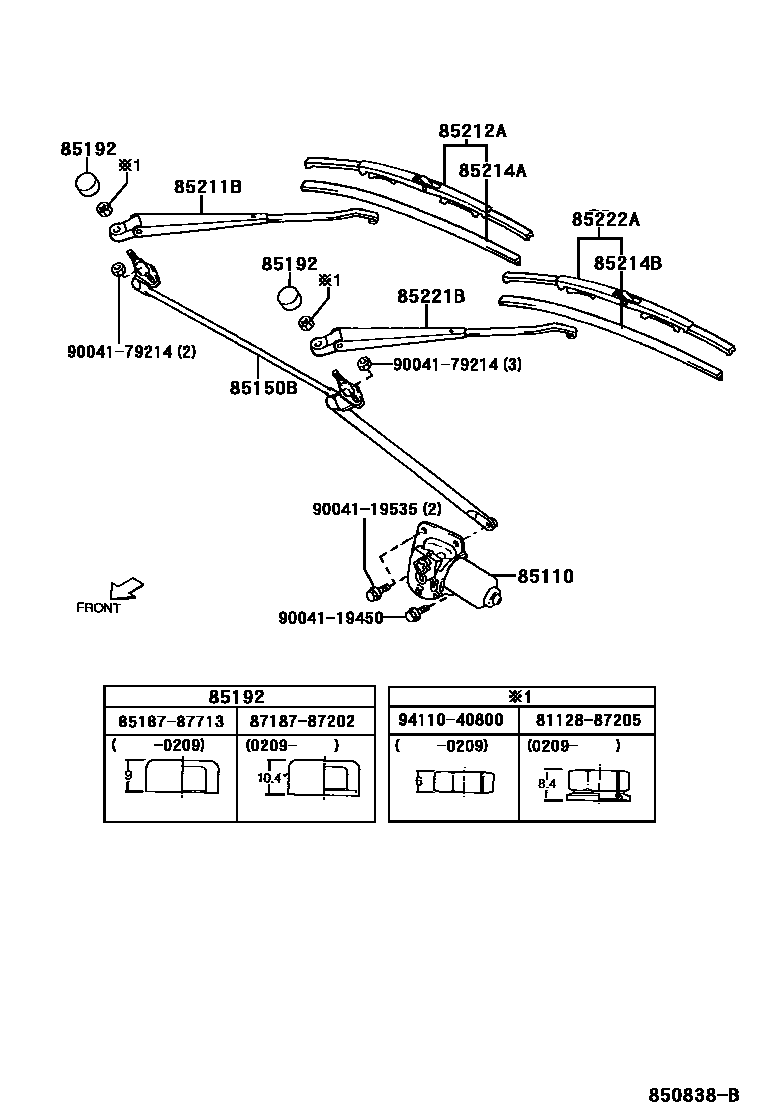

14 parts on this diagram · 1 diagram in section
WINDSHIELD WIPER for Toyota SPARKY
This section contains 14 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota SPARKY. Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WIPER, COVER, WINDSHIELD WIPER ARM, ARM, FRONT WIPER, RH, BLADE, FR WIPER, RH.
