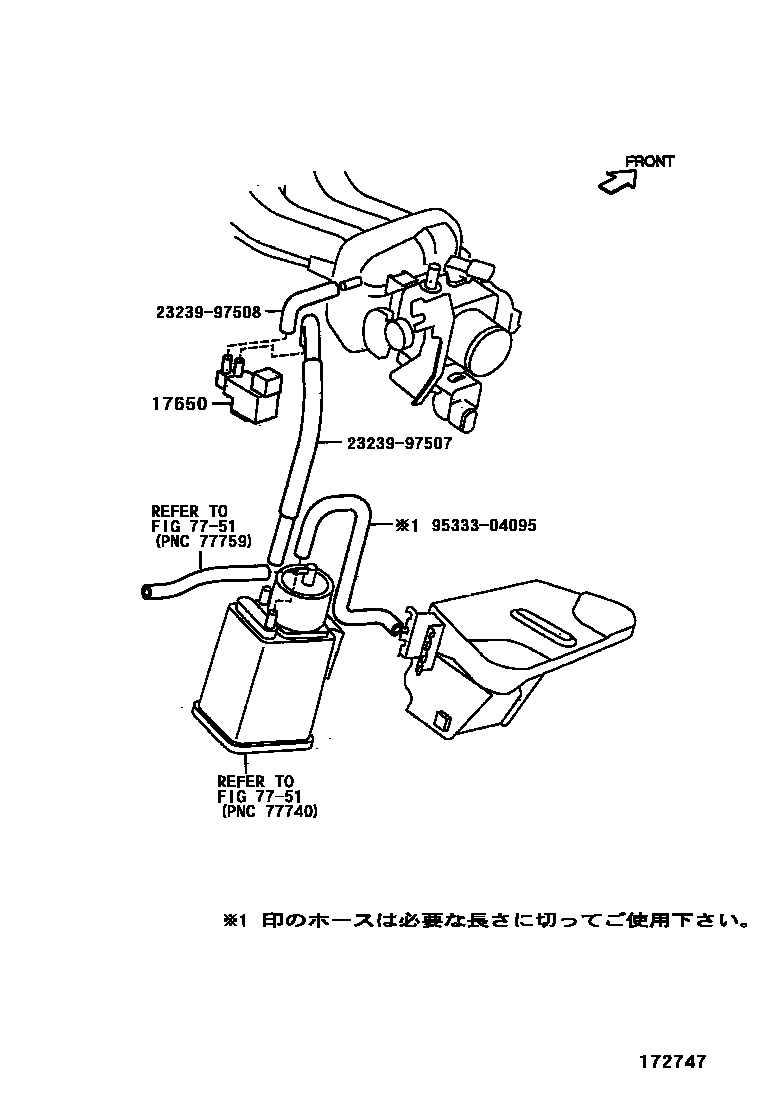

Toyota SPARKY — VACUUM PIPING

17650VALVE ASSY, VACUUM SWITCHING

main17650-97501i200009

7751FUEL TANK & TUBE

→ Go to FIG 77-51

2323997507HOSE

main23239-97507

2323997508HOSE

main23239-97508

9533304095

main95333-04095

5 parts on this diagram · 1 diagram in section

VACUUM PIPING for Toyota SPARKY

This section contains 5 genuine Toyota parts for the VACUUM PIPING system of the Toyota SPARKY. Key components include: VALVE ASSY, VACUUM SWITCHING, FUEL TANK & TUBE, HOSE.
