Toyota SPARKY — TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

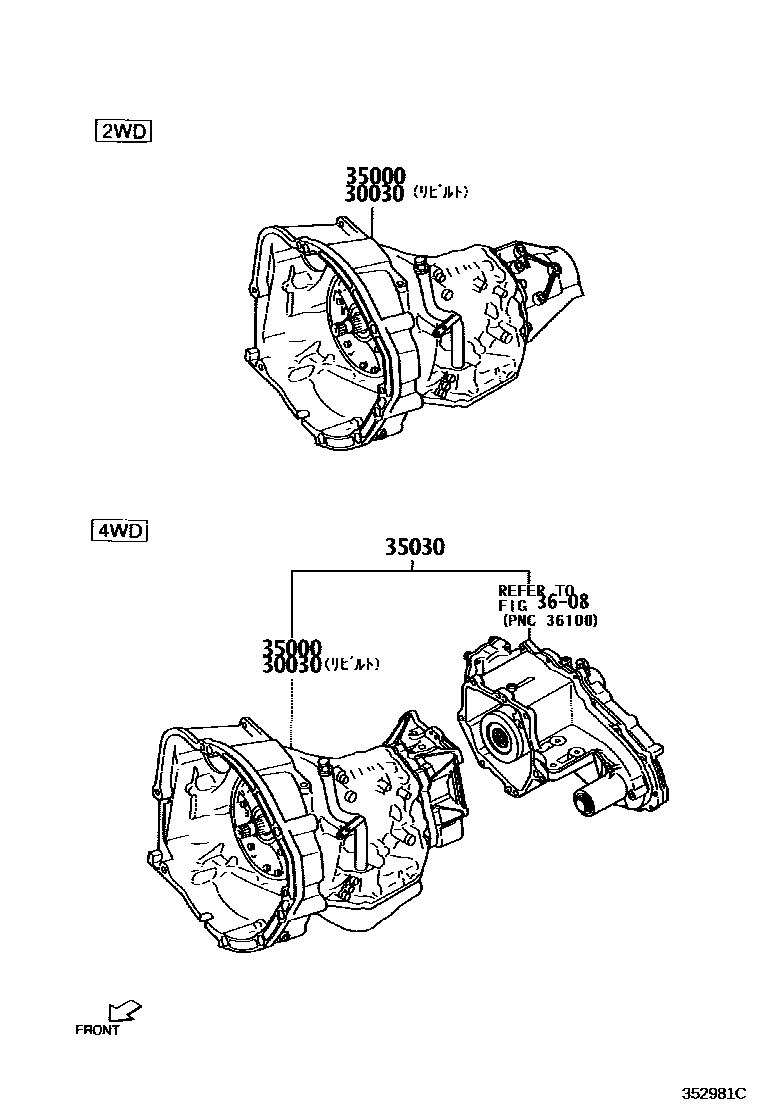

Parts diagram

30030TRANSMISSION ASSY, REBUILT

main30030-97513i200009-200103

main30030-97514i200009-200103

main30030-97516i200103-200206

main30030-97517i200103

main30030-97525i200206

35000TRANSMISSION ASSY, AUTOMATIC

main35000-97513i200009-200103

main35000-97514i200009-200103

main35000-97516i200103-200206

main35000-97517i200103

main35000-97525i200206

35030TRANSMISSION ASSY, AUTOMATIC W/TRANSFER

main35030-97508i200009-200103

main35030-97512i200103-200206

3608TRANSFER ASSEMBLY & GASKET KIT

→ Go to FIG 36-08

4 parts on this diagram · 1 diagram in section

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM) for Toyota SPARKY

This section contains 4 genuine Toyota parts for the TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM) system of the Toyota SPARKY. Key components include: TRANSMISSION ASSY, REBUILT, TRANSMISSION ASSY, AUTOMATIC, TRANSMISSION ASSY, AUTOMATIC W/TRANSFER, TRANSFER ASSEMBLY & GASKET KIT.
