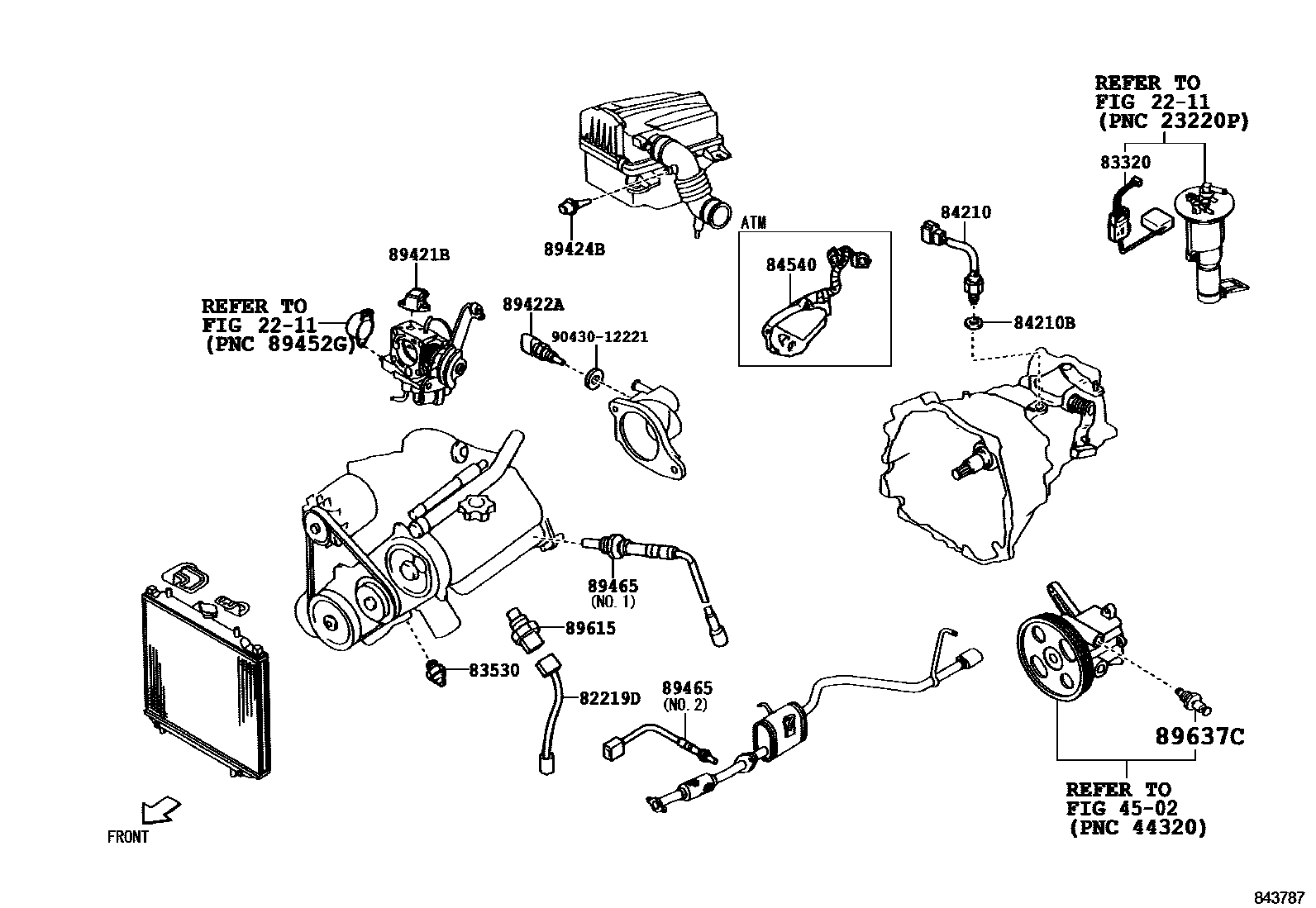

Toyota SPARKY — SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1

2211

4502

82219DWIRE, SENSOR

main82219-97401iS221,231200009

83320GAGE ASSY, FUEL SENDER

main77501-97501iS221,231200009

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-87205iS221,231200009-200012

sub83530-97202

main83530-97401iS221,231200101

84210SWITCH ASSY, BACK-UP LAMP

main84210-87514iS221,231..5MT200009-200203

main84210-97501iS221,231..5MT..X200204

sub84210-B4020

84210BGASKET, BACK-UP LAMP SWITCH

main90044-30186iS221,231..5MT200009

84540SWITCH ASSY, NEUTRAL START

main84540-97501iS221,231..4AT200009-200109

main84540-97502iS221,231..ATM200109

sub84540-B0010

89421BSENSOR, VACUUM

main89420-97204iS221,231200009

89422ASENSOR, WATER TEMPERATURE

main89422-16010iS221,231200009

89424BSWITCH, INLET AIR TEMPERATURE

main89424-87703iS221,231200009

89465SENSOR, OXYGEN

main89465-97212iS221,231200206

main89465-97407iS221,231200009-200206

main89465-97502iS221,231200009

89615SENSOR, KNOCK CONTROL

main89615-97401iS221,231200009

89637CSENSOR, OIL PRESSURE

main89630-97201iS221,231200009-200303

9043012221

main90430-12221

15 parts on this diagram · 5 diagrams in section
