Toyota SPARKY — SLIDE ROLLER & RAIL

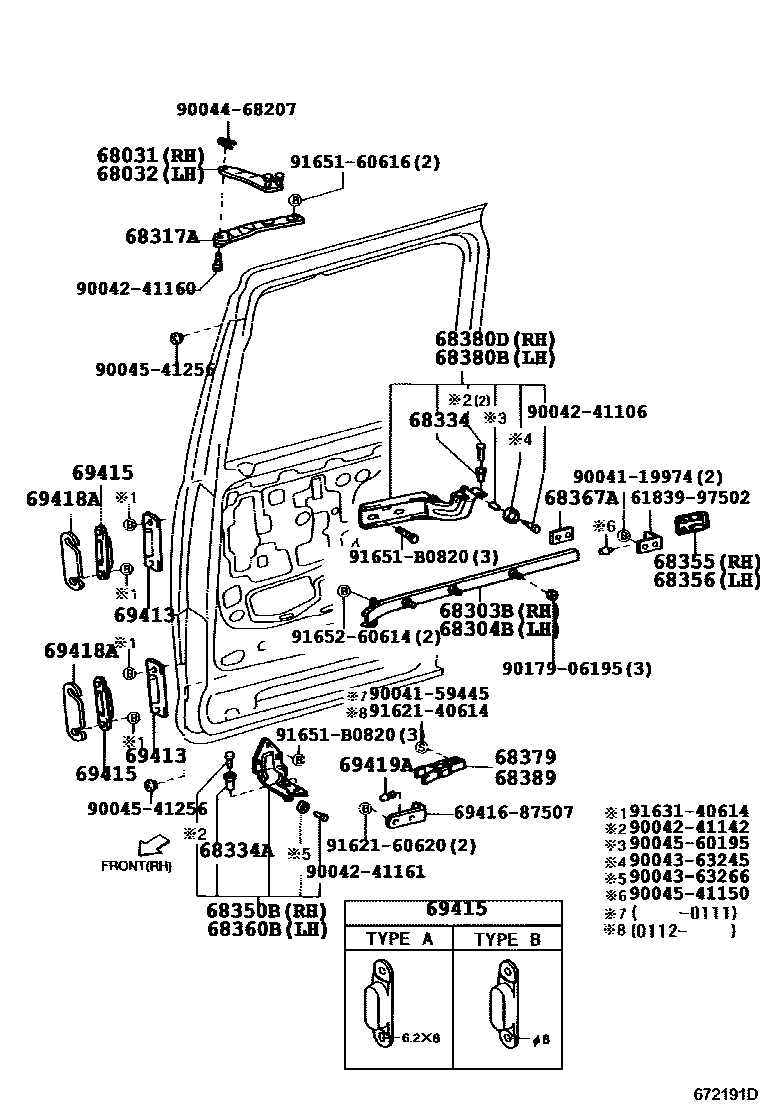

Parts diagram

68031ARM SUB-ASSY, SLIDE DOOR UPPER ROLLER, RH

main68031-97501i200009

68032ARM SUB-ASSY, SLIDE DOOR UPPER ROLLER, LH

main68032-97501i200009

68303BRAIL SUB-ASSY, SLIDE DOOR, CENTER RH

main61807-97502i200009

main61807-97503-01i200009

BLACK M.,6A5

main61807-97503-02i200009-200106

RED MC.,3K3

main61807-97503-03i200009

SILVER M.,1C0

main61807-97503-04i200009-200206

DARK BLUE M. M.,B42

main61807-97503-08i200009

WHITE,056

main61807-97503-09i200106

CHAMPGNE ME.,583

main61807-97503-13i200206

GREENISH SIL. M.,S29

main61807-97503-18i200009

WHITE PEARL MC.,W16

68304BRAIL SUB-ASSY, SLIDE DOOR, CENTER LH

main61808-97502i200009

main61808-97503-01i200009

BLACK M.,6A5

main61808-97503-02i200009-200106

RED MC.,3K3

main61808-97503-03i200009

SILVER M.,1C0

main61808-97503-04i200009-200206

DARK BLUE M. M.,B42

main61808-97503-08i200009

WHITE,056

main61808-97503-09i200106

CHAMPGNE ME.,583

main61808-97503-13i200206

GREENISH SIL. M.,S29

main61808-97503-18i200009

WHITE PEARL MC.,W16

68317ASTOPPER, SLIDE DOOR UPPER RAIL

main68317-97501i200009

main68318-97501i200009

68334ROLLER, SLIDE DOOR CENTER, NO.2

main68334-87503×4i200009

68334AROLLER, FRONT SLIDE DOOR CENTER GUIDE

main68332-87501×2i200009

68350BROLLER ASSY, SLIDE DOOR, LOWER RH

main68350-97502i200009

68355GARNISH, SLIDE DOOR CENTER RAIL, RH

main75651-97504-01i200009

BLACK M.,6A5

main75651-97504-02i200009-200106

RED MC.,3K3

main75651-97504-03i200009

SILVER M.,1C0

main75651-97504-04i200009-200206

DARK BLUE M. M.,B42

main75651-97504-08i200009

WHITE,056

main75651-97504-09i200106

CHAMPGNE ME.,583

main75651-97504-13i200206

GREENISH SIL. M.,S29

main75651-97504-18i200009

WHITE PEARL MC.,W16

68356GARNISH, SLIDE DOOR CENTER RAIL, LH

main75652-97504-01i200009

BLACK M.,6A5

main75652-97504-02i200009-200106

RED MC.,3K3

main75652-97504-03i200009

SILVER M.,1C0

main75652-97504-04i200009-200206

DARK BLUE M. M.,B42

main75652-97504-08i200009

WHITE,056

main75652-97504-09i200106

CHAMPGNE ME.,583

main75652-97504-13i200206

GREENISH SIL. M.,S29

main75652-97504-18i200009

WHITE PEARL MC.,W16

68360BROLLER ASSY, SLIDE DOOR, LOWER LH

main68360-97502i200009

68367APAD, SLIDE DOOR CENTER RAIL

main68367-97503×2i200009

68379SPRING, SLIDE DOOR CATCH, RH

main68326-87502i200009-200111

main68379-97501i200112

68380BHINGE ASSY, SLIDE DOOR, CENTER LH

main68390-87505i200009

68380DHINGE ASSY, SLIDE DOOR, CENTER RH

main68380-87505i200009

68389SPRING, SLIDE DOOR CATCH, LH

main68326-87502i200009-200111

main68389-97501i200112

69413STOP, SLIDE DOOR DOWN MALE

main69413-97501×4i200009

69415STOPPER, SLIDE DOOR DOWN FEMALE

main69414-87503×4i200009

main69414-87504×4i200009

69418ASHIM, FRONT SLIDE DOOR DOWN STOP MALE

main69418-87501i200009

69419APLUG, SLIDE DOOR OPEN STOP COVER

main69419-87502×2i200009

6183997502BRACKET, REAR DOOR CENTER RAIL, REAR

main61839-97502

6941687507STRIKER, DOOR LOCK

main69416-87507

9004119974

main90041-19974

9004159445

main90041-59445

9004241106

main90042-41106

9004241142

main90042-41142

9004241160

main90042-41160

9004241161

main90042-41161

9004363245

main90043-63245

9004363266

main90043-63266

9004468207

main90044-68207

9004541150

main90045-41150

9004541256

main90045-41256

9004560195

main90045-60195

9017906195

main90179-06195

9162140614

main91621-40614

9162160620

main91621-60620

9163140614

main91631-40614

9165160616

main91651-60616

91651B0820

main91651-B0820

9165260614

main91652-60614

41 parts on this diagram · 1 diagram in section

SLIDE ROLLER & RAIL for Toyota SPARKY

This section contains 41 genuine Toyota parts for the SLIDE ROLLER & RAIL system of the Toyota SPARKY. Key components include: ARM SUB-ASSY, SLIDE DOOR UPPER ROLLER, RH, ARM SUB-ASSY, SLIDE DOOR UPPER ROLLER, LH, RAIL SUB-ASSY, SLIDE DOOR, CENTER RH, RAIL SUB-ASSY, SLIDE DOOR, CENTER LH, STOPPER, SLIDE DOOR UPPER RAIL.
