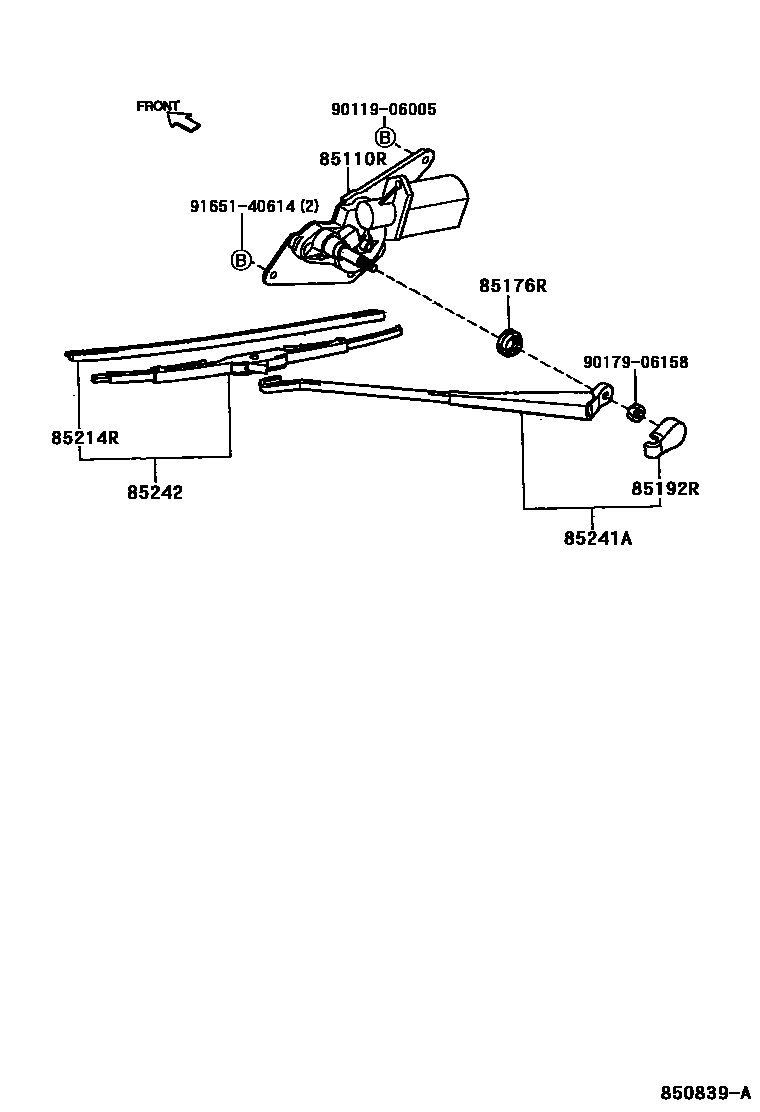

Toyota SPARKY — REAR WIPER
85110RMOTOR ASSY, REAR WIPER
85176RCAP, REAR WIPER LINK
85192RCOVER, REAR WIPER ARM
85214RRUBBER, REAR WIPER
85241AARM, REAR WIPER
85242BLADE, RR WIPER
9011906005
main90119-06005
9017906158
main90179-06158
9165140614
main91651-40614
9 parts on this diagram · 1 diagram in section
REAR WIPER for Toyota SPARKY
This section contains 9 genuine Toyota parts for the REAR WIPER system of the Toyota SPARKY. Key components include: MOTOR ASSY, REAR WIPER, CAP, REAR WIPER LINK, COVER, REAR WIPER ARM, RUBBER, REAR WIPER, ARM, REAR WIPER.
