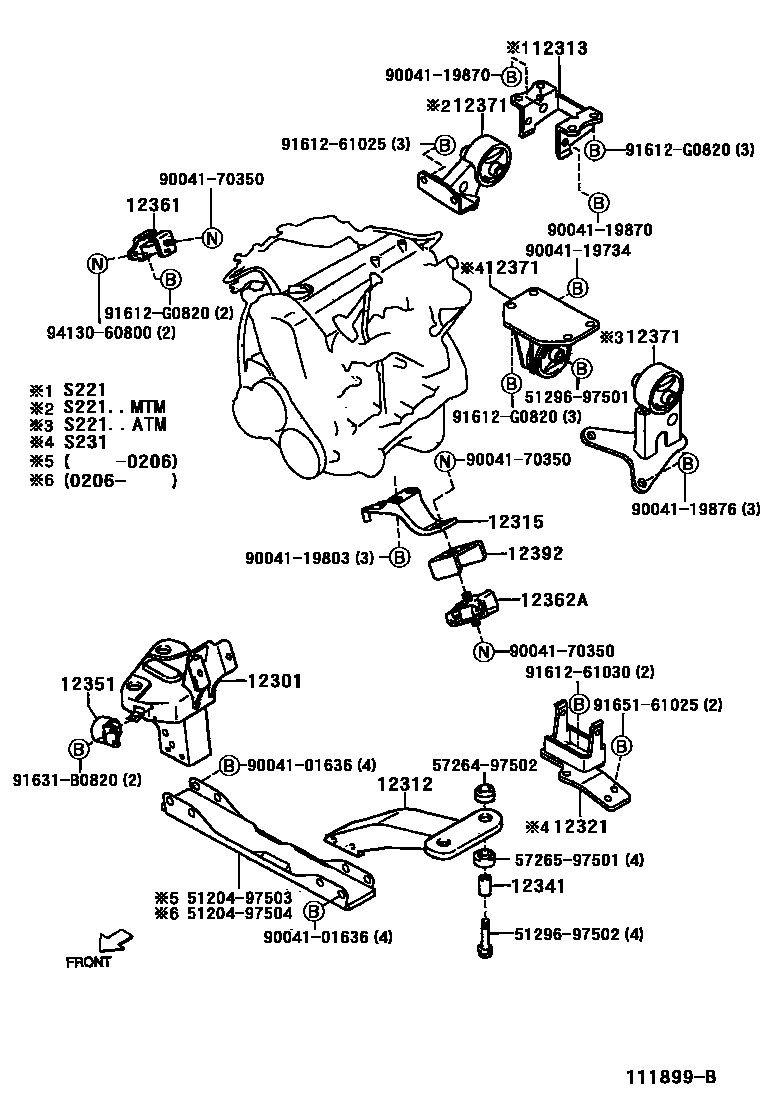

Toyota SPARKY — MOUNTING
12301BRACKET SUB-ASSY, ENGINE MOUNTING, FRONT RH
12312BRACKET, ENGINE MOUNTING, FRONT NO.2
12313BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE)
12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12321BRACKET, ENGINE MOUNTING, REAR, NO.1
12341SPACER, ENGINE MOUNTING
12351DAMPER, ENGINE MOUNTING
12361INSULATOR, ENGINE MOUNTING, FRONT
12362AINSULATOR, ENGINE MOUNTING, FRONT LH
12371INSULATOR, ENGINE MOUNTING, REAR NO.1
12392INSULATOR, ENGINE MOUNTING HEAT, FRONT LH
5120497503CROSSMEMBER SUB-ASSY, FRAME, NO.3
main51204-97503
5120497504CROSSMEMBER SUB-ASSY, FRAME, NO.3
main51204-97504
5129697501BOLT, FRONT SUSPENSION MEMBER MOUNTING
main51296-97501
5129697502BOLT, FRONT SUSPENSION MEMBER MOUNTING
main51296-97502
5726497502
main57264-97502
5726597501
main57265-97501
9004101636
main90041-01636
9004119734
main90041-19734
9004119803
main90041-19803
9004119870
main90041-19870
9004119876
main90041-19876
9004170350
main90041-70350
9161261025
main91612-61025
9161261030
main91612-61030
91612G0820
main91612-G0820
91631B0820
main91631-B0820
9165161025
main91651-61025
9413060800
main94130-60800
29 parts on this diagram · 1 diagram in section
MOUNTING for Toyota SPARKY
This section contains 29 genuine Toyota parts for the MOUNTING system of the Toyota SPARKY. Key components include: BRACKET SUB-ASSY, ENGINE MOUNTING, FRONT RH, BRACKET, ENGINE MOUNTING, FRONT NO.2, BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE), BRACKET, ENGINE MOUNTING, FRONT NO.1 LH, BRACKET, ENGINE MOUNTING, REAR, NO.1.
