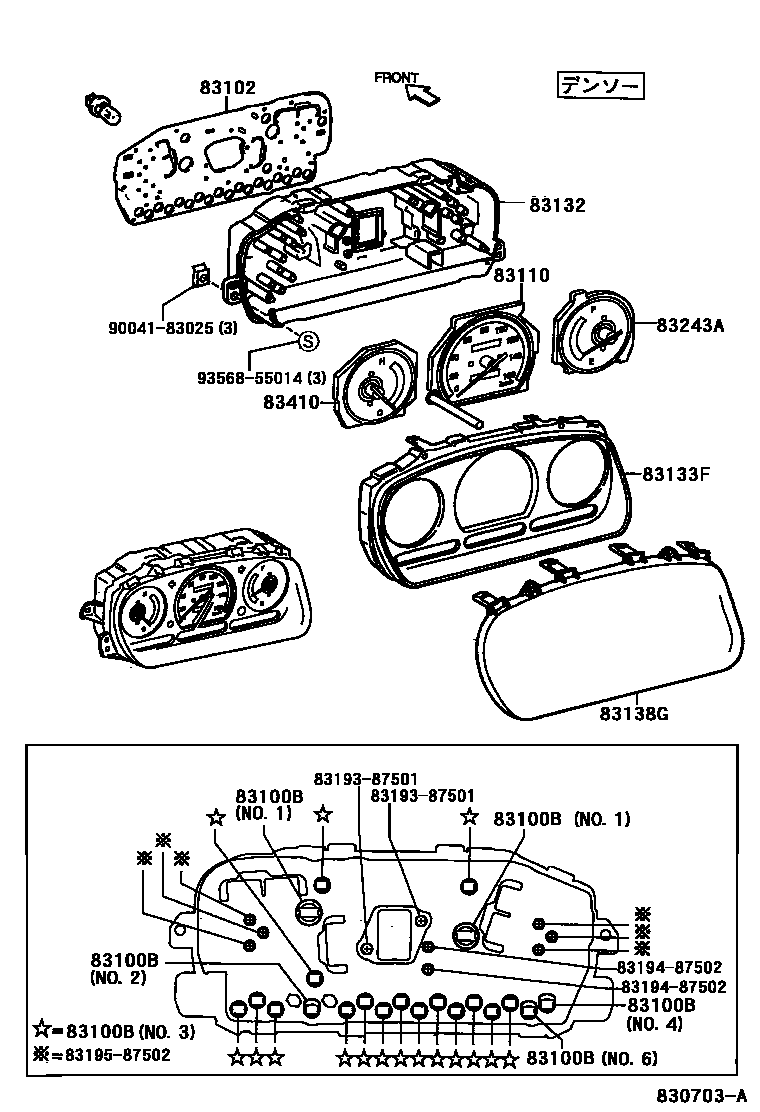

Toyota SPARKY — METER
83100METER ASSY, COMBINATION
83100BBULB, COMBINATION METER, NO.1
83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
83132CASE, COMBINATION METER
83138GGLASS, COMBINATION METER
83243AGAUGE SUB-ASSY, FUEL RECEIVER
83410GAGE ASSY, WATER TEMPERATURE RECEIVER
8319387501
main83193-87501
8319487502
main83194-87502
8319587502
main83195-87502
9004183025
main90041-83025
9356855014
main93568-55014
14 parts on this diagram · 6 diagrams in section
METER for Toyota SPARKY
This section contains 28 genuine Toyota parts for the METER system of the Toyota SPARKY. Key components include: METER ASSY, COMBINATION, BULB, COMBINATION METER, NO.1, PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1, SPEEDOMETER ASSY, CASE, COMBINATION METER.
