Toyota SPARKYHOOD LOCK & HINGE

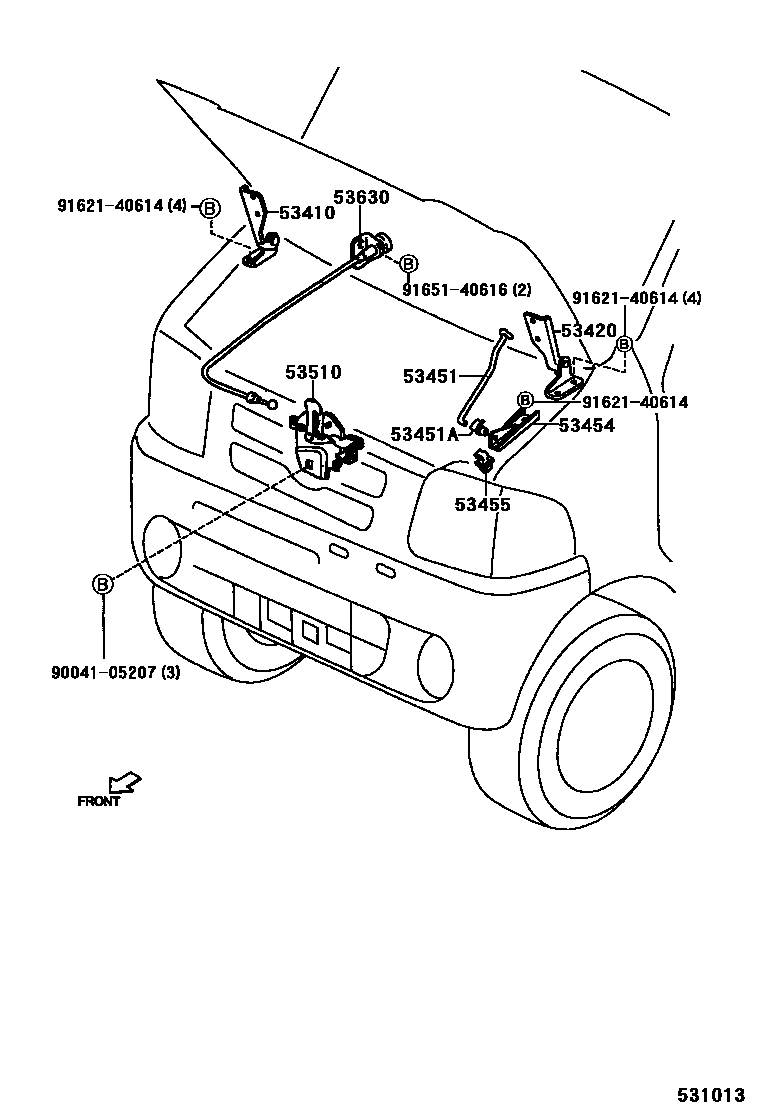

Parts diagram
53410HINGE ASSY, HOOD, RH
main53401-97501i200009
53420HINGE ASSY, HOOD, LH
main53402-97501i200009
53451ROD, HOOD SUPPORT
main53451-97501i200009
53451AGROMMET(FOR HOOD SUPPORT ROD)
main90044-67461i200009
53454CLIP, HOOD SUPPORT ROD
main53559-97501i200009
53455CLAMP, HOOD SUPPORT ROD
main53455-97501i200009
53510LOCK ASSY, HOOD
main53510-87212i200009
53630CABLE ASSY, HOOD LOCK CONTROL
main53630-97501i200009
9004105207
9162140614
9165140616

11 parts on this diagram · 1 diagram in section

HOOD LOCK & HINGE for Toyota SPARKY

This section contains 11 genuine Toyota parts for the HOOD LOCK & HINGE system of the Toyota SPARKY. Key components include: HINGE ASSY, HOOD, RH, HINGE ASSY, HOOD, LH, ROD, HOOD SUPPORT, GROMMET(FOR HOOD SUPPORT ROD), CLIP, HOOD SUPPORT ROD.
