Toyota SPARKY — HEADLAMP

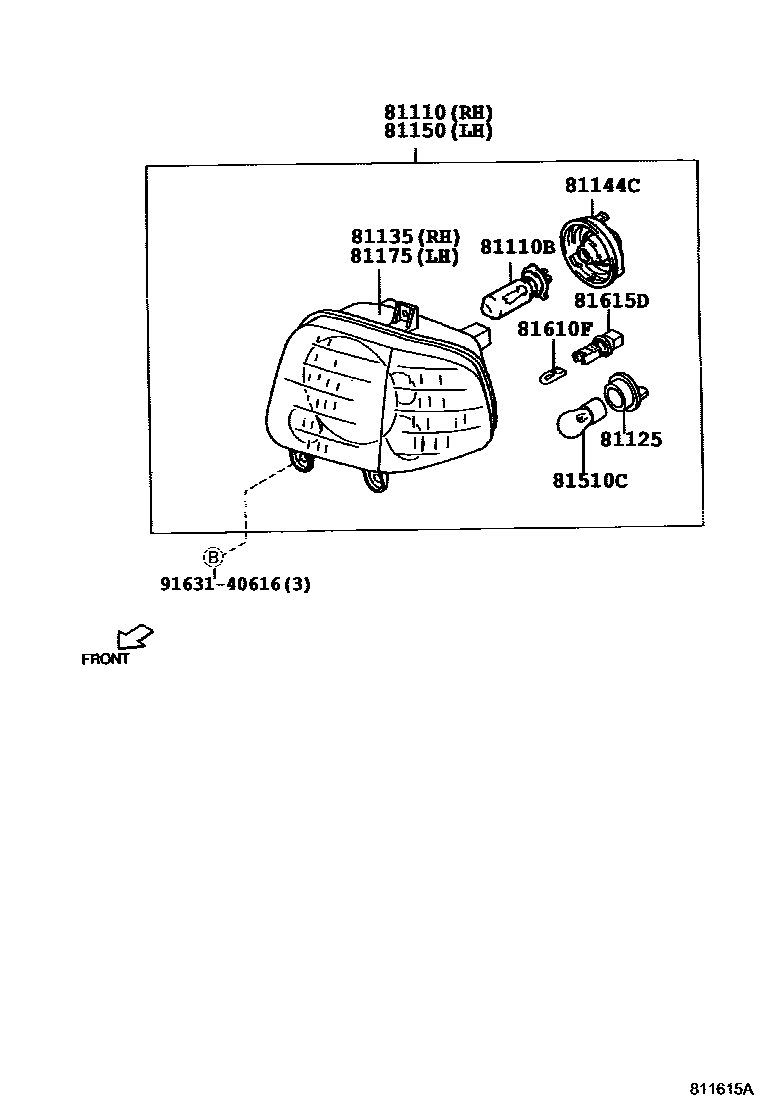

Parts diagram

81110HEADLAMP ASSY, RH

main81110-97521i200009-200206

main81110-97529i200206

main81110-97530i200206

81110BBULB(FOR HEADLAMP, NO.1)

main90049-51071×2i200009

81125CORD, HEADLAMP

main81165-97501×2i200206

main81515-87703×2i200206

81135UNIT ASSY, HEADLAMP, RH

main81130-97504i200206

main81130-97505i200206

main81130-97520i200009-200206

81144CCOVER, HEADLAMP SOCKET

main81139-87102×2i200206

main81139-87204×2i200206

81150HEADLAMP ASSY, LH

main81150-97518i200009-200206

main81150-97526i200206

main81150-97527i200206

81175UNIT ASSY, HEADLAMP, LH

main81170-97504i200206

main81170-97505i200206

main81170-97517i200009-200206

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90049-51128×2i200009

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×2i200009

81615DSOCKET, CLEARANCE LAMP

main81179-97202×2i200009

9163140616

main91631-40616

11 parts on this diagram · 1 diagram in section

HEADLAMP for Toyota SPARKY

This section contains 11 genuine Toyota parts for the HEADLAMP system of the Toyota SPARKY. Key components include: HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), CORD, HEADLAMP, UNIT ASSY, HEADLAMP, RH, COVER, HEADLAMP SOCKET.
