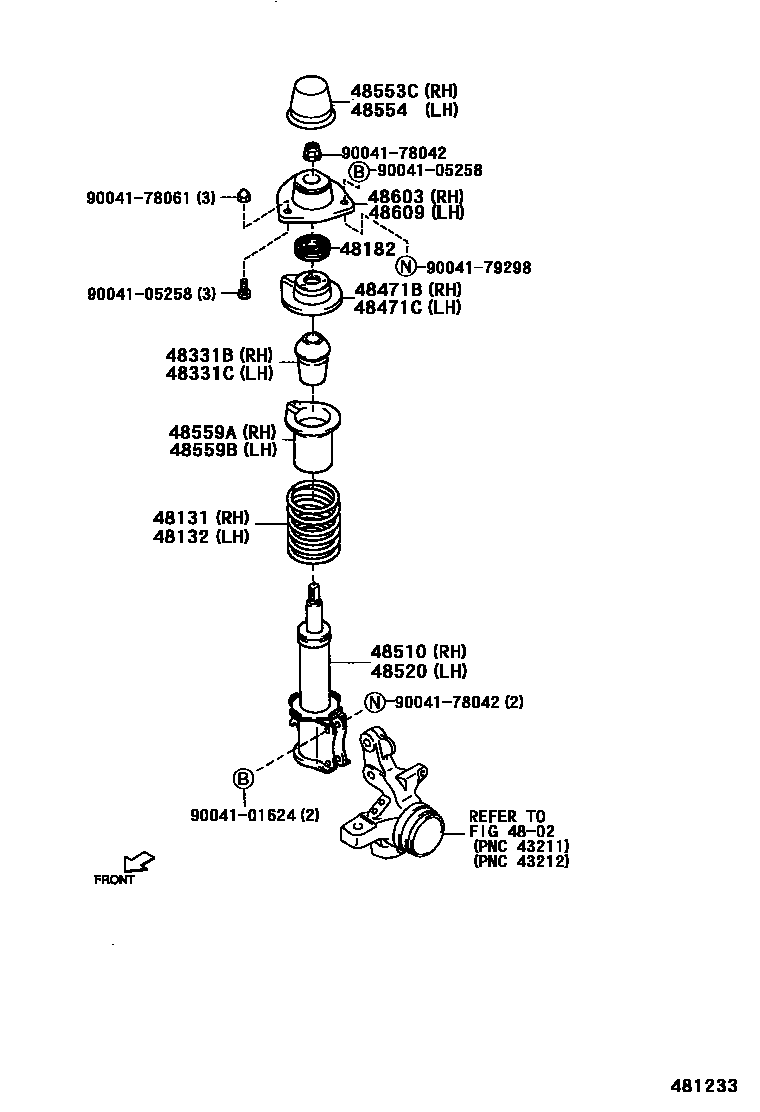

Toyota SPARKY — FRONT SPRING & SHOCK ABSORBER
4802FRONT AXLE ARM & STEERING KNUCKLE
48131SPRING, FRONT COIL, RH
48132SPRING, FRONT COIL, LH
48182BUSH, FRONT SPRING
48331BBUMPER, FRONT SPRING, RH
48331CBUMPER, FRONT SPRING, LH
48471BSEAT, FRONT COIL SPRING, UPPER RH
48471CSEAT, FRONT COIL SPRING, UPPER LH
48510ABSORBER ASSY, SHOCK, FRONT RH
48520ABSORBER ASSY, SHOCK, FRONT LH
48553CCAP, FRONT SHOCK ABSORBER, RH
GRAY
48554CAP, FRONT SHOCK ABSORBER, LH
GRAY
48559ACOVER, FRONT SHOCK ABSORBER DUST, RH NO.1
48559BCOVER, FRONT SHOCK ABSORBER DUST, LH NO.1
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
9004101624
main90041-01624
9004105258
main90041-05258
9004178042
main90041-78042
9004178061
main90041-78061
9004179298
main90041-79298
21 parts on this diagram · 2 diagrams in section
FRONT SPRING & SHOCK ABSORBER for Toyota SPARKY
This section contains 31 genuine Toyota parts for the FRONT SPRING & SHOCK ABSORBER system of the Toyota SPARKY. Key components include: FRONT AXLE ARM & STEERING KNUCKLE, SPRING, FRONT COIL, RH, SPRING, FRONT COIL, LH, BUSH, FRONT SPRING, BUMPER, FRONT SPRING, RH.
