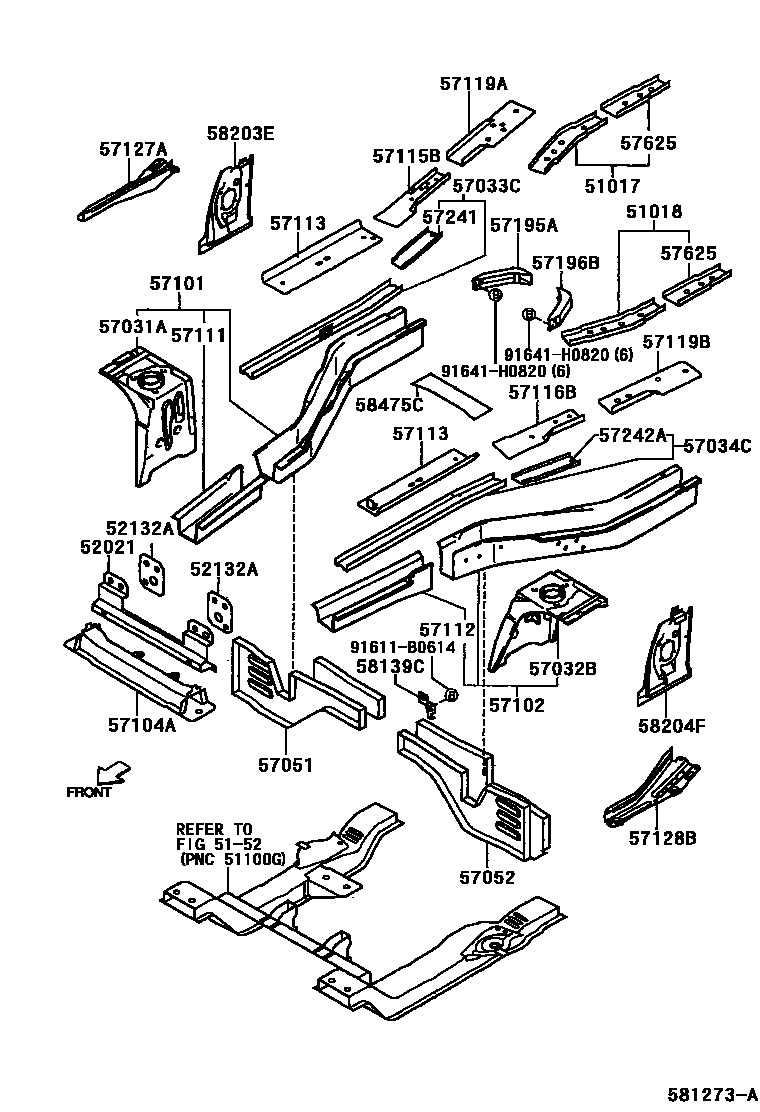

Toyota SPARKY — FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1 0002 1 0003 1 0004 1

51017REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 RH

main51017-97502iS221,231200009

51018REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 LH

main51018-97502iS221,231200009

5152

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-97501iS221,231200009

52132AREINFORCEMENT, FRONT BUMPER, NO.2

main52132-97501×2iS221,231200009

57031AREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57031-97506iS221,231200009

57032BREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57032-97506iS221,231200009

57033CREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.3 RH

main57033-97503iS221,231200009

57034CREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.3 LH

main57034-97502iS221,231200009

57051MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-97503iS221,231200009

57052MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-97503iS221,231200009

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-97514iS221,231200009

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-97512iS221,231200009

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-97503iS221,231200009

57111MEMBER, FRONT SIDE, RH

main57111-97505iS221,231200009

57112MEMBER, FRONT SIDE, LH

main57112-97504iS221,231200009

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-97503×2iS221,231200009

57115BPLATE, FRONT SIDE MEMBER, NO.1 RH

main57115-97503iS221,231200009-200201

main57115-97505iS221,231200201

57116BPLATE, FRONT SIDE MEMBER, NO.1 LH

main57106-97503iS221,231200009

57119APLATE, FRONT SIDE MEMBER, FRONT RH

main57119-97501iS221,231200009

57119BPLATE, FRONT SIDE MEMBER, FRONT LH

main57118-97502iS221,231200009

57127AREINFORCEMENT, FRONT SIDE MEMBER, NO.8 RH

main57127-97502iS221,231200009

57128BREINFORCEMENT, FRONT SIDE MEMBER, NO.8 LH

main57128-97502iS221,231200009

57195AREINFORCEMENT, FRONT SIDE MEMBER, FRONT RH

main57195-97501iS221,231200009

57196BREINFORCEMENT, FRONT SIDE MEMBER, FRONT LH

main57196-97501iS221,231200009

57241REINFORCEMENT, FRONT SIDE MEMBER, NO.5 RH

main57245-97502iS221,231200009

57242AREINFORCEMENT, FRONT SIDE MEMBER, NO.5 LH

main57246-97502iS221,231200009

57625REINFORCEMENT, REAR FLOOR SIDE MEMBER, RH

main57625-97501×2iS221,231200009

58139CBRACKET, HARNESS CLAMP

main58139-97502iS221,231200009

58203EPILLAR, CENTER BODY, INNER LOWER RH

main58203-97501iS221,231200009-200106

main58203-97504iS221,231200106

58204FPILLAR, CENTER BODY, INNER LOWER LH

main58204-97501iS221,231200009-200106

main58204-97504iS221,231200106

58475CPACKING, ENGIN SUB COVER, NO.3

main57475-97501iS221,231200009

91611B0614

main91611-B0614

91641H0820

main91641-H0820

34 parts on this diagram · 4 diagrams in section
