Toyota SPARKY — FRONT FENDER APRON & DASH PANEL

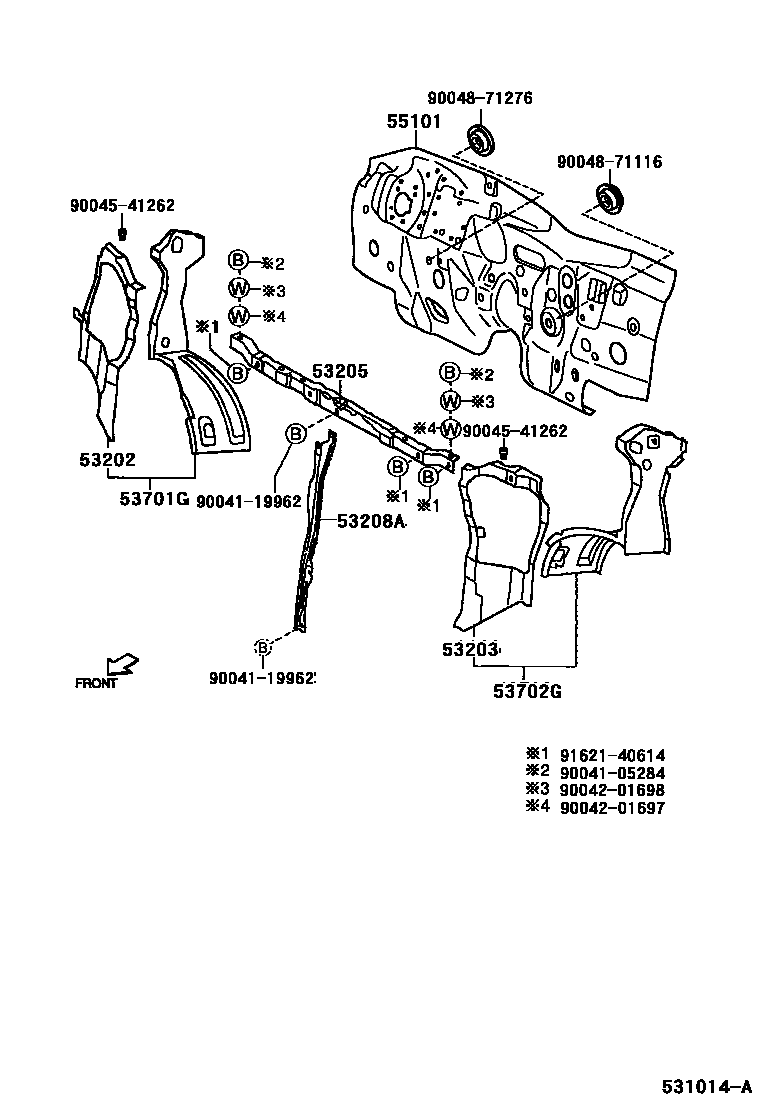

Parts diagram

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-97505i200009

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-97505i200009

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-97503i200009

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53215-97502i200009

53701GAPRON SUB-ASSY, FRONT FENDER, RH

main53701-97508i200009

53702GAPRON SUB-ASSY, FRONT FENDER, LH

main53702-97508i200009

55101PANEL SUB-ASSY, DASH

main55101-97528i200009

main55101-97530i200009

9004105284

main90041-05284

9004119962

main90041-19962

9004201697

main90042-01697

9004201698

main90042-01698

9004541262

main90045-41262

9004871116

main90048-71116

9004871276

main90048-71276

9162140614

main91621-40614

15 parts on this diagram · 1 diagram in section

FRONT FENDER APRON & DASH PANEL for Toyota SPARKY

This section contains 15 genuine Toyota parts for the FRONT FENDER APRON & DASH PANEL system of the Toyota SPARKY. Key components include: SUPPORT SUB-ASSY, RADIATOR, RH, SUPPORT SUB-ASSY, RADIATOR, LH, SUPPORT SUB-ASSY, RADIATOR, UPPER, SUPPORT SUB-ASSY, HOOD LOCK, APRON SUB-ASSY, FRONT FENDER, RH.
