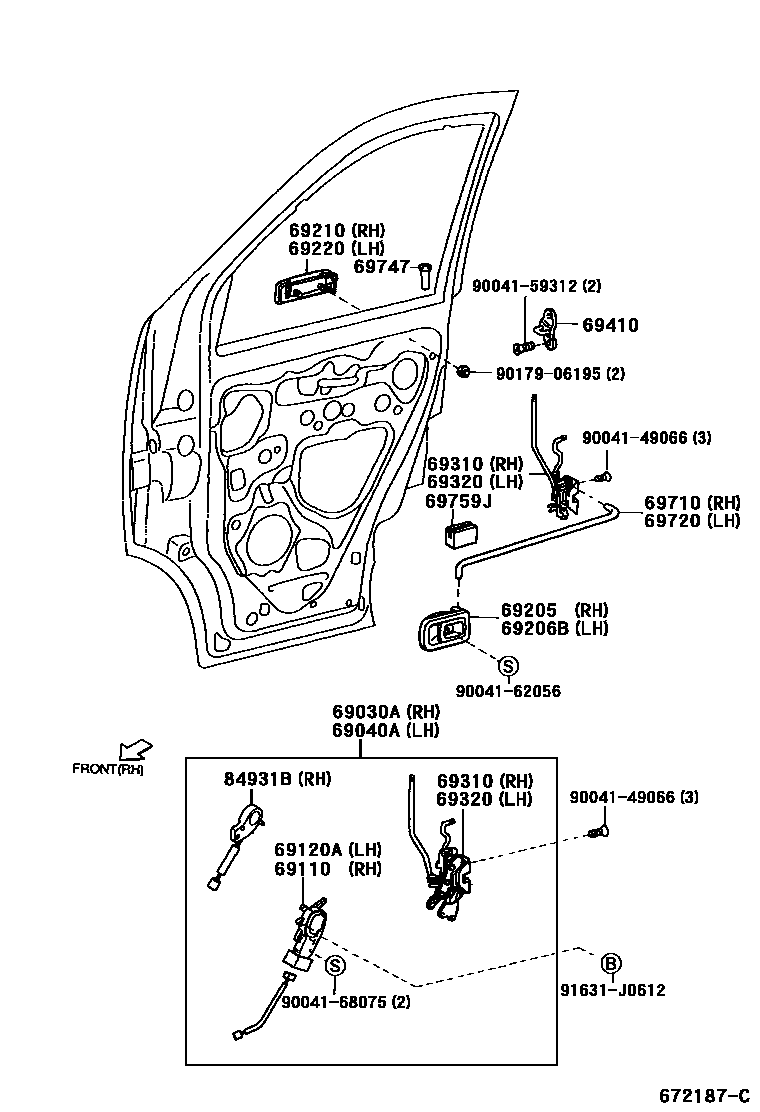

Toyota SPARKY — FRONT DOOR LOCK & HANDLE
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
69110ACTUATOR ASSY, FRONT DOOR LOCK, RH
69120AACTUATOR ASSY, FRONT DOOR LOCK, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
GRAY
GRAY
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
GRAY
GRAY
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
BLACK M.,6A5
SHAMPGNE ME.,583
RED MC,3K3
SILVER M.,1C0
DARK BLUE M.M.,B42
WHITE,056
GREENISH SOL. M.,S29
WHITE PEARL,W16
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
BLACK M.,6A5
SHAMPGNE ME.,583
RED MC,3K3
SILVER M.,1C0
DARK BLUE M.M.,B42
WHITE,056
GREENISH SIL. M.,S29
WHITE PEARL,W16
69310LOCK ASSY, FRONT DOOR, RH
69320LOCK ASSY, FRONT DOOR, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH
69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH
69747BUTTON, DOOR LOCKING
69759JSILENCER, DOOR LOCK LINK
84931BSWITCH, DOOR CONTROL
9004149066
main90041-49066
9004159312
main90041-59312
9004162056
main90041-62056
9004168075
main90041-68075
9017906195
main90179-06195
91631J0612
main91631-J0612
22 parts on this diagram · 2 diagrams in section
FRONT DOOR LOCK & HANDLE for Toyota SPARKY
This section contains 24 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota SPARKY. Key components include: LOCK ASSY, FRONT DOOR W/MOTOR, RH, LOCK ASSY, FRONT DOOR W/MOTOR, LH, ACTUATOR ASSY, FRONT DOOR LOCK, RH, ACTUATOR ASSY, FRONT DOOR LOCK, LH, HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH.
