Toyota SPARKY — FRONT DISC BRAKE CALIPER & DUST COVER

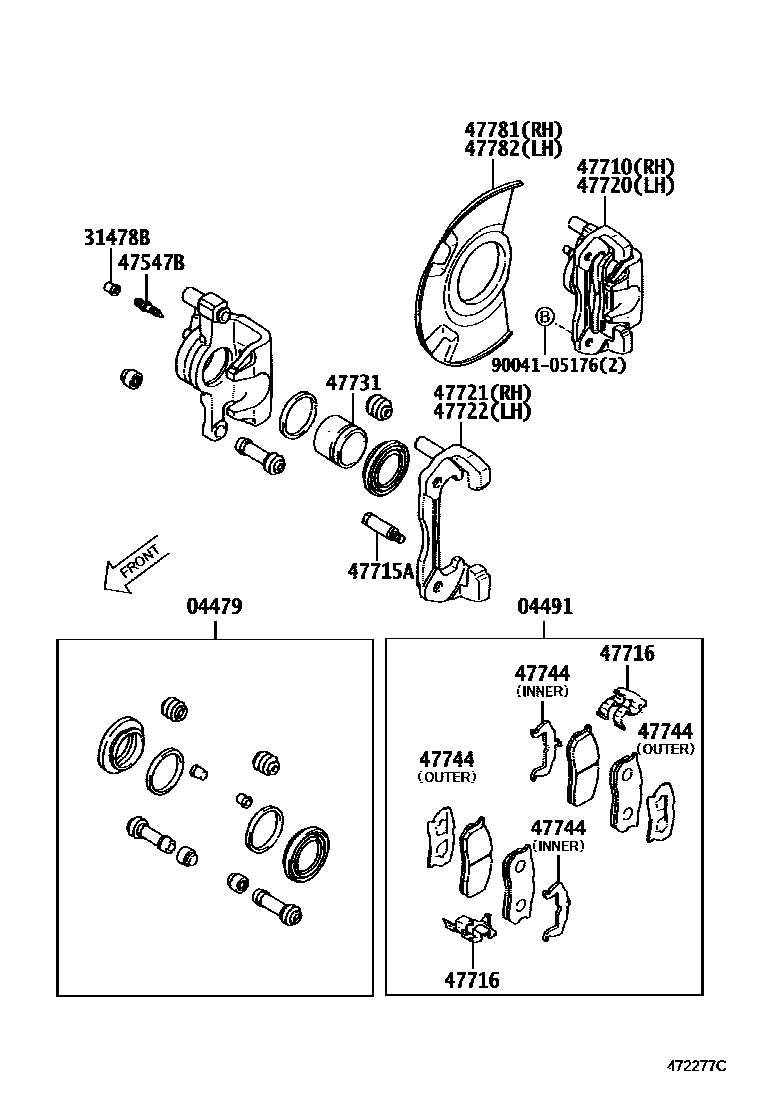

Parts diagram

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-97502i200009

04491PAD KIT, DISC BRAKE, FRONT

main04491-97505i200009-200206

main04491-97507i200206

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main47548-87502×2i200009

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-87504×2i200009

47710CALIPER ASSY, DISC BRAKE, FRONT, RH

main47710-97504i200009-200206

main47710-97506i200206

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-87502×2i200009

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47736-97501×2i200009-200206

main47736-97503×2i200206

47720CALIPER ASSY, DISC BRAKE, FRONT, LH

main47720-97504i200009-200206

main47720-97506i200206

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-97501i200009-200206

main47721-97503i200206

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-97501i200009-200206

main47722-97503i200206

47731PISTON, FRONT DISC BRAKE

main47731-87502×2i200009

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-97501×2i200206

main47744-97502×2i200009

main47744-97503×2i200009-200206

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-97504i200009-200206

main47781-97506i200206

47782COVER, DISC BRAKE DUST, FRONT LH

main47781-97505i200009-200206

main47781-97507i200206

9004105176

main90041-05176

15 parts on this diagram · 1 diagram in section

FRONT DISC BRAKE CALIPER & DUST COVER for Toyota SPARKY

This section contains 15 genuine Toyota parts for the FRONT DISC BRAKE CALIPER & DUST COVER system of the Toyota SPARKY. Key components include: CYLINDER KIT, DISC BRAKE, FRONT, PAD KIT, DISC BRAKE, FRONT, CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE), PLUG, BLEEDER(FOR FRONT DISC BRAKE), CALIPER ASSY, DISC BRAKE, FRONT, RH.
