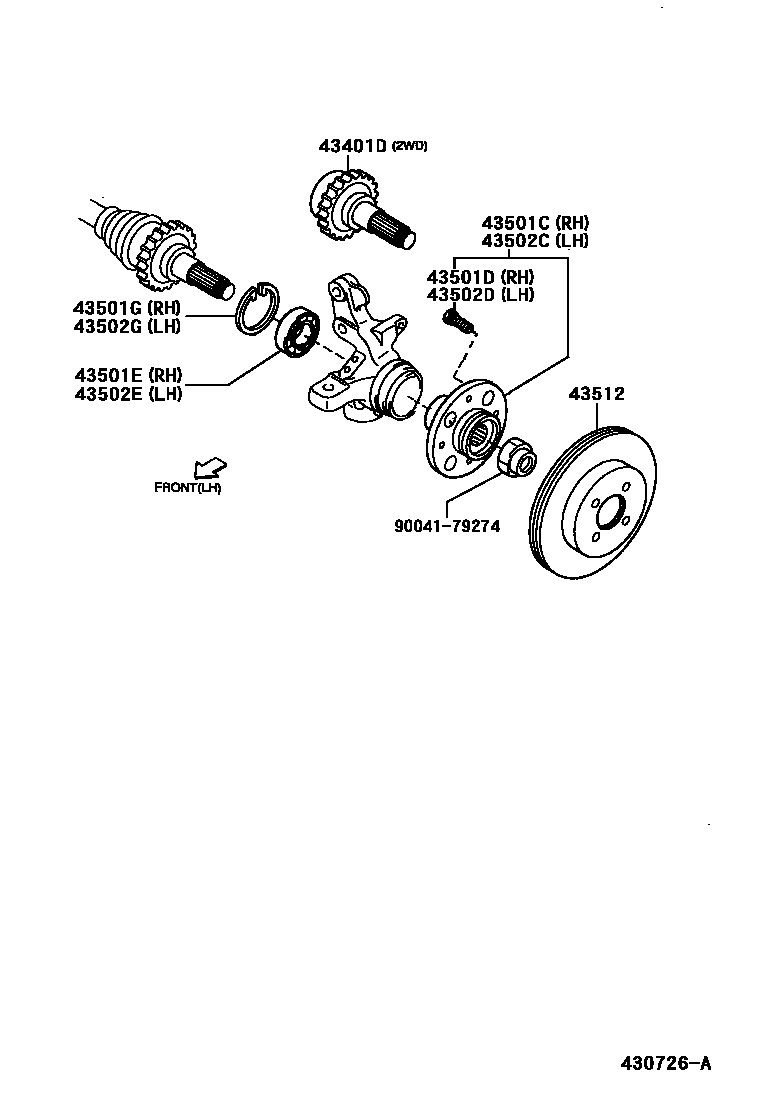

Toyota SPARKY — FRONT AXLE HUB

43401DSPINDLE SUB-ASSY, STEERING KNUCKLE

main43401-97503×2i200009

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-97201i200009

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90049-12056×4i200009

43501EBEARING (FOR FRONT AXLE HUB RH)

main90043-63150i200009

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90045-21163i200009

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-97201i200009

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90049-12056×4i200009

43502EBEARING (FOR FRONT AXLE HUB LH)

main90043-63150i200009

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90045-21163i200009

43512DISC, FRONT

main43512-97505×2i200009-200206

main43512-97506×2i200009-200206

main43512-97507×2i200206

main43512-97508×2i200206

9004179274

main90041-79274

11 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota SPARKY

This section contains 11 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota SPARKY. Key components include: SPINDLE SUB-ASSY, STEERING KNUCKLE, HUB SUB-ASSY, FRONT AXLE, RH, BOLT, HUB (FOR FRONT AXLE RH), BEARING (FOR FRONT AXLE HUB RH), RING, HOLE SNAP (FOR FRONT AXLE HUB RH).
