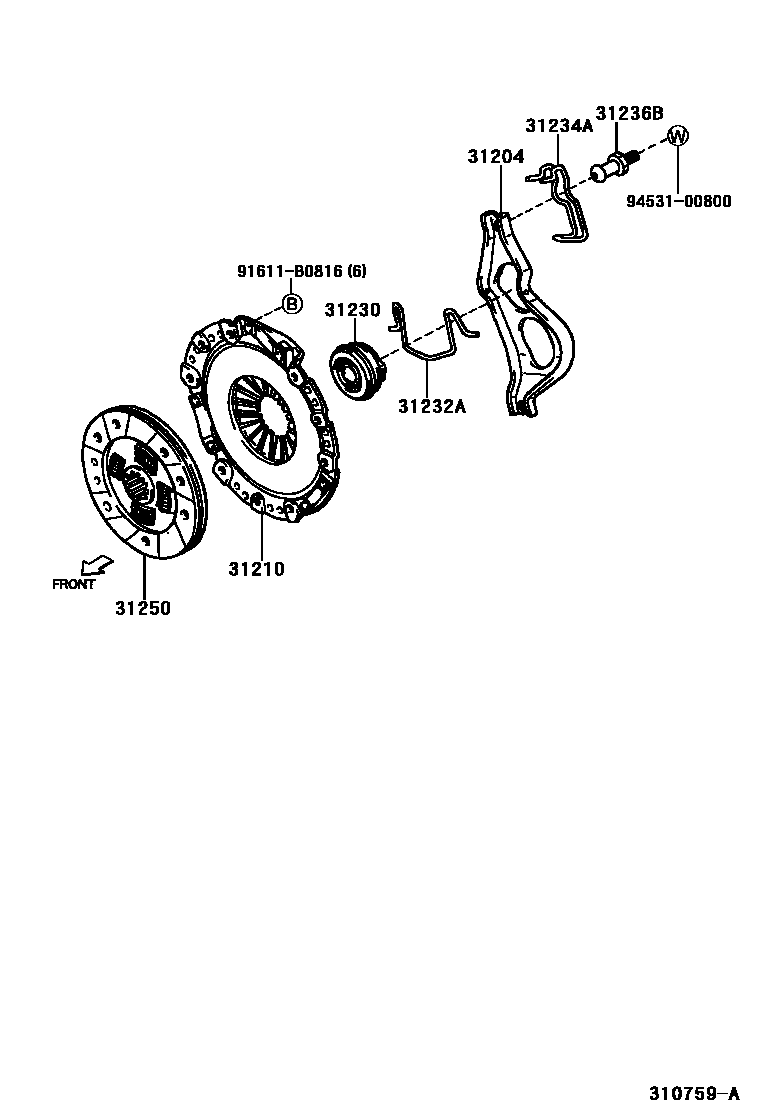

Toyota SPARKY — CLUTCH & RELEASE FORK

31204FORK SUB-ASSY, CLUTCH RELEASE

main31233-97501i200009

31210COVER ASSY, CLUTCH

main31210-97501i200009

31230BEARING ASSY, CLUTCH RELEASE

main31230-87507i200009

main31230-97502i200009

31232ACLIP, RELEASE BEARING HUB

main31232-87505i200009

31234ASPRING, RELEASE FORK SUPPORT

main31234-87402i200009

31236BSUPPORT, RELEASE FORK

main31236-87501i200009

31250DISC ASSY, CLUTCH

main31250-87404i200009

91611B0816

main91611-B0816

9453100800

main94531-00800

9 parts on this diagram · 1 diagram in section

CLUTCH & RELEASE FORK for Toyota SPARKY

This section contains 9 genuine Toyota parts for the CLUTCH & RELEASE FORK system of the Toyota SPARKY. Key components include: FORK SUB-ASSY, CLUTCH RELEASE, COVER ASSY, CLUTCH, BEARING ASSY, CLUTCH RELEASE, CLIP, RELEASE BEARING HUB, SPRING, RELEASE FORK SUPPORT.
