Toyota SPARKY — ARMREST & VISOR

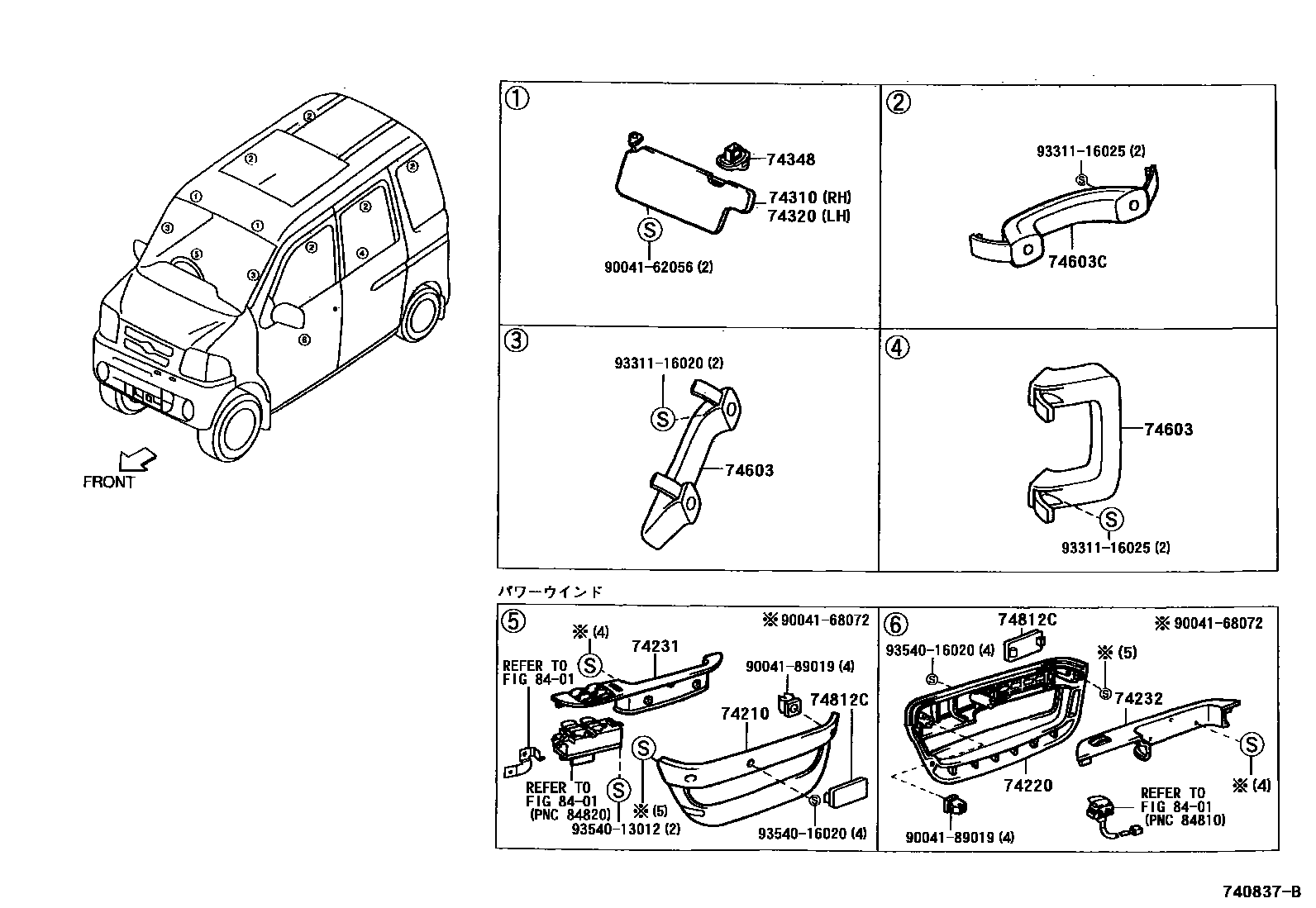

Parts diagram
74210ARMREST ASSY, FRONT, RH
main74211-97501-03i200106
main74211-97502-03i200106
GRAY
74220ARMREST ASSY, FRONT, LH
main74212-87501-23i200106
main74212-97501-03i200106
GRAY
74231PANEL, FRONT ARMREST BASE, UPPER RH
main74221-97501-13i200009-200106
GRAY
main74221-97505-03i200009-200106
main74221-97506-01i200009-200106
BLACK
main74221-97507-01i200009-200106
main74221-97510-03i200106
GRAY
main74221-97511-03i200106
main74221-97515-01i200106-200206
main74221-97516-01i200106-200206
main74221-97519-01i200206
main74221-97520-01i200206
74232PANEL, FRONT ARMREST BASE, UPPER LH
main74222-97501-13i200106
main74222-97505-01i200009-200106
BLACK
main74222-97507-03i200106
GRAY
main74222-97509-01i200106-200206
main74222-97511-01i200206
74310VISOR ASSY, RH
main74310-97513-13i200009-200206
GRAY
main74310-97514-13i200009-200206
GRAY
main74310-97519-03i200206
GRAY
74320VISOR ASSY, LH
main74320-97504-23i200009-200206
GRAY
main74320-97507-03i200206
GRAY
main74320-97507-23i200009-200206
GRAY
74348HOLDER, VISOR
main74348-97201-23×2i200009
GRAY
74603GRIP SUB-ASSY, ASSIST, FRONT
main74610-97501-03×3i200009
GRAY
74603CGRIP SUB-ASSY, ASSIST
main74611-87205-23×5i200009
GRAY
74812CCOVER, DOOR PULL HANDLE
main74812-97501-03×8i200106
GRAY
8401SWITCH & RELAY & COMPUTER
→ Go to FIG 84-01
9004162056
main90041-62056
9004168072
main90041-68072
9004189019
main90041-89019
9331116020
main93311-16020
9331116025
main93311-16025
9354013012
main93540-13012
9354016020
main93540-16020

18 parts on this diagram · 1 diagram in section

ARMREST & VISOR for Toyota SPARKY

This section contains 18 genuine Toyota parts for the ARMREST & VISOR system of the Toyota SPARKY. Key components include: ARMREST ASSY, FRONT, RH, ARMREST ASSY, FRONT, LH, PANEL, FRONT ARMREST BASE, UPPER RH, PANEL, FRONT ARMREST BASE, UPPER LH, VISOR ASSY, RH.
