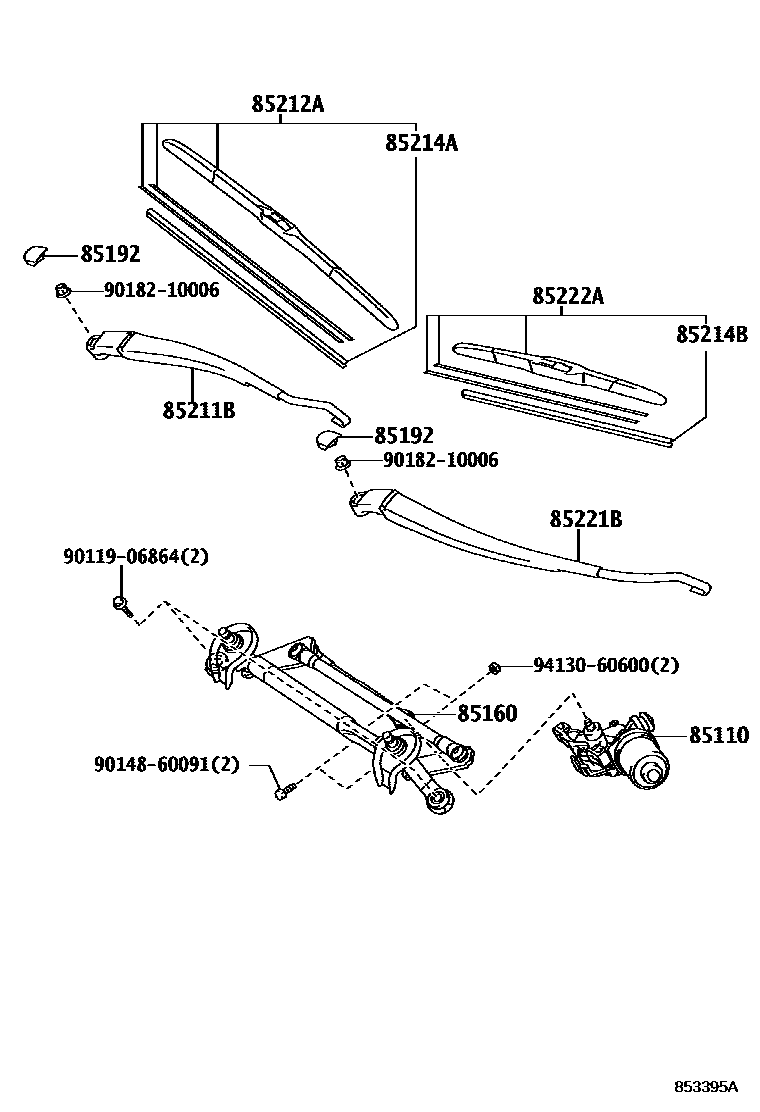

Toyota SPADE — WINDSHIELD WIPER
85110MOTOR ASSY, WINDSHIELD WIPER
85160LINK ASSY, WINDSHIELD WIPER
85192COVER, WINDSHIELD WIPER ARM
85211BARM, FRONT WIPER, RH
85212ABLADE, FR WIPER, RH
85214ARUBBER, WIPER, RH
85214BRUBBER, WIPER, LH
85221BARM, FRONT WIPER, LH
85222ABLADE, FR WIPER, LH
9011906864
main90119-06864
9014860091
main90148-60091
9018210006
main90182-10006
9413060600
main94130-60600
13 parts on this diagram · 1 diagram in section
WINDSHIELD WIPER for Toyota SPADE
This section contains 13 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota SPADE. Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, COVER, WINDSHIELD WIPER ARM, ARM, FRONT WIPER, RH, BLADE, FR WIPER, RH.
