Toyota SPADE — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-12400i201507

ANGLE 0

main85381-12410i201507

ANGLE -2

main85381-12420i201507

ANGLE +2

8504REAR WASHER

→ Go to FIG 85-04

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-21010i201507

85330JAR ASSY, WINDSHIELD WASHER

main85315-52480i201507

85332CAP, WINDSHIELD WASHER JAR

main85316-16070i201507

85336JPROTECTOR, WASHER JAR

main85336-60300i201507

85349JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-10260i201507

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020i201507

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-62097i201507

L=2100

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-62099i201507

L=440

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-62102i201507-202012

L=150

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main82711-2C060i201507

85388CLAMP NO.2 (FOR WINDSEIELD WASHER)

main85371-12040i201507

8538752590CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-52590

9011906767

main90119-06767

15 parts on this diagram · 1 diagram in section

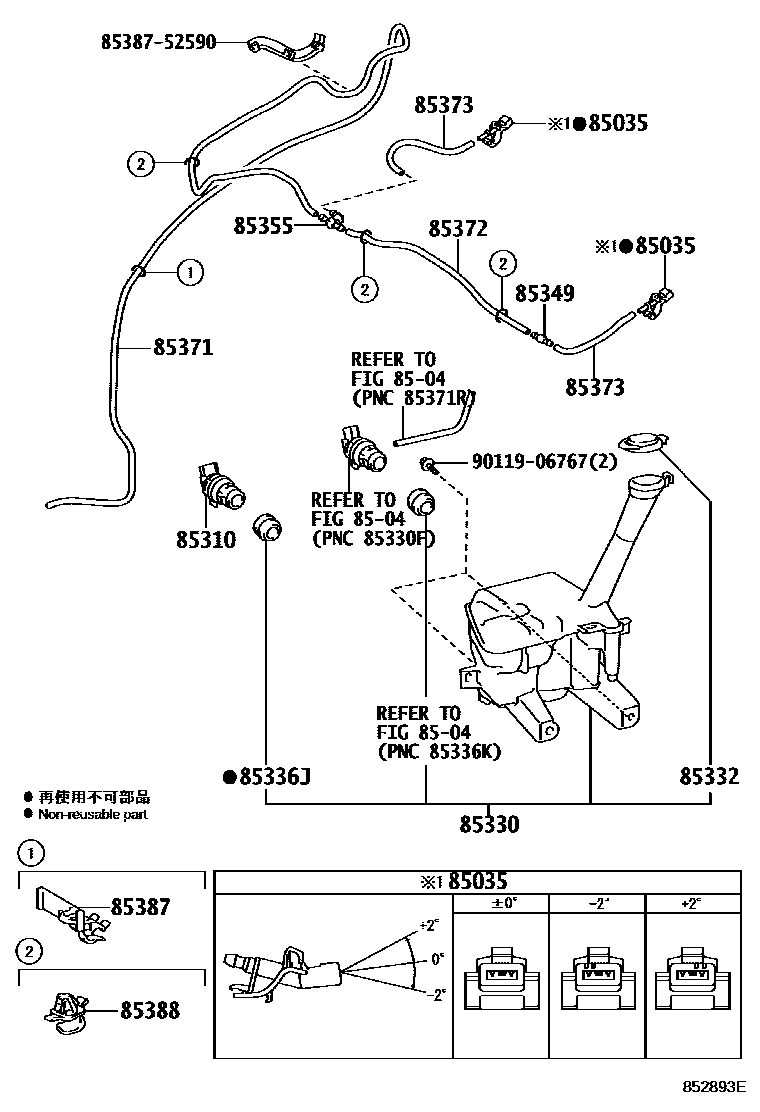

WINDSHIELD WASHER for Toyota SPADE

This section contains 15 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota SPADE. Key components include: NOZZLE SUB-ASSY, WASHER, REAR WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, CAP, WINDSHIELD WASHER JAR.
